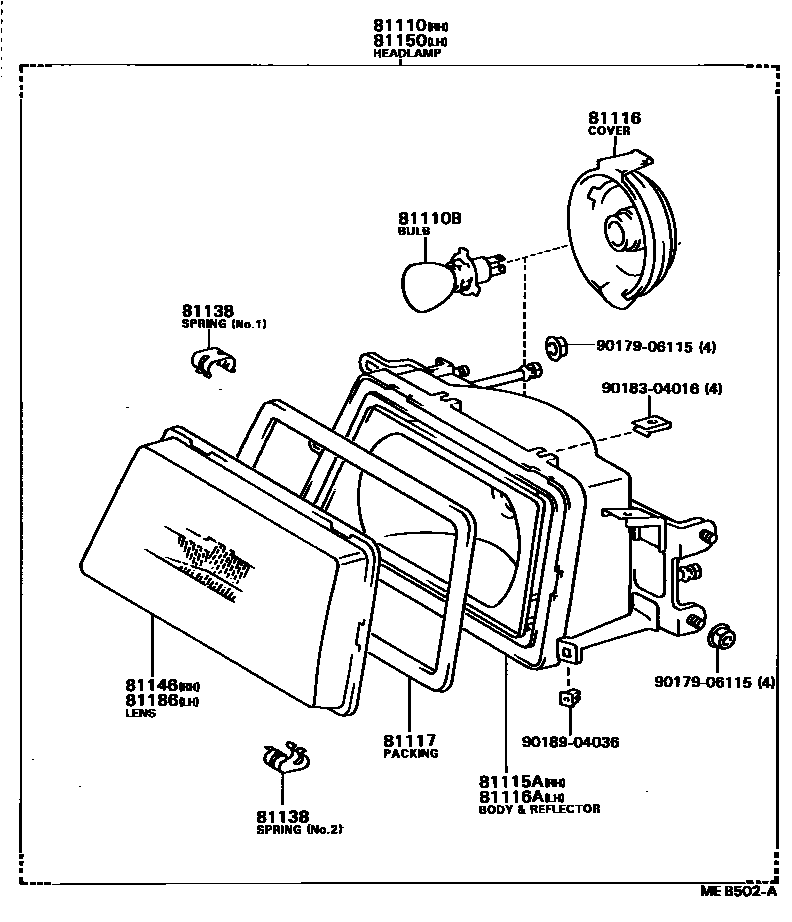

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-39865iCV10,SV1#..LT,XT198203-198406

main81110-39875iCV10,SV1#..CAM198203-198406

HALOGEN

main81110-39885iCV10,SV1#..VC,VL198203-198406

main81110-39895iCV10,SV1#..VIS198203-198406

HALOGEN

main81110-80394iCV1#,SV10..LT,VC,VL,XT198406-198607

main81110-80395iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iCV10,SV1#198203-198406

main90981-13022×2iCV1#,SV10..LT,VC,VL,XT198203-198607

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81105-32030iCV10,SV1#..VC,VL198203-198406

main81105-32040iCV10,SV1#..VIS198203-198406

HALOGEN

main81135-32010iCV10,SV1#..LT,XT198203-198406

main81135-32020iCV10,SV1#..CAM198203-198406

HALOGEN

81116COVER, SEALED BEAM UNIT

main81139-14880×2iCV10,SV1#..VIS198203-198406

main81139-30490×2iCV10,SV1#..CAM198203-198406

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81106-32030iCV10,SV1#..VC,VL198203-198406

main81106-32040iCV10,SV1#..VIS198203-198406

HALOGEN

main81175-32010iCV10,SV1#..LT,XT198203-198406

main81175-32020iCV10,SV1#..CAM198203-198406

HALOGEN

81117PACKING, HEADLAMP HOUSING

main81136-32030×2iCV10,SV1#..VIS198203-198406

main81147-32020×2iCV10,SV1#..CAM198203-198406

81138SPRING, HEADLAMP

main81138-14880×8iCV10,SV1#..VIS198203-198406

NO.1

main81138-20550×8iCV10,SV1#..CAM198203-198406

NO.1

main81138-24010×4iCV10,SV1#..CAM198203-198406

NO.2

main81138-32030×4iCV10,SV1#..VIS198203-198406

NO.2

81146LENS, HEADLAMP, RH

main81135-32030iCV10,SV1#..VIS198203-198406

main81146-32020iCV10,SV1#..CAM198203-198406

81150HEADLAMP ASSY, LH

main81150-39865iCV10,SV1#..LT,XT198203-198406

main81150-39875iCV10,SV1#..CAM198203-198406

HALOGEN

main81150-39885iCV10,SV1#..VC,VL198203-198406

main81150-39895iCV10,SV1#..VIS198203-198406

HALOGEN

main81150-80386iCV1#,SV10..LT,VC,VL,XT198406-198607

main81150-80387iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

HALOGEN

81186LENS, HEADLAMP, LH

main81176-32030iCV10,SV1#..VIS198203-198406

main81186-32020iCV10,SV1#..CAM198203-198406

9017906115

main90179-06115

9018304016

main90183-04016

9018904036

main90189-04036

13 parts on this diagram · 3 diagrams in section
