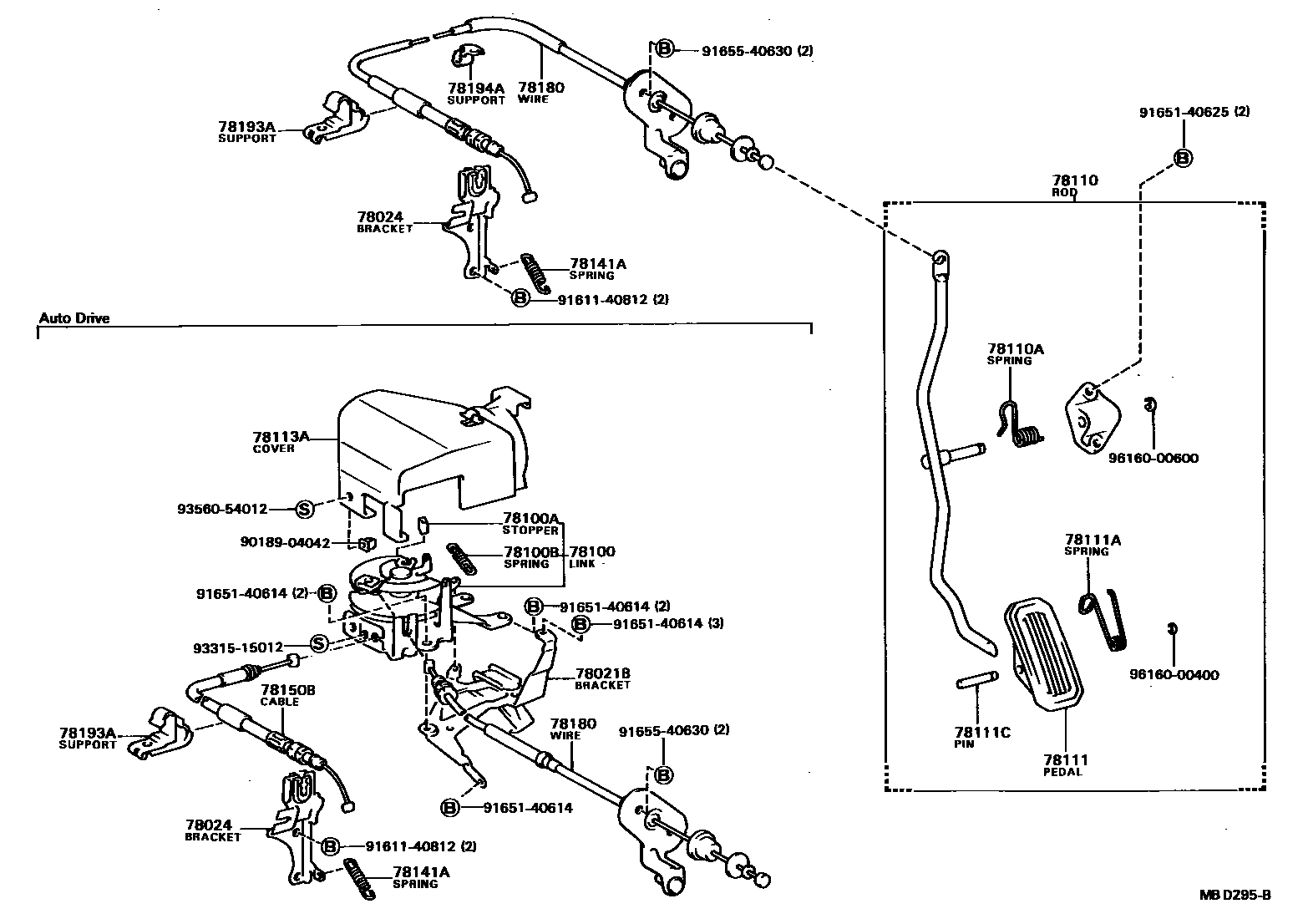

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78021BBRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK

main78021-32010iSV1#..VX,ZX198203-198406

main78021-32020iSV1#..VR,VX,ZE,ZX198406-198607

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20010iSV10198406-198607

main78024-32010iSV10198203-198406

main78024-32020iSV11198208-198607

main78024-32040iCV1#198308-198607

main78024-32060iSV12198406-198607

78100LINK ASSY, ACCELERATOR

main78100-32010iSV1#..VR,VX,ZE,ZX198203-198607

78100ASTOPPER, ACCELERATOR LINK

main78118-12010iSV1#..VR,VX,ZE,ZX198203-198607

78100BSPRING (FOR ACCELERATOR LINK)

main90506-08019iSV1#..VR,VX,ZE,ZX198203-198607

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32010iSV10198203-198607

main78120-32030iSV11,12..5F..(VX,ZX)198208-198607

W/AUTO DRIVE

main78120-32030iSV11..4FC198208-198607

main78120-32040iCV10;SV11..5F198208-198607

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV10;CV1#,SV11,12..4FC198203-198607

main90508-18025iSV11,12..5F..(VX,ZX)198208-198607

W/AUTO DRIVE

main90508-23069iCV1#,SV11,12..5F198208-198607

78111PEDAL, ACCELERATOR

main78111-12100iCV1#,SV1#198309-198607

main78111-32010iCV10,SV1#198203-198309

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iCV1#,SV1#198203-198607

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV1#,SV1#198203-198607

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-32010iSV1#..VR,VX,ZE,ZX198203-198607

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-12041iSV11..5F198208-198307

sub90507-11002

main90507-10005iSV10..5F198203-198310

main90507-10007iSV10..5F..(VX,ZX)198203-198406

W/AUTO DRIVE

main90507-10008iSV11..4FC198208-198307

sub90507-11002

main90507-10013iSV10..5F..(VR,ZE)198406-198607

W/AUTO DRIVE

main90507-10013iSV10..4FC198207-198607

main90507-11002iSV11198307-198607

main90507-11003iSV10..5F198310-198607

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-32010iSV10..VX,ZX198203-198406

main78150-32020iSV11..VX,ZX198208-198607

main78150-32040iSV10..VR,ZE198406-198607

main78150-32050iSV12..VX,ZX198406-198607

78180WIRE ASSY, ACCELERATOR

main78180-32010iSV10198203-198406

W/O AUTO DRIVE

main78180-32020iSV1#..VR,VX,ZE,ZX198203-198607

W/AUTO DRIVE

main78180-32040iSV11198208-198607

W/O AUTO DRIVE

main78180-32100iCV1#198308-198607

main78180-32130iSV10198406-198607

W/O AUTO DRIVE

main78180-32140iSV12198406-198607

W/O AUTO DRIVE

main78180-32150iCV11..5F198508-198607

COLD SPEC

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32010iSV10198203-198607

main78193-32040iSV12198406-198607

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-32010iSV10198203-198406

9018904042

main90189-04042

9161140812

main91611-40812

9165140614

main91651-40614

9165140625

main91651-40625

9165540630

main91655-40630

9331515012

main93315-15012

9356054012

main93560-54012

9616000400

main96160-00400

9616000600

main96160-00600

25 parts on this diagram · 5 diagrams in section
