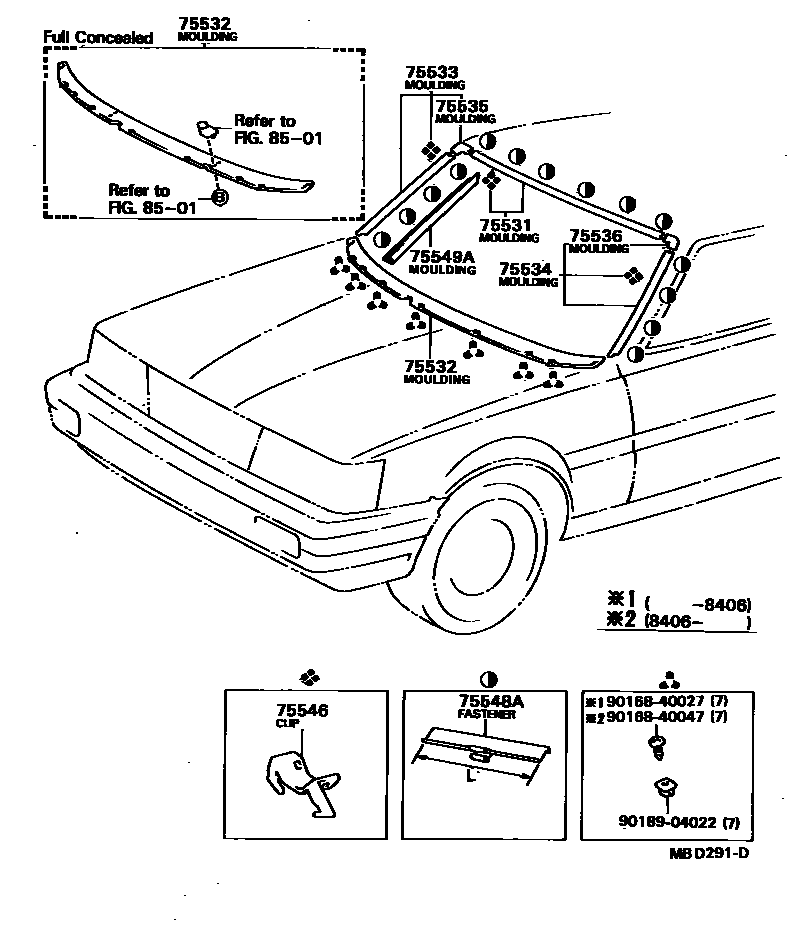

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-32010iCV1#,SV1#..4D198203-198607

main75531-32020iCV1#,SV1#..5D198208-198607

75532MOULDING, WINDSHIELD, LOWER

main75535-32010iCV10,SV1#..LT,VC,VL,XT198203-198406

main75535-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main75535-32050iCV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT198406-198607

main75535-32060iSV1#..VR,VX,ZE,ZX198406-198607

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-32010iCV1#,SV1#..4D198203-198607

main75533-32020iCV1#,SV1#..5D198208-198607

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-32010iCV1#,SV1#..4D198203-198607

main75534-32020iCV1#,SV1#..5D198208-198607

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-32010iCV1#,SV1#..4D198203-198607

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-32010iCV1#,SV1#..4D198203-198607

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75545-32010×6iCV1#,SV1#198203-198607

SIDE

main75546-32010×5iCV1#,SV1#198203-198607

UPR

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22060×10iCV1#,SV1#198409-198607

L=40

main75548-32010×14iCV10,SV1#198203-198407

L=70

75549AMOULDING, WINDSHIELD OUTSIDE SUB

main75549-32010iCV1#,SV1#198308-198607

COLD SPEC

8501WINDSHIELD WIPER

→ Go to FIG 85-01

9016840027

main90168-40027

9016840047

main90168-40047

9018904022

main90189-04022

13 parts on this diagram · 1 diagram in section
