BACK DOOR LOCK & HANDLE

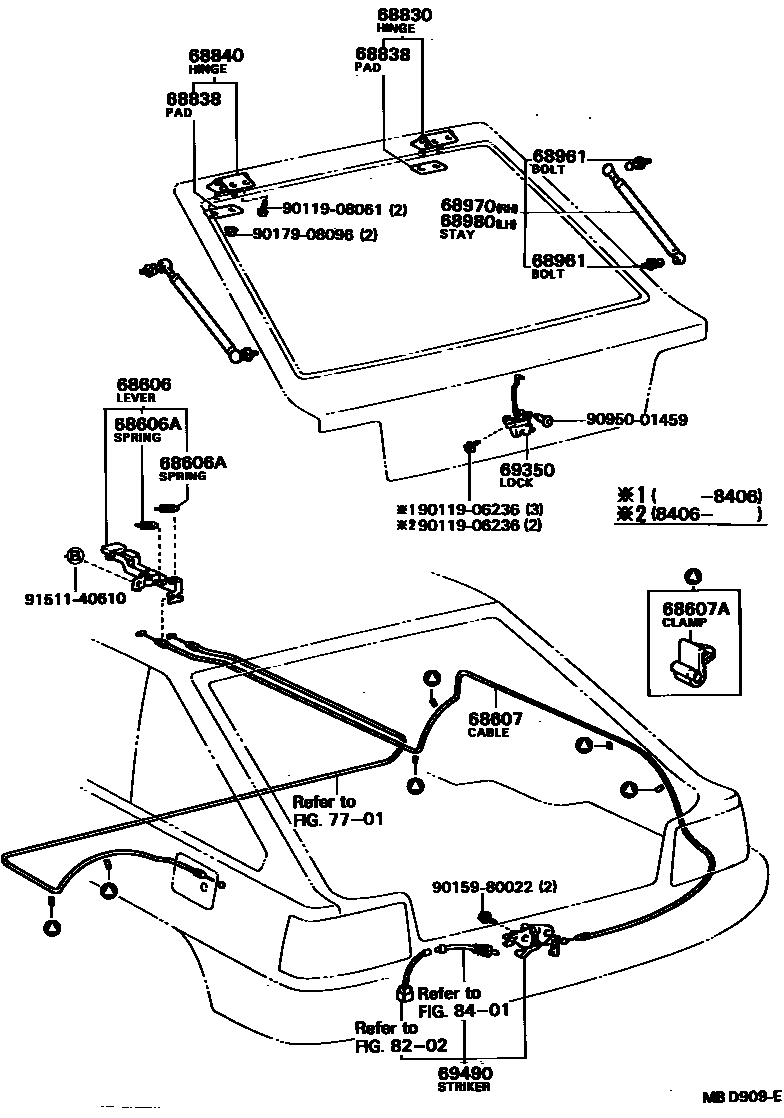

Parts diagram

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-32010i198208-198607

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004i198208-198607

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-32050i198208-198607

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010i198208-198607

68830HINGE ASSY, BACK DOOR, RH

main68801-16010i198208-198408

main68801-32010i198408-198607

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021i198208-198607

68840HINGE ASSY, BACK DOOR, LH

main68801-16010i198208-198408

main68801-32010i198408-198607

68961BOLT, BACK DOOR STAY

main68961-32010i198208-198503

main68961-32020i198503-198607

68970STAY ASSY, BACK DOOR, RH

main68950-39065i198208-198406

main68950-39115i198510-198607

W/O SPOILER,TOKIKO

main68950-39125i198406-198510

W/O SPOILER

main68950-39125i198510-198607

COLD SPEC,W/O SPOILER,KAYABA

main68950-39135i198406-198607

W/SPOILER

68980STAY ASSY, BACK DOOR

main68950-39065i198208-198406

main68950-39115i198510-198607

W/O SPOILER,TOKIKO

main68950-39125i198406-198510

W/O SPOILER

main68950-39125i198510-198607

COLD SPEC,W/O SPOILER,KAYABA

main68950-39135i198406-198607

W/SPOILER

69350LOCK ASSY, BACK DOOR

main69350-32010i198208-198406

AISHIN

main69350-32020i198208-198406

SHIROKI

main69350-32030i198406-198607

69490STRIKER ASSY, BACK DOOR LOCK

main69430-32030i198208-198406

AISHIN

main69430-32040i198208-198406

SHIROKI

main69430-32060i198406-198607

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906236

main90119-06236

9011908061

main90119-08061

9015980022

main90159-80022

9017908096

main90179-08096

9095001459

main90950-01459

9151140610

main91511-40610

21 parts on this diagram · 1 diagram in section
