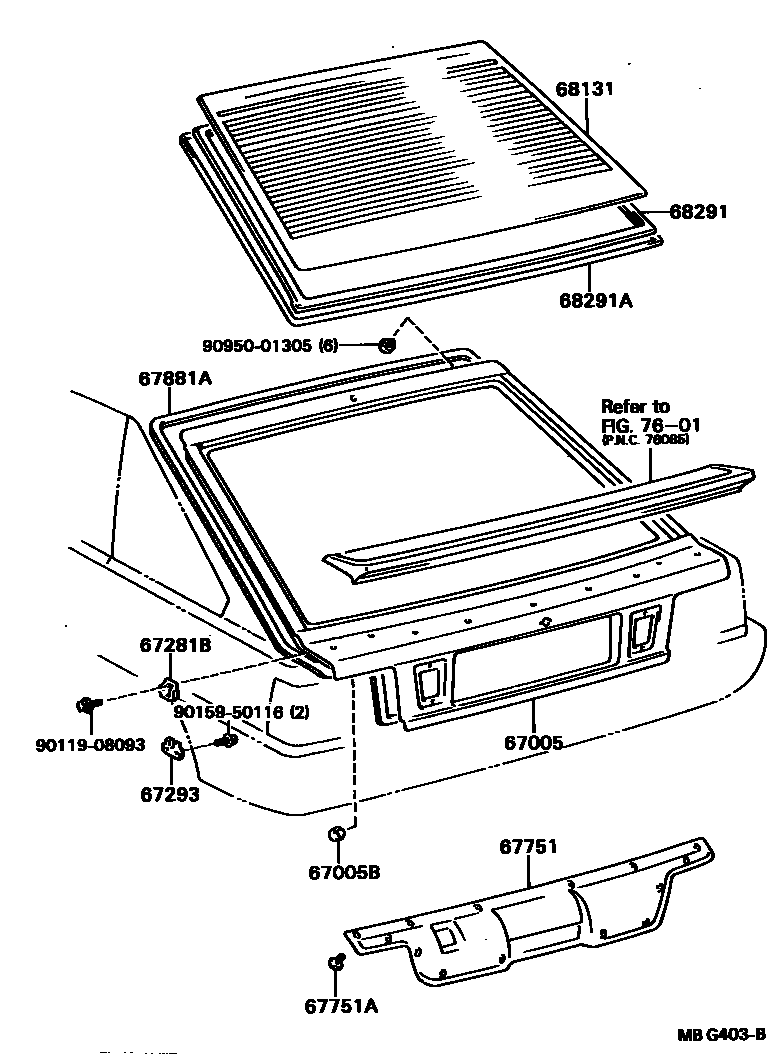

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-32010iSV10..5D198208-198406

main67005-32020iCV10,SV11..5D198208-198406

main67005-32150iSV1#..5D..(VF,VR,VS,VX)198406-198607

W/SPOILER

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041×4iCV1#,SV1#..5D198208-198607

67281BSTOPPER, BACK DOOR, LOWER

main67281-32010×2iCV1#,SV1#..5D198208-198607

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-32010×2iCV1#,SV1#..5D198208-198607

67751BOARD, BACK DOOR TRIM

main64781-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

main64781-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198406-198607

BLUE,BLUE,TRIM8#

main64781-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

main64781-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

main64781-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06017-14×14iCV10,SV1#..5D198208-198406

BLUE,BLUE,TRIM8#

main90467-06017-23×14iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

main90467-06017-26×14iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

main90467-06017-53×14iCV1#,SV1#..5D198406-198607

SHADOW GRAY,GRAY,TRIM1#

main90467-06017-55×14iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-32010iCV1#,SV1#..5D198208-198607

68131GLASS, BACK DOOR

main68131-32010iCV1#,SV1#..5D..(VF,VL,VS)198208-198607

*EHTT,T=4.0

main68131-32020iSV10..5D..(VE,VR,VX);CV10,SV11,12..5D..(VF,VX)198208-198607

*EHTT,T=4.0

main68131-32030iSV1#..5D..VX198208-198508

BRONZE,*EHTT,T=4.0

main68131-32050iSV10..5D..VF198505-198607

VF-2,BRONZE,*EHTT,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-32010iCV1#,SV1#..5D198208-198607

68291ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-32020iCV1#,SV1#..5D198208-198607

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011908093

main90119-08093

9015950116

main90159-50116

9095001305

main90950-01305

14 parts on this diagram · 1 diagram in section
