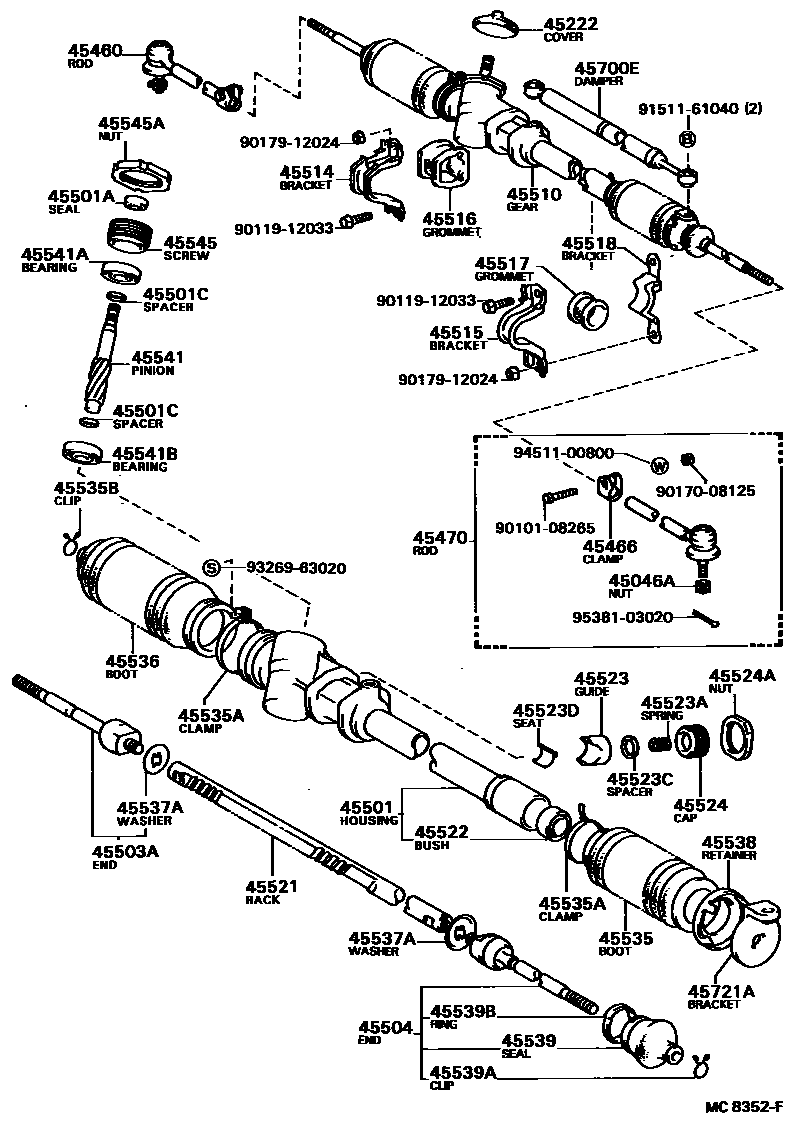

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0006 1

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCV1#,SV1#198203-198607

45222COVER, STEERING GEAR DUST

main45222-20010iSV10..LT,VC198203-198607

45460ROD ASSY, TIE, RH

main45460-39165iCV1#,SV1#198203-198607

45466CLAMP, TIE ROD END

main45466-22010iCV1#,SV1#198203-198607

45470ROD ASSY, TIE, LH

main45460-39165iCV1#,SV1#198203-198607

45501HOUSING SUB-ASSY, STEERING RACK

main45501-32020iSV10..LT,VC198203-198607

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iSV10..LT,VC198203-198607

sub90311-15002

45501CSPACER(FOR STEERING RACK HOUSING)

main90560-15005iSV10..LT,VC198203-198607

45503AEND SUB-ASSY, STEERING RACK, NO.1

main45503-39015iSV10..LT,VC198203-198607

sub45503-19085

45504END SUB-ASSY, STEERING RACK, NO.2

main45504-32010iSV10..LT,VC198203-198607

45510GEAR ASSY, STEERING

main45510-32020iSV10..LT,VC198203-198607

45514BRACKET, STEERING RACK HOUSING, NO.1

main45505-32010iCV10,SV1#198203-198406

main45505-32020iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

main45505-32030iSV10..LT,VC198406-198607

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32010iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

main45515-32020iSV10..LT,VC198203-198406

main45515-32050iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

main45515-32060iSV10..LT,VC198406-198607

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32010iCV1#,SV1#198203-198607

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32010iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

main45517-32020iSV10..LT,VC198203-198607

main45517-32040iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-32010iSV10..LT,VC198203-198406

main45518-32030iSV10..LT,VC198406-198607

45521RACK, STEERING

main45521-32020iSV10..LT,VC198203-198607

45522BUSH, STEERING RACK

main45522-22010iSV10..LT,VC198203-198607

sub45522-22011

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-20010iSV10..LT,VC198203-198209

main45523-20011iSV10..LT,VC198209-198607

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-26020iSV10..LT,VC198203-198209

main90501-29007iSV10..LT,VC198209-198607

45523CSPACER(FOR RACK GUIDE)

main90560-23007iSV10..LT,VC198203-198607

45523DSEAT, RACK GUIDE

main44277-20030iSV10..LT,VC198209-198607

45524CAP, STEERING RACK GUIDE SPRING

main45524-20010iSV10..LT,VC198203-198209

main45524-20011iSV10..LT,VC198209-198607

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iSV10..LT,VC198203-198607

45535BOOT, STEERING RACK, NO.1

main45535-32010iSV10..LT,VC198203-198607

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10524iSV10..LT,VC198203-198607

RH

main90949-01021iSV10..LT,VC198203-198607

LH

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iSV10..LT,VC198203-198607

45536BOOT, STEERING RACK, NO.2

main45536-14020iSV10..LT,VC198203-198607

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iSV10..LT,VC198203-198607

RH

main90214-14004iSV10..LT,VC198203-198607

LH

45538RETAINER, STEERING RACK BOOT

main45538-32010iSV10..LT,VC198203-198607

45539GUIDE, REAR STEERING CONTROL CABLE, NO.1

main45539-32020iSV10..LT,VC198203-198607

45539ACLIP(FOR RACK END DUST SEAL)

main90467-18003iSV10..LT,VC198203-198607

45539BRING, SET(FOR RACK END DUST SEAL)

main90522-32011iSV10..LT,VC198203-198607

45541PINION, STEERING

main45541-32020iSV10..LT,VC198203-198607

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15006iSV10..LT,VC198203-198607

UPR

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-15005iSV10..LT,VC198203-198607

LWR

45545SCREW, PINION BEARING ADJUSTING

main45545-20010iSV10..LT,VC198203-198607

sub45545-22020

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-42001iSV10..LT,VC198203-198607

45700EDAMPER ASSY, STEERING

main45700-32010iSV10..LT,VC198203-198607

45721ABRACKET, STEERING DAMPER, NO.2

main45721-32010iSV10..LT,VC198203-198607

9010108265

main90101-08265

9011912033

main90119-12033

9017008125

main90170-08125

9017912024

main90179-12024

9151161040

main91511-61040

9326963020

main93269-63020

9451100800

main94511-00800

9538103020

main95381-03020

48 parts on this diagram · 5 diagrams in section
