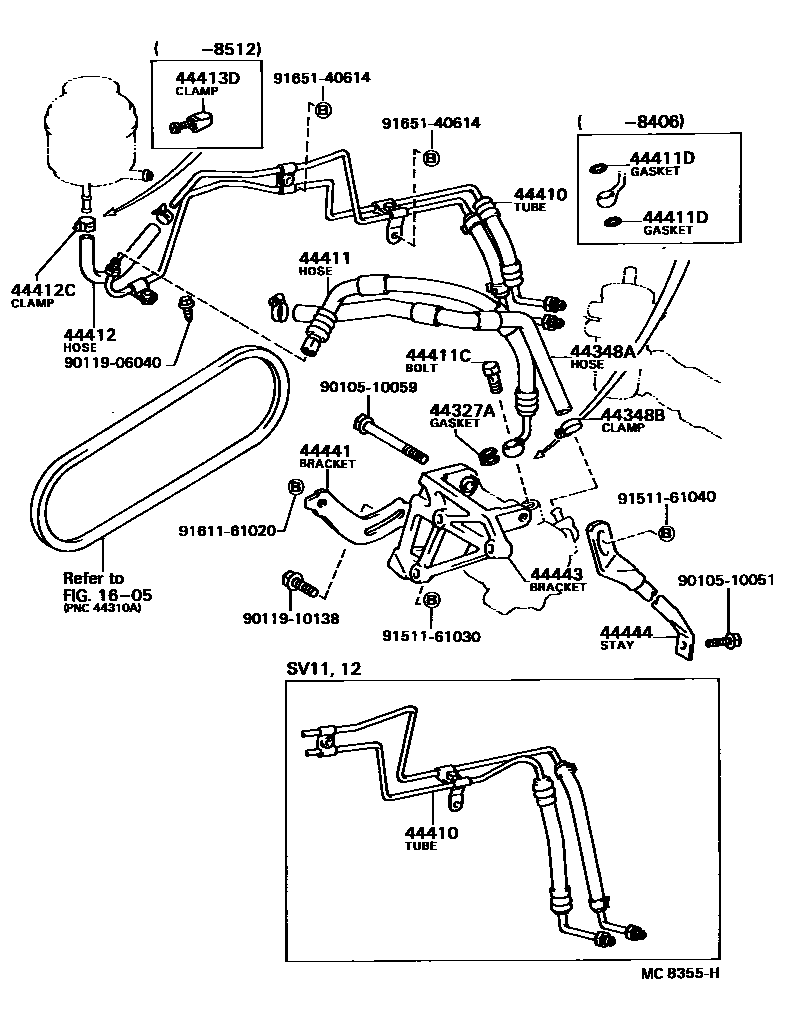

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32010iSV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

main44348-32020iCV1#198308-198607

main44348-32030iSV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iCV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198607

44410TUBE ASSY, PRESSURE FEED

main44410-32010iSV10..SE,VE,VL,VR,VX,XE,XT,ZE,ZX198203-198508

main44410-32020iSV11,12198208-198607

main44410-32040iCV1#198308-198607

44411HOSE, PRESSURE FEED

main44411-32010iSV10,11..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX198203-198607

main44411-32020iSV12198406-198607

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16004iSV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198210

sub90401-16027

main90401-16005iSV10,11..SE,VE,VF,VL,VR,VX,XE,XT,ZE,ZX198210-198408

sub90401-16008

main90401-16008iSV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198408-198607

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242iSV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

44412HOSE, RETURN

main44412-32010iSV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198607

sub90445-18137

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iCV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198512-198607

sub90467-16019

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iSV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198512

44441BRACKET, PUMP, FRONT

main44441-32010iSV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198607

44443BRACKET, PUMP

main44443-32010iSV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198607

44444STAY, PUMP, REAR

main44444-32010iSV12198406-198607

9010510051

main90105-10051

9010510059

main90105-10059

9011906040

main90119-06040

9011910138

main90119-10138

9151161030

main91511-61030

9151161040

main91511-61040

9161161020

main91611-61020

9165140614

main91651-40614

22 parts on this diagram · 2 diagrams in section
