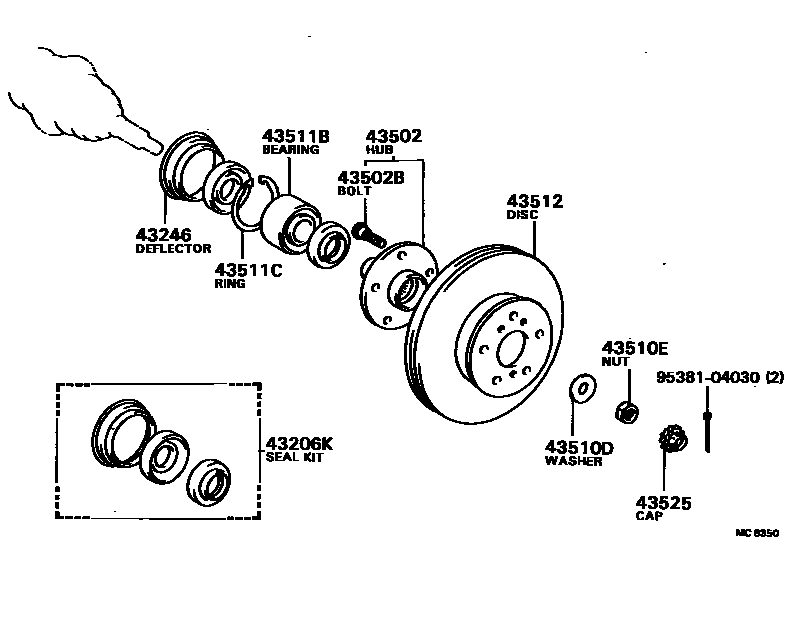

FRONT AXLE HUB

43206KSEAL KIT, FRONT AXLE OIL

main04422-32010×2iCV1#,SV1#198203-198607

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011×2iCV1#,SV1#198203-198607

43502HUB SUB-ASSY, FRONT AXLE

main43502-20040×2iCV11,SV1#198603-198607

main43502-32010×2iCV1#,SV1#198203-198603

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×10iCV1#,SV1#198203-198607

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20006×2iCV10,SV1#198203-198405

main90201-20012×2iCV1#,SV1#198405-198607

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001×2iCV1#,SV1#198203-198607

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003×2iCV1#,SV1#198203-198607

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002×2iCV1#,SV1#198203-198607

43512DISC, FRONT

main43512-32010×2iCV10,SV1#198203-198405

main43512-32030×2iSV11..5F;CV1#,SV10198405-198607

main43512-32040×2iSV12;SV11..4FC198406-198601

main43512-32110×2iSV12;SV11..4FC198601-198607

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2iCV1#,SV1#198203-198607

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
