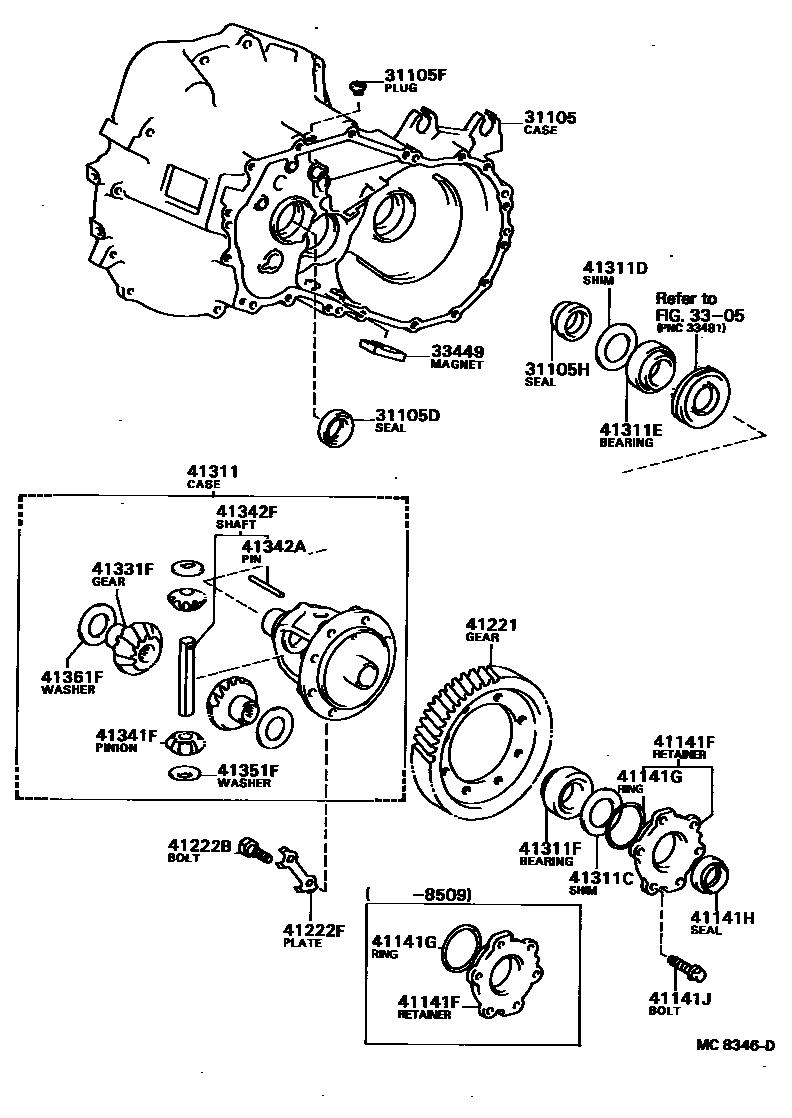

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32011iCV10,SV1#..5F198203-198404

sub31105-32030

sub11355-63021

sub11355-64032

sub11356-63030

sub11356-64010

sub91621-60610

sub91651-61022

main31105-32012iCV10,SV1#..5F198404-198507

sub31105-32013

main31105-32013iCV1#,SV1#..5F198507-198607

sub31105-32040

sub11355-63021

sub11355-64032

sub11356-63030

sub11356-64010

sub91621-60610

sub91651-61022

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-30002iCV1#,SV1#..5F198301-198607

INPUT SHAFT

sub90311-30006

main90311-30005iSV1#..5F198203-198301

INPUT SHAFT

sub90311-30002

31105FPLUG(FOR TRANSAXLE CASE)

main90341-10065iCV1#,SV1#..5F198203-198607

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-35007iCV10,SV1#..5F198203-198310

DRIVE SHAFT

main90311-35014iCV1#,SV1#..5F198310-198607

DRIVE SHAFT

sub90311-35026

3305

33449MAGNET, TRANSMISSION

main33449-32010iCV1#,SV1#..5F198203-198607

sub33449-32020

41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING

main41101-32010iCV11,SV1#..5F198509-198607

sub41101-32011

sub90311-35048

main41141-32010iCV1#,SV1#..5F198203-198509

main41141-32020iCV1#,SV1#..4FC198207-198607

sub41141-32040

41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90301-63004iCV1#,SV1#..5F198203-198607

main90301-99018iCV1#,SV1#..4FC198207-198607

41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

main90311-35007iCV10,SV1#..5F198203-198310

main90311-35010iCV1#,SV1#..4FC198207-198607

sub90311-35019

main90311-35014iCV1#,SV1#..5F198310-198607

sub90311-35026

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08061iCV1#,SV1#..5F198203-198607

sub91511-C0825

main91611-60825iCV1#,SV1#..4FC198207-198607

sub91611-B0825

41221GEAR, FRONT DIFFERENTIAL RING

main41221-32010iSV11..4FC198208-198607

main41221-32020iSV10,11..5F198203-198607

main41221-32030iSV10,12..4FC198207-198607

main41221-32040iCV1#198308-198607

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iCV1#,SV1#198304-198607

main90101-11353iSV1#198203-198304

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010iCV1#,SV1#198203-198607

41311CASE, FRONT DIFFERENTIAL

main41301-32010iCV1#,SV1#..5F198203-198607

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iCV1#,SV1#..4FC198207-198607

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-45001iCV1#,SV1#..5F198203-198607

main90564-45002iCV1#,SV1#..5F198203-198607

main90564-45003iCV1#,SV1#..5F198203-198607

main90564-45004iCV1#,SV1#..5F198203-198607

main90564-45005iCV1#,SV1#..5F198203-198607

main90564-45006iCV1#,SV1#..5F198203-198607

main90564-45007iCV1#,SV1#..5F198203-198607

main90564-45008iCV1#,SV1#..5F198203-198607

main90564-45009iCV1#,SV1#..5F198203-198607

main90564-45010iCV1#,SV1#..5F198203-198607

main90564-45011iCV1#,SV1#..5F198203-198607

main90564-45011iCV1#,SV1#..4FC198207-198607

main90564-45012iCV1#,SV1#..5F198203-198607

main90564-45013iCV1#,SV1#..5F198203-198607

main90564-45014iCV1#,SV1#..5F198203-198607

main90564-45015iCV1#,SV1#..5F198203-198607

main90564-45016iCV1#,SV1#..5F198203-198607

main90564-45017iCV1#,SV1#..5F198203-198607

main90564-45018iCV1#,SV1#..5F198203-198607

main90564-45019iCV1#,SV1#..5F198203-198607

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90564-45001iCV1#,SV1#..4FC198207-198607

main90564-45002iCV1#,SV1#..4FC198207-198607

main90564-45003iCV1#,SV1#..4FC198207-198607

main90564-45004iCV1#,SV1#..4FC198207-198607

main90564-45005iCV1#,SV1#..4FC198207-198607

main90564-45006iCV1#,SV1#..4FC198207-198607

main90564-45007iCV1#,SV1#..4FC198207-198607

main90564-45008iCV1#,SV1#..4FC198207-198607

main90564-45009iCV1#,SV1#..4FC198207-198607

main90564-45010iCV1#,SV1#..4FC198207-198607

main90564-45011iCV1#,SV1#..5F198203-198607

main90564-45011iCV1#,SV1#..4FC198207-198607

main90564-45012iCV1#,SV1#..4FC198207-198607

main90564-45013iCV1#,SV1#..4FC198207-198607

main90564-45014iCV1#,SV1#..4FC198207-198607

main90564-45015iCV1#,SV1#..4FC198207-198607

main90564-45016iCV1#,SV1#..4FC198207-198607

main90564-45017iCV1#,SV1#..4FC198207-198607

main90564-45018iCV1#,SV1#..4FC198207-198607

main90564-45019iCV1#,SV1#..4FC198207-198607

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iCV1#,SV1#..5F198406-198607

main90368-40003iCV10,SV1#198203-198508

sub90368-40002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iCV11,SV1#..4FC198406-198607

sub90366-40064

main90368-40003iCV10,SV1#198203-198508

sub90368-40002

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-32010iCV1#,SV1#198203-198607

41341FPINION, FRONT DIFFERENTIAL

main41341-30011iCV1#,SV1#198203-198607

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iCV1#,SV1#198203-198607

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-39025iCV1#,SV1#198203-198607

sub41342-32010

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010iCV1#,SV1#198203-198607

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCV1#,SV1#198203-198607

main41361-22030iCV1#,SV1#198203-198607

main41361-22040iCV1#,SV1#198203-198607

main41361-22140iCV1#,SV1#198203-198607

main41361-22150iCV1#,SV1#198203-198607

main41361-22160iCV1#,SV1#198203-198607

24 parts on this diagram · 2 diagrams in section
