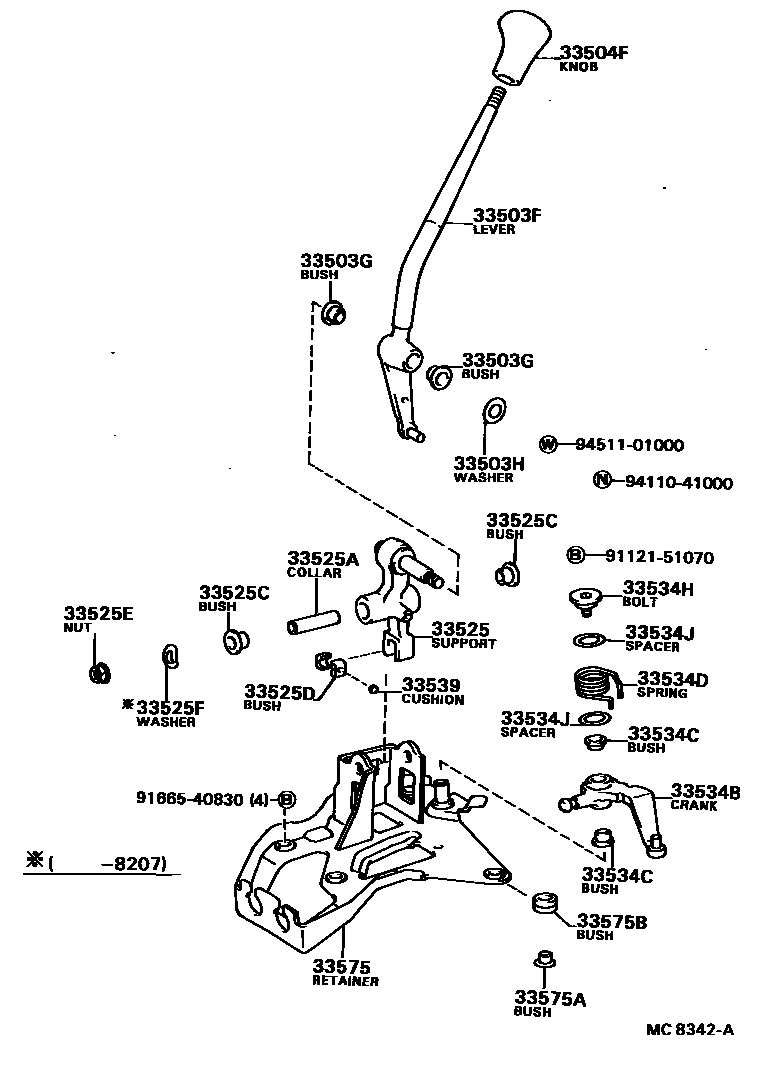

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12280iCV1#,SV1#..4FC198406-198607

main33503-32010iCV1#,SV1#..5F198203-198607

main33503-32020iCV10,SV10..4FC198207-198406

main33503-32050iSV11..4FC198208-198406

33503GBUSH(FOR SHIFT LEVER)

main90386-14005iSV10198203-198207

sub90389-14011

main90389-14011iCV1#,SV1#..5F198207-198607

33503HWASHER, PLATE(FOR SHIFT LEVER SUB-ASSY)

main90201-10180iCV1#,SV1#..5F198203-198607

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-03iSV12..5F..(VS,XS)198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub33504-12150

sub33504-22140

main33504-14050-15iCV1#,SV10..5F..(LT,VC,VL,XT)198408-198607

BEIGE,BEIGE,TRIM4#

sub33504-14050

sub33504-14070

main33504-14050-23iCV10,SV1#..5F..(LT,VC,VL,XT)198305-198406

DARK GRAY,GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14070-01iSV1#..5F..(LT,VC,VL,XT)198203-198305

BLACK,BLACK,TRIM1#,8#

sub33504-14070

sub33504-14050

main33504-14070-04iCV1#,SV10,11..5F..(LT,VC,VL,XT)198305-198607

BLUE,BLUE,TRIM8#

sub33504-14070

sub33504-14050

main33504-14070-06iCV10,SV1#..5F..(LT,VC,VL,XT)198305-198406

DARK BROWN,BROWN,TRIM4#

sub33504-14070

sub33504-14050

main33504-14070-13iCV1#,SV10..5F..(LT,VC,VL,XT)198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-14070-26iSV1#..5F..(LT,VC,VL,XT)198203-198305

DEEP BROWN,BROWN,TRIM4#

sub33504-14070

sub33504-14050

main33504-24010-01iSV1#..4D..5F..VL198210-198303

BLACK,EXTRA,BLACK,TRIM1#,8#

sub33504-24010

main33504-24010-01iSV1#..5F..(SE,VE,VF,VX,XE,ZX)198203-198305

BLACK,BLACK,TRIM1#,8#

sub33504-24010

main33504-24010-04iCV1#,SV1#..5F..(SE,VE,VF,VR,VX,XE,ZE,ZX)198305-198603

BLUE,BLUE,TRIM8#

sub33504-24010

main33504-24010-04iCV1#,SV10..5F..(VL,XT)198406-198607

BLUE,SALOON OR EXTRA,BLUE,TRIM8#

sub33504-24010

main33504-24010-04iCV10..VL198308-198406

BLUE,EXTRA,BLUE,TRIM8#

sub33504-24010

main33504-24010-06iCV10,SV1#..5F..(SE,VE,VF,VX,XE,ZX)198305-198406

DARK BROWN,BROWN,TRIM4#

sub33504-24010

main33504-24010-25iCV1#,SV1#..5F..(VF,VR,VX,XE,ZE,ZX)198408-198607

BEIGE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-25iCV1#,SV1#..5F..(VF,VR,VX,XE,ZE,ZX)198408-198607

BEIGE,SALOON OR EXTRA,BEIGE,TRIM4#

sub33504-24010

main33504-24010-26iSV1#..5F..(SE,VE,VF,VX,XE,ZX)198203-198305

DEEP BROWN,BROWN,TRIM4#

sub33504-24010

main33504-24010-30iCV11,SV1#..5F..(VF,VR,VX,XE,ZE,ZX)198603-198607

BLUE,BLUE,TRIM8#

sub33504-24010

main33504-24010-33iCV1#,SV1#..5F..(VF,VR,VX,XE,ZE,ZX)198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub33504-24010

main33504-24010-33iCV1#,SV1#..5F..(VF,VR,VX,XT)198406-198602

SHADOW GRAY,SALOON OR EXTRA,GRAY,TRIM1#

sub33504-24010

main33504-24010-43iCV10,SV1#..5F..(SE,VE,VF,VX,XE,ZX)198305-198406

DARK GRAY,GRAY,TRIM1#

sub33504-24010

main33542-24030-01iSV11..4FC198208-198305

BLACK,BLACK,TRIM1#,8#

sub33542-24030

main33542-24030-04iSV11..4FC198305-198406

BLUE,BLUE,TRIM8#

sub33542-24030

main33542-24030-06iSV11..4FC198305-198406

DARK BROWN,BROWN,TRIM4#

sub33542-24030

main33542-24030-26iSV11..4FC198208-198305

DEEP BROWN,BROWN,TRIM4#

sub33542-24030

main33542-24030-43iSV11..4FC198305-198406

DARK GRAY,GRAY,TRIM1#

sub33542-24030

main33542-32010-01iSV10..4FC198207-198305

BLACK,BLACK,TRIM1#,8#

sub33542-32010

main33542-32010-04iCV10,SV10..4FC198305-198406

BLUE,BLUE,TRIM8#

sub33542-32010

main33542-32010-06iSV10..4FC198207-198305

DEEP BROWN,BROWN,TRIM4#

sub33542-32010

main33542-32010-13iCV10,SV10..4FC198305-198406

DARK GRAY,GRAY,TRIM1#

sub33542-32010

main33542-32010-16iCV10,SV10..4FC198305-198406

DARK BROWN,BROWN,TRIM4#

sub33542-32010

main33542-32040-03iCV1#,SV1#..4FC198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub33542-32040

main33542-32040-04iCV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX)198406-198607

BLUE,BLUE,TRIM8#

sub33542-32040

main33542-32040-05iCV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX)198408-198607

BEIGE,BEIGE,TRIM4#

sub33542-32040

33525SUPPORT, SHIFT LEVER

main33525-32010iCV1#,SV1#..5F198203-198607

33525ACOLLAR (FOR SHIFT LEVER SUPPORT)

main90387-10047iCV1#,SV1#..5F198203-198607

33525CBUSH, NO.1 (FOR SHIFT LEVER SUPPORT)

main90386-14005iSV10198203-198207

sub90389-14011

main90389-14011iCV1#,SV1#..5F198207-198607

33525DBUSH, NO.2 (FOR SHIFT LEVER SUPPORT)

main90389-10007iCV1#,SV1#..5F198203-198607

33525ENUT (FOR SHIFT LEVER SUPPORT)

main90179-10043iCV1#,SV1#..5F198203-198607

33525FWASHER, WAVE (FOR SHIFT LEVER SUPPORT)

main90206-14083iSV10198203-198207

33534BCRANK, SELECTING BELL, NO.1

main33534-32010iCV1#,SV1#..5F198203-198607

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013iCV1#,SV1#..5F198203-198607

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-26044iCV1#,SV1#..5F198203-198607

33534HBOLT (FOR SELECTING BELLCRANK NO.1)

main90109-08057iCV1#,SV1#..5F198203-198607

33534JSPACER (FOR SELECTING BELLCRNK NO.1)

main90560-23008iCV1#,SV1#..5F198203-198607

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-32010iCV1#,SV1#..5F198203-198607

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-32010iCV1#,SV1#..5F198203-198607

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031iCV1#,SV1#..5F198203-198607

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10010iCV1#,SV1#..5F198203-198607

9112151070

main91121-51070

9166540830

main91665-40830

9411041000

main94110-41000

9451101000

main94511-01000

23 parts on this diagram · 7 diagrams in section
