TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

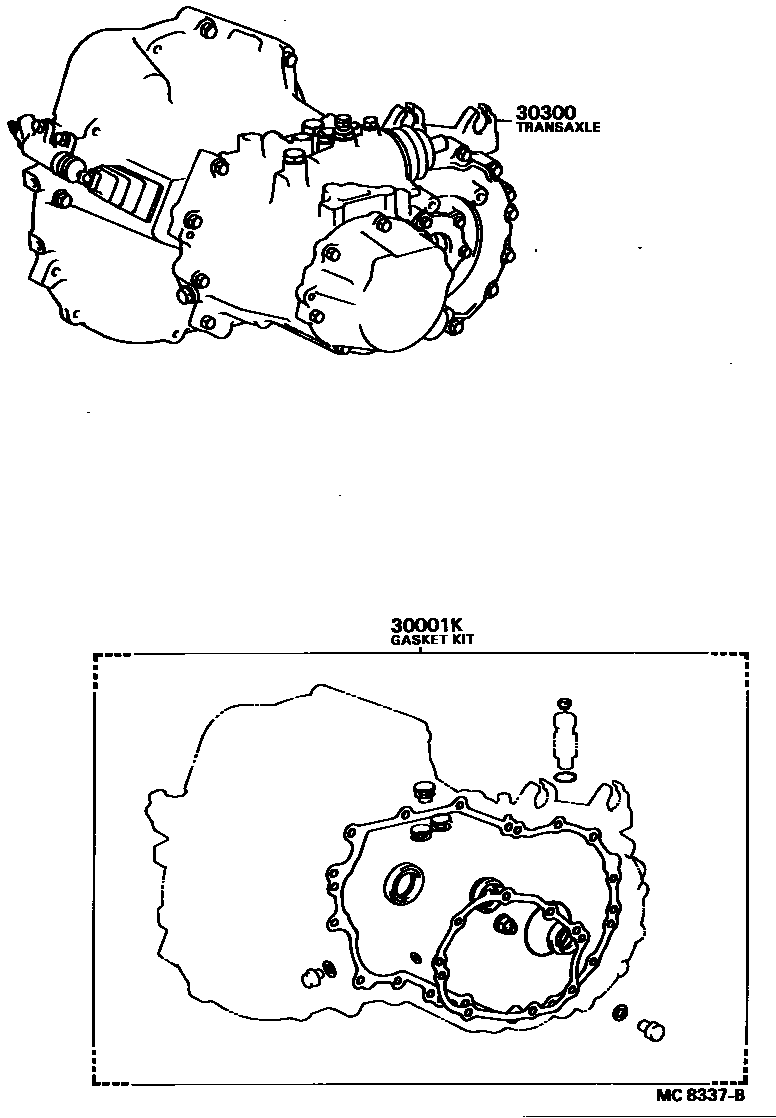

Parts diagram

30001KGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-32010i198203-198607

30300TRANSAXLE ASSY, MANUAL

main30300-20130i198406-198607

main30300-32010i198208-198406

main30300-32020i198203-198406

main30300-32050i198308-198406

main30300-32080i198406-198607

main30300-32090i198406-198607

main30300-32100i198406-198508

main30300-32130i198508-198607

2 parts on this diagram · 1 diagram in section
