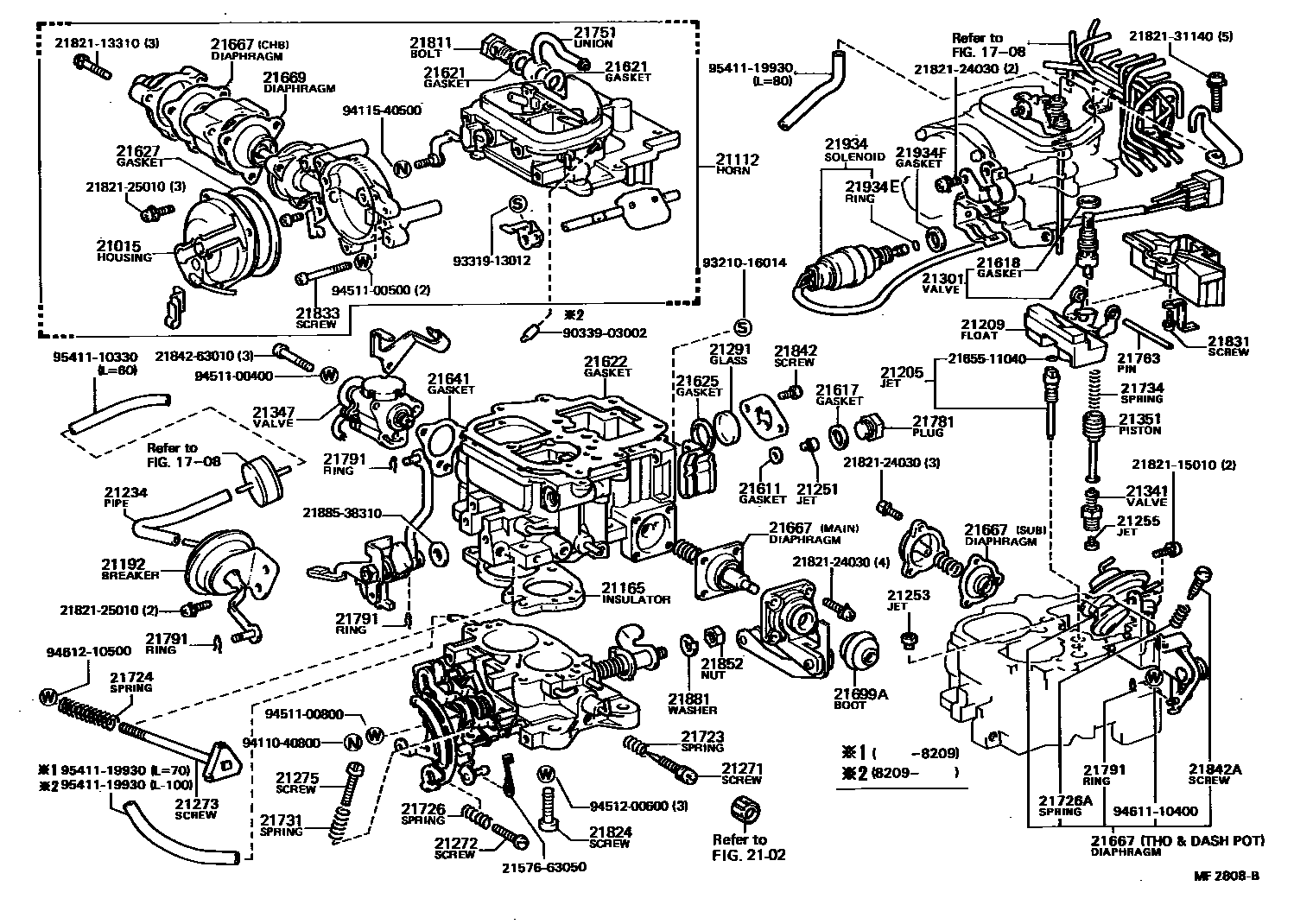

CARBURETOR
1708
21015HOUSING SUB-ASSY, COIL
2102
21165INSULATOR
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21234PIPE OR HOSE
sub90999-92002
21251JET, 1ST MAIN
ID=1.13
21253JET, 2ND MAIN
21255JET, POWER
ID=0.44
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21341VALVE, POWER
21351PISTON, POWER
21611GASKET, MAIN JET
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21667DIAPHRAGM
*CHB
*THO & DASHPOT
21669DIAPHRAGM
sub21669-73370
21699ABOOT(FOR ACCELERATION PUMP)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21726ASPRING, THROTTLE OPENER & DASH POT ADJUSTING
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21734SPRING, POWER PISTON
21751UNION, NIPPLE
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21831SCREW, POWER PISTON STOP
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842ASCREW, THROTTLE OPENER & DASH POT ADJUSTING
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2157663050CLIP, PUMP STRAINER
main21576-63050
2165511040RING, O(FOR LIFTER ROD)
main21655-11040
2182113310SCREW, 2ND THROTTLE VALVE SET
main21821-13310
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2184263010SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-63010
2188538310
main21885-38310
9033903002
main90339-03002
9321016014
main93210-16014
9331913012
main93319-13012
9411040800
main94110-40800
9411540500
main94115-40500
9451100400
main94511-00400
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110400
main94611-10400
9461210500
main94612-10500
9541110330
main95411-10330
9541119930
main95411-19930
75 parts on this diagram · 2 diagrams in section
