CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-63050i1SLU..SV10..5F198203-198212

main21100-63051i1SLU..SV10..5F198212-198304

main21100-63060i1SLU..SV10..4FC198207-198212

main21100-63061i1SLU..SV10..4FC198212-198304

main21100-63120i1SLU..SV10..5F198212-198304

COLD SPEC

main21100-63120i1SLU..SV10..5F198304-198406

main21100-63130i1SLU..SV10..4FC198304-198406

main21100-63130i1SLU..SV10..4FC198212-198304

COLD SPEC

21100KCARBURETOR KIT

main04211-63020i1SLU..SV10..5F198203-198209

main04211-63021i1SLU..SV10..4FC198207-198209

main04211-63022i1SLU..SV10198209-198406

21100LGASKET KIT, CARBURETOR

main04212-63010i1SLU..SV10198203-198406

21673CAP, IDLE LIMIT

main21673-13280i1SLU..SV10198209-198406

main21673-38020i1SLU..SV10198203-198209

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-63020i1SLU..SV10198203-198406

21911GASKET, CARBURETOR

main21911-63010i1SLU..SV10198203-198406

21913INSULATOR, CARBURETOR HEAT, NO.2

main21902-63020i1SLU..SV10198203-198212

main21902-63021i1SLU..SV10198212-198406

9411040800

main94110-40800

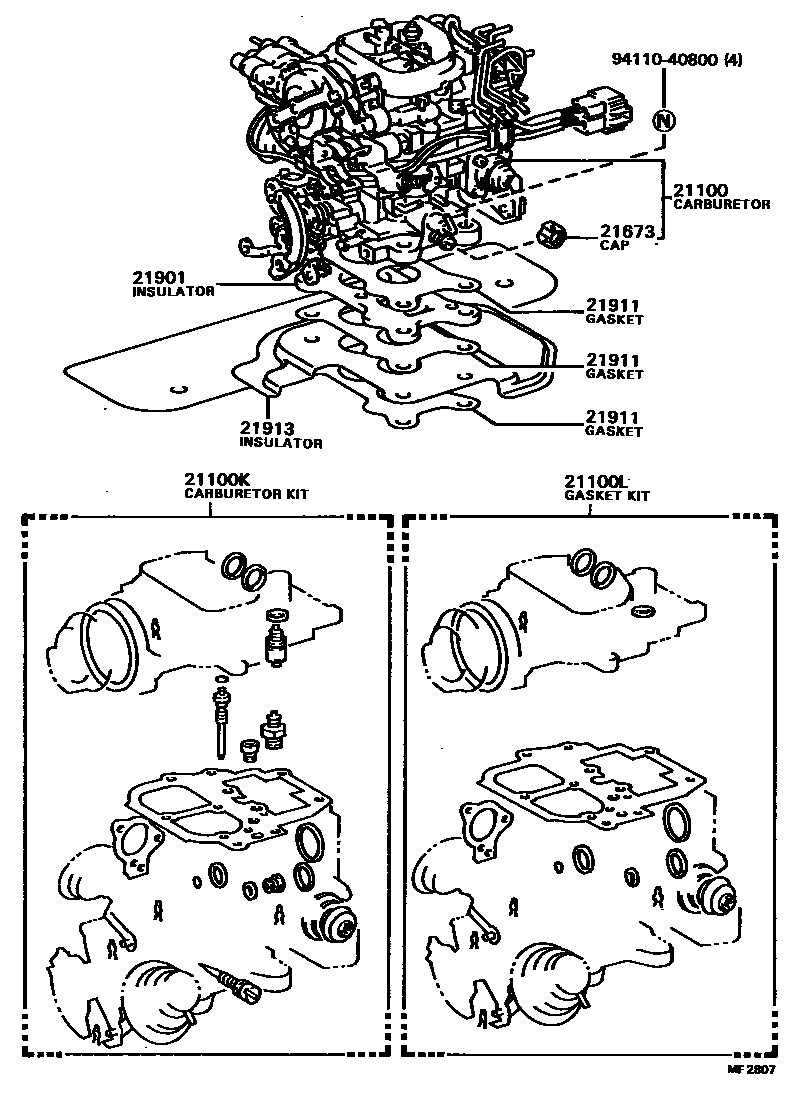

8 parts on this diagram · 1 diagram in section
