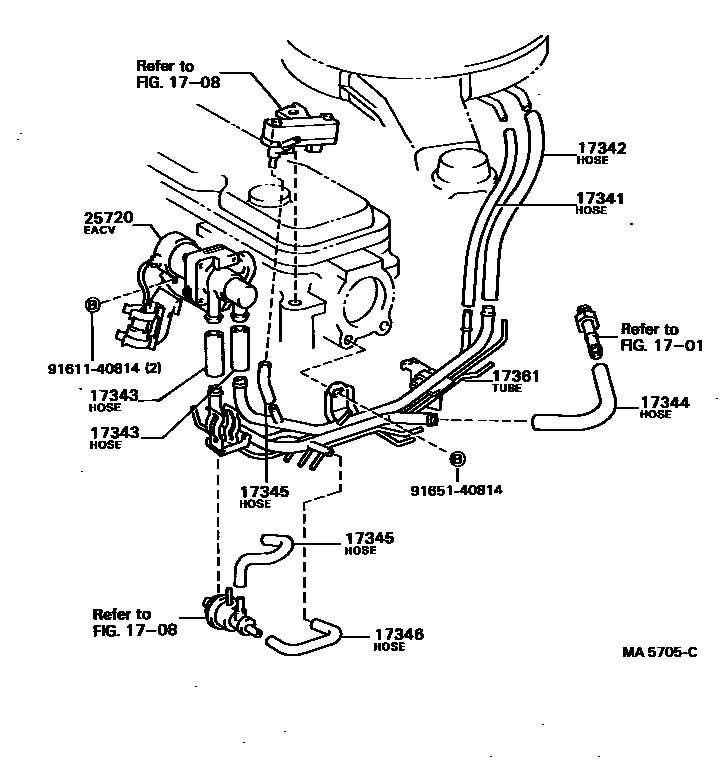

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main90445-11961i1SLU..SV10198203-198406

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main90445-15006i1SLU..SV10198203-198406

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main90445-16012×2i1SLU..SV10198203-198406

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main90445-16009i1SLU..SV10198203-198210

main90445-17055i1SLU..SV10198210-198406

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17342-63010i1SLU..SV10198203-198212

BIMETAL VALVE TO VCV

main17342-63030i1SLU..SV10198212-198406

main90445-11059i1SLU..SV10198203-198212

PIPE TO BIMETAL VALVE

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17343-63010i1SLU..SV10198203-198212

17361TUBE, AIR

main17361-63010i1SLU..SV10198203-198212

main17361-63011i1SLU..SV10198212-198406

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25704-63010i1SLU..SV10198212-198406

main25720-63020i1SLU..SV10198203-198212

9161140814

main91611-40814

9165140814

main91651-40814

12 parts on this diagram · 2 diagrams in section
