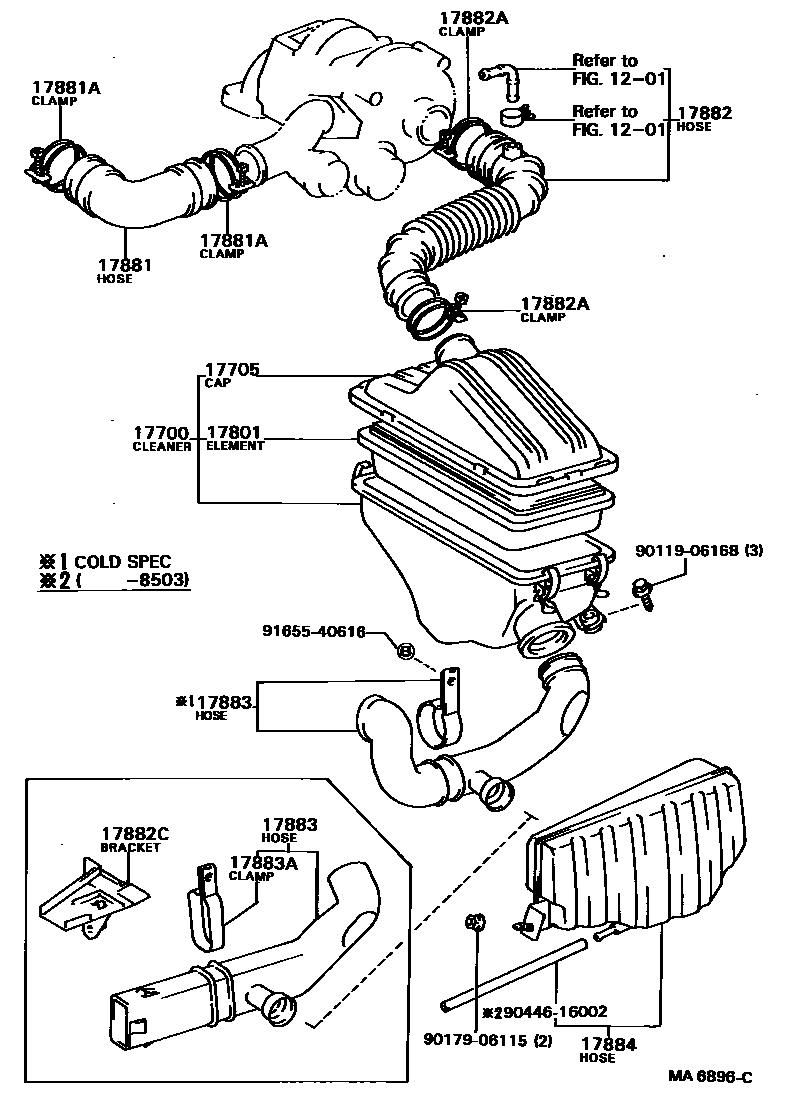

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

17700CLEANER ASSY, AIR

main17700-63020i1SLU..SV10198203-198212

sub17700-63022

sub90339-03005

main17700-63022i1SLU..SV10198212-198406

main17700-63080i1SILU..SV10198406-198607

main17700-64100i1CTL,2CTL..CV1#198308-198607

main17700-64140i1CTL..CV10198409-198411

sub17700-64100

main17700-74010i2SELU..SV11198208-198607

main17700-74030i3SGELU..SV12198406-198604

sub17700-74031

main17700-74031i3SGELU..SV12198604-198607

17705CAP SUB-ASSY, AIR CLEANER

main17705-63020i1SLU..SV10198203-198406

sub17705-63030

main17705-63060i1SILU..SV10198406-198607

main17705-64030i1CTL,2CTL..CV1#198308-198607

main17705-74010i2SELU..SV11198208-198607

main17705-74030i3SGELU..SV12198406-198604

sub17705-74031

main17705-74031i3SGELU..SV12198604-198607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i1SLU..SV10198203-198406

main17801-64040i1CTL..CV10198308-198607

main17801-64050i1CTL..CV10198409-198411

sub17801-64040

main17801-74010i1SILU,2SELU,3SGELU..SV1#198208-198607

sub17801-55010

17881HOSE, AIR CLEANER, NO.1

main17341-64020i1CTL,2CTL..CV1#198308-198607

main17881-63020i1SLU..SV10198203-198406

sub17881-13120

main17881-63030i1SILU..SV10198406-198607

main17881-74010i2SELU..SV11198208-198607

main17881-74050i3SGELU..SV12198406-198607

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001i1CTL,2CTL..CV1#198308-198607

sub90467-56001

main96111-10460i1SLU..SV10198203-198406

main96111-10710i1SILU,2SELU..SV10,11198208-198607

main96111-10780i3SGELU..SV12198406-198607

17882HOSE, AIR CLEANER, NO.2

main17880-64040i1CTL,2CTL..CV1#198308-198607

main17881-32010i1SLU..SV10198203-198406

main17882-63050i1SILU..SV10198406-198607

main17882-74010i2SELU..SV11198208-198607

main17882-74030i3SGELU..SV12198406-198607

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01005i1SLU..SV10198203-198406

main90460-75001i1CTL,2CTL..CV1#198308-198607

TURBO SIDE

main96111-10670i1CTL,2CTL..CV1#198308-198607

AIR CLEANER SIDE

main96111-10710i2SELU..SV11198208-198607

PIPE SIDE

main96111-10710i1SILU..SV10198406-198607

main96111-10780i3SGELU..SV12198406-198607

PIPE SIDE

main96111-10800i2SELU..SV11198208-198607

AIR FLOW METER SIDE

main96111-10900i3SGELU..SV12198406-198607

AIR FLOW METER SIDE

17882CBRACKET(FOR COOL AIR INTAKE)

main53849-32010i1CTL..CV10198308-198508

sub53849-32020

main53849-32020i2CTL..CV11198508-198607

17883HOSE, AIR CLEANER, NO.3

main17880-32020i1SILU..SV10198406-198607

main17882-32010i1SLU..SV10198203-198406

main17882-32020i2SELU..SV11198208-198406

main17882-32030i1CTL..CV10198308-198406

COLD SPEC

main17882-32040i1CTL..CV10198308-198406

main17882-32050i3SGELU..SV12198406-198607

main17882-32060i1CTL,2CTL..CV1#198406-198607

sub17882-32080

main17882-32070i1CTL,2CTL..CV1#198406-198607

COLD SPEC

main17882-32080i2SELU..SV11198406-198607

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01028i1CTL,2CTL..CV1#198208-198607

main90460-60002i1SLU..SV10198203-198406

17884HOSE, AIR CLEANER, NO.4

main17883-32010i1SLU..SV10198203-198406

main17883-32020i1CTL..CV10198208-198406

main17883-32030i1CTL,2CTL..CV1#198406-198607

main17883-32040i3SGELU..SV12198406-198607

main17883-32050i3SGELU..SV12198406-198607

W/FENDER MIRROR

9011906168

main90119-06168

9017906115

main90179-06115

9044616002

main90446-16002

9165540616

main91655-40616

16 parts on this diagram · 5 diagrams in section
