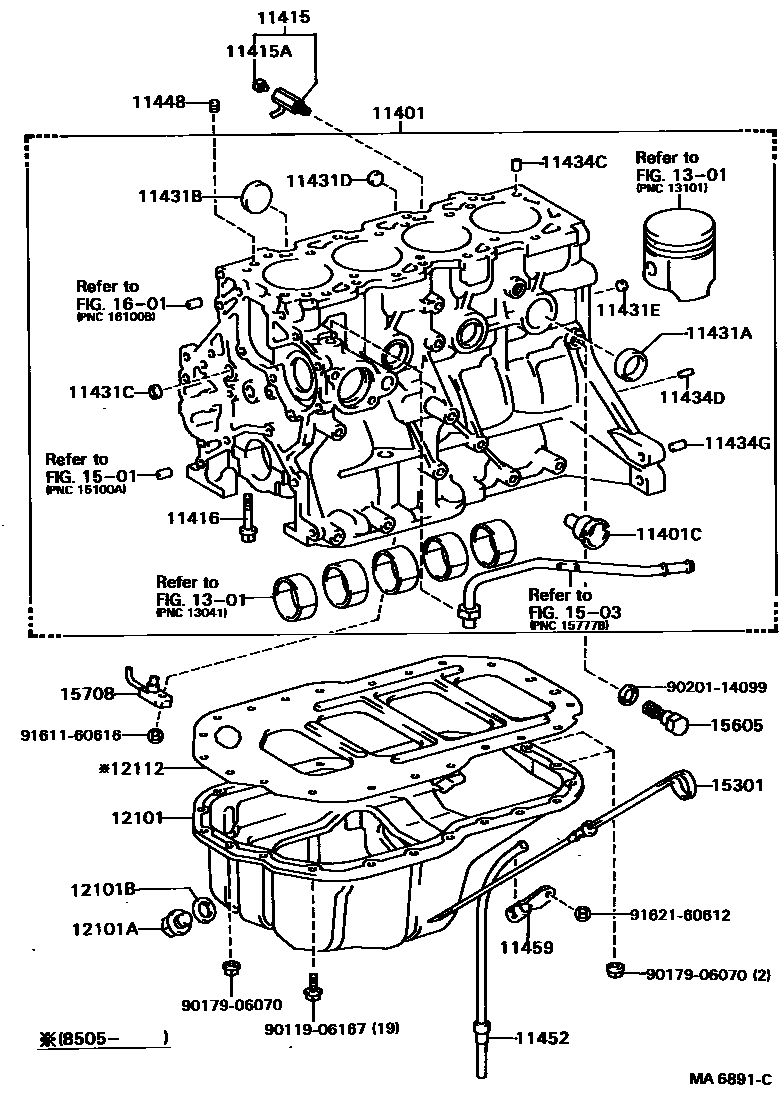

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69086i1S#..SV10198203-198607

sub11401-69087

sub11381-63011

sub12101-63011

sub12101-63021

main11401-69087i1SILU..SV10198607-198607

main11401-69155i1CTL..CV10198308-198508

main11401-69245i2CTL..CV11198508-198607

sub11401-69246

sub11115-64122

main11401-79045i2SELU..SV11198208-198607

sub11401-79046

sub11381-63011

sub12101-63011

sub12101-63021

main11401-79046i2SELU..SV11198607-198607

sub11401-79047

sub90915-03001

main11401-79115i3SGELU..SV12198406-198508

sub11401-79116

main11401-79185i3SGELU..SV12198508-198603

sub11401-79186

sub15707-88361

main11401-79186i3SGELU..SV12198603-198607

sub11401-79187

sub11381-63011

sub12101-74021

main11401-79187i3SGELU..SV12198607-198607

sub11401-79188

sub15707-88362

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i1CTL,2CTL..CV1#198308-198607

sub16353-64011

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1CTL..CV10198308-198406

sub90910-09129

main90910-09076i1SILU,2SELU..SV10,11198203-198607

sub90345-52001

main90910-09088i1CTL,2CTL..CV1#198406-198607

sub90345-52003

main90910-09091i3SGELU..SV12198508-198607

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i1CTL..CV10198308-198406

sub90910-09087

main90109-14003i1S#,2SELU,3SGELU..SV1#198203-198607

main90910-09087i3SGELU..SV12198406-198607

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i1S#,2SELU,3SGELU..SV1#198203-198607

*10-1.25PX67-18

main90910-02061i1CTL,2CTL..CV1#198308-198607

*12-1.25PX80-24

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i1S#,2SELU,3SGELU..SV1#198203-198607

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i1CTL,2CTL..CV1#198308-198607

OD=30

main96411-44000i1S#,2SELU,3SGELU..SV1#198203-198607

OD=40

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-11800i1CTL,2CTL..CV1#198308-198607

OD=18

sub96411-41800

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-11800i1CTL,2CTL..CV1#198308-198607

OD=18

sub96411-41800

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-11800i1CTL,2CTL..CV1#198308-198607

OD=18

sub96411-41800

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14001i1CTL,2CTL..CV1#198308-198607

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1S#,2SELU,3SGELU..SV1#198203-198607

main90250-06068i1CTL,2CTL..CV1#198308-198607

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1CTL,2CTL..CV1#198308-198607

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54010i1CTL,2CTL..CV1#198308-198607

sub11448-54020

11452GUIDE, OIL LEVEL GAGE

main11452-63020i1S#,2SELU..SV10,11198203-198607

main11452-64030i1CTL,2CTL..CV1#198308-198607

main11452-88360i3SGELU..SV12198406-198607

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90929-01049i1CTL,2CTL..CV1#198308-198607

12101PAN SUB-ASSY, OIL

main12101-63020i1S#,2SELU..SV10,11198203-198607

sub12101-63021

main12101-63021i1SILU,2SELU..SV10,11198607-198607

main12101-64020i1CTL,2CTL..CV1#198308-198607

main12101-74010i3SGELU..SV12198406-198505

sub12101-74020

main12101-74020i3SGELU..SV12198505-198607

sub12101-74021

main12101-74021i3SGELU..SV12198607-198607

sub12101-74022

sub90341-12012

sub90430-12019

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i1S#,2SELU,3SGELU..SV1#198203-198607

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18013i1CTL,2CTL..CV1#198505-198607

sub90430-18023

main90430-18244i1S#,2SELU,3SGELU..SV1#198203-198607

sub90430-18023

12112PAN, OIL NO.2

main12112-64020i1CTL,2CTL..CV1#198505-198607

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-63020i1S#,2SELU..SV10,11198203-198607

main15301-64010i1CTL,2CTL..CV1#198308-198607

sub15301-64040

main15301-88360i3SGELU..SV12198406-198508

sub15301-88361

main15301-88361i3SGELU..SV12198508-198607

sub15301-88362

main15301-88362i3SGELU..SV12198607-198607

15605VALVE SUB-ASSY, OIL CHECK

main15605-64010i1CTL..CV10198308-198502

sub15605-64011

main15605-64011i1CTL,2CTL..CV1#198502-198607

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64010i1CTL..CV10198308-198502

sub15790-64011

main15790-64011i1CTL,2CTL..CV1#198502-198607

1601

9011906167

main90119-06167

9017906070

main90179-06070

9020114099

main90201-14099

9161160616

main91611-60616

9162160612

main91621-60612

32 parts on this diagram · 3 diagrams in section
