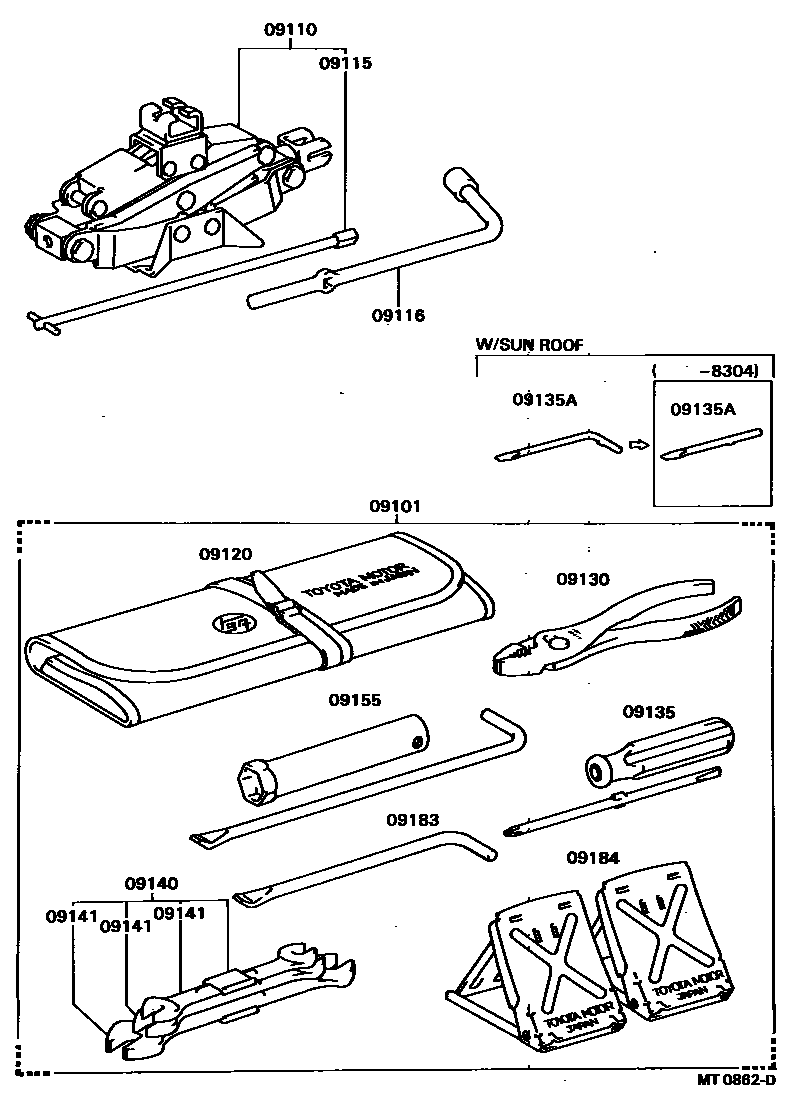

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12060iSV10198203-198205

sub09102-12071

main09102-12070iCV1#198308-198607

main09102-12071iSV10,11198205-198607

main09102-32010iSV12198406-198607

09110JACK ASSY

main09118-20010iSV1#198203-198212

sub09118-20011

main09118-20011iCV1#,SV1#198212-198607

sub09111-20041

sub09115-32010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iCV10,SV1#198203-198312

main09115-32010iCV1#,SV1#198312-198607

09116LEVER, JACK HANDLE

main09116-16010iCV1#,SV1#198203-198607

09120BAG, TOOL

main09120-12011iCV1#,SV1#198203-198607

09130PLIERS

main09130-00010iSV10198203-198205

sub09130-00012

main99913-11500iCV1#,SV1#198205-198607

09135DRIVER, SCREW

main99915-10700iCV1#,SV1#198203-198607

09135ABIT, SCREW DRIVER

main09135-00011iSV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198304

W/SUN ROOF

sub09135-00012

main09135-00012iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198304-198607

W/SUN ROOF

09140SPANNER SET

main09140-12011iCV1#,SV1#198203-198607

09141SPANNER

main99914-10810iCV1#,SV1#198203-198607

main99914-11012iCV1#,SV1#198203-198607

main99914-11417iCV1#,SV1#198203-198607

09155WRENCH, SPARK PLUG

main09155-32010iSV12198406-198607

sub09155-74020

main09155-41020iSV10,11198203-198607

09183WRENCH, WHEEL CAP

main09183-00010iCV1#198308-198607

09184STOPPER, WHEEL

main09184-00010iCV1#,SV1#198203-198607

13 parts on this diagram · 1 diagram in section
