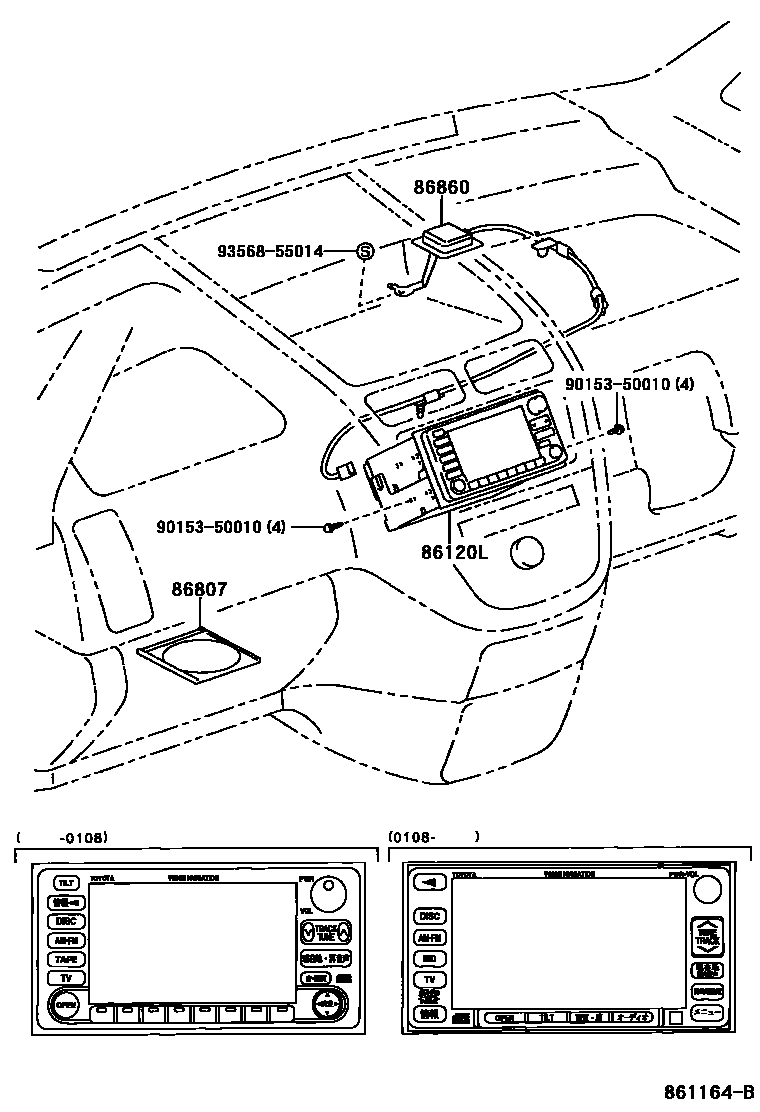

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-42010iACT10,ZCT1#200004-200108

main86120-52140iACT10,ZCT1#200108-200205

86807DISC KIT, CD-ROM

main86807-42010iACT10,ZCT1#200004-200108

main86807-42020iACT10,ZCT1#200108-200205

main86807-42021iACT10,ZCT1#200402-200404

main86807-42022iACT10,ZCT1#200404-200410

main86807-42023iACT10,ZCT1#200410

86860ANTENNA ASSY, NAVIGATION

main86860-63010iACT10,ZCT1#200004-200108

main86860-63020iACT10,ZCT1#200108-200205

9015350010

main90153-50010

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
