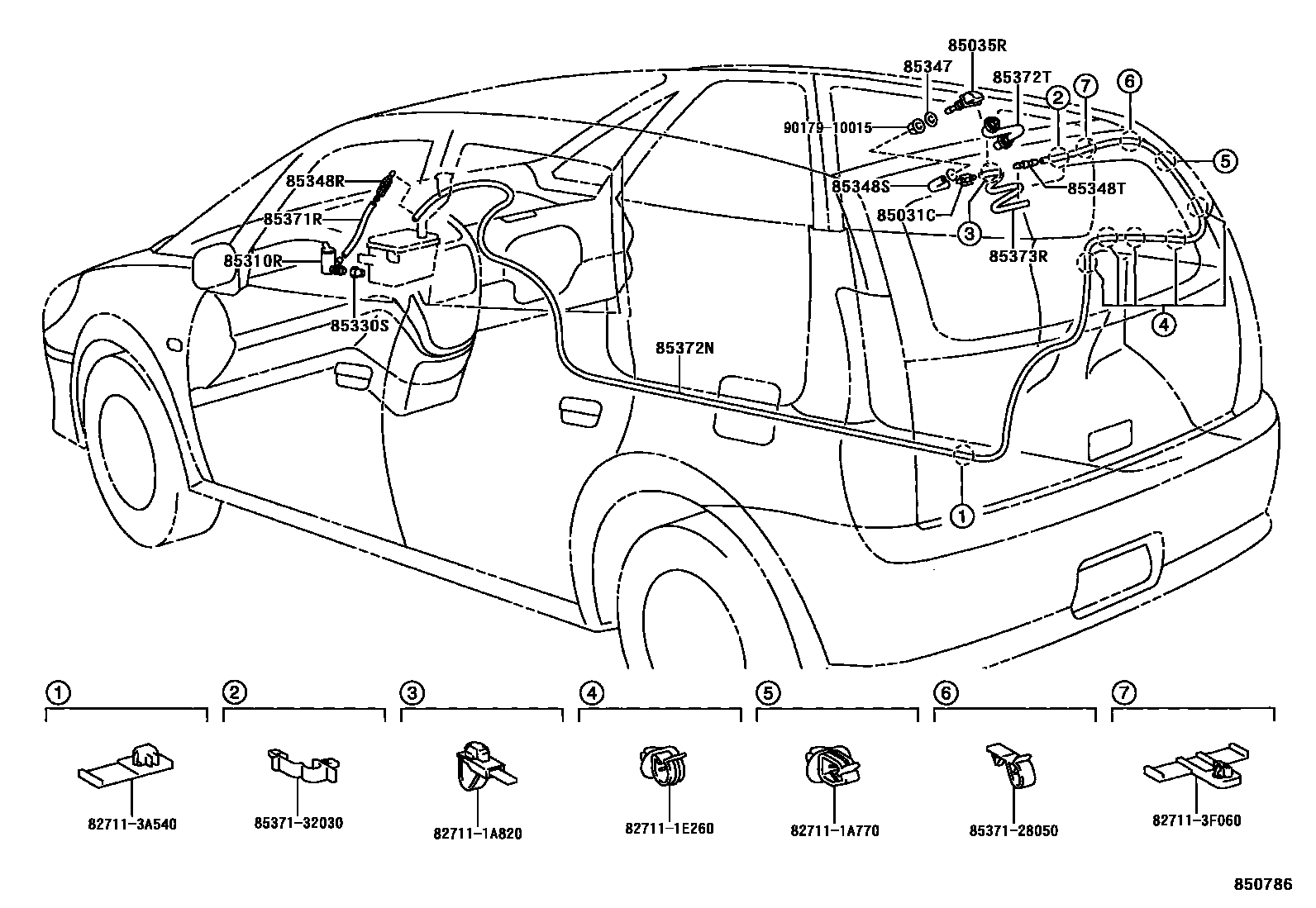

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85321-26020iACT10,ZCT1#200004-200205

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-63010iACT10,ZCT1#200004-200205

sub85391-22060

85310RMOTOR ASSY, REAR WASHER

main85330-60140iACT10,ZCT1#200004-200205

85330SBUSH, REAR WASHER JAR

main90099-32089iACT10,ZCT1#200004-200205

85347PACKING, REAR WASHER

main85347-12010iACT10,ZCT1#200004-200205

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iACT10,ZCT1#200004-200205

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iACT10,ZCT1#200004-200205

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iACT10,ZCT1#200004-200205

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iACT10,ZCT1#200004-200205

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59280iACT10,ZCT1#200004-200205

85372TGROMMET, WASHER

main85373-44010iACT10,ZCT1#200004-200205

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iACT10,ZCT1#200004-200205

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A820

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

827113F060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F060

8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28050

8537132030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32030

9017910015

main90179-10015

20 parts on this diagram · 1 diagram in section
