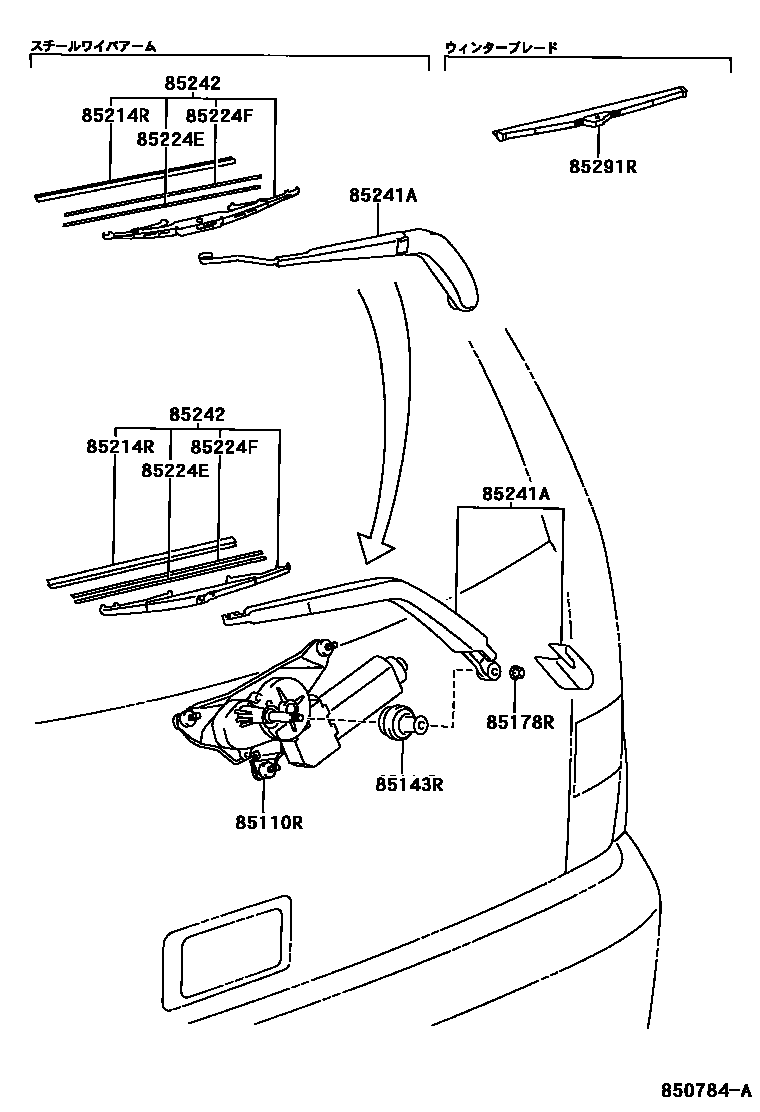

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-63010iACT10,ZCT1#200004-200205

85143RGROMMET, REAR WIPER MOTOR

main85143-44020iACT10,ZCT1#200004-200205

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACT10,ZCT1#200004-200205

85214RRUBBER, REAR WIPER

main85214-30280iACT10,ZCT1#200004-200205

main85214-31010iACT10,ZCT1#200205

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-21020iACT10,ZCT1#200004-200205

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-21020iACT10,ZCT1#200004-200205

85241AARM, REAR WIPER

main85241-44020iACT10,ZCT1#200004-200205

main85241-63010iACT10,ZCT1#200004-200205

85242BLADE, RR WIPER

main85242-21020iACT10,ZCT1#200004-200205

main85242-31011iACT10,ZCT1#200205

main85242-63010iACT10,ZCT1#200004-200205

85291RBLADE,REAR WIPER, WINTER

main85291-33020iACT10,ZCT1#200205

main85291-60030iACT10,ZCT1#200004-200205

main85291-63010iACT10,ZCT1#200004-200205

9 parts on this diagram · 2 diagrams in section
