BATTERY & BATTERY CABLE

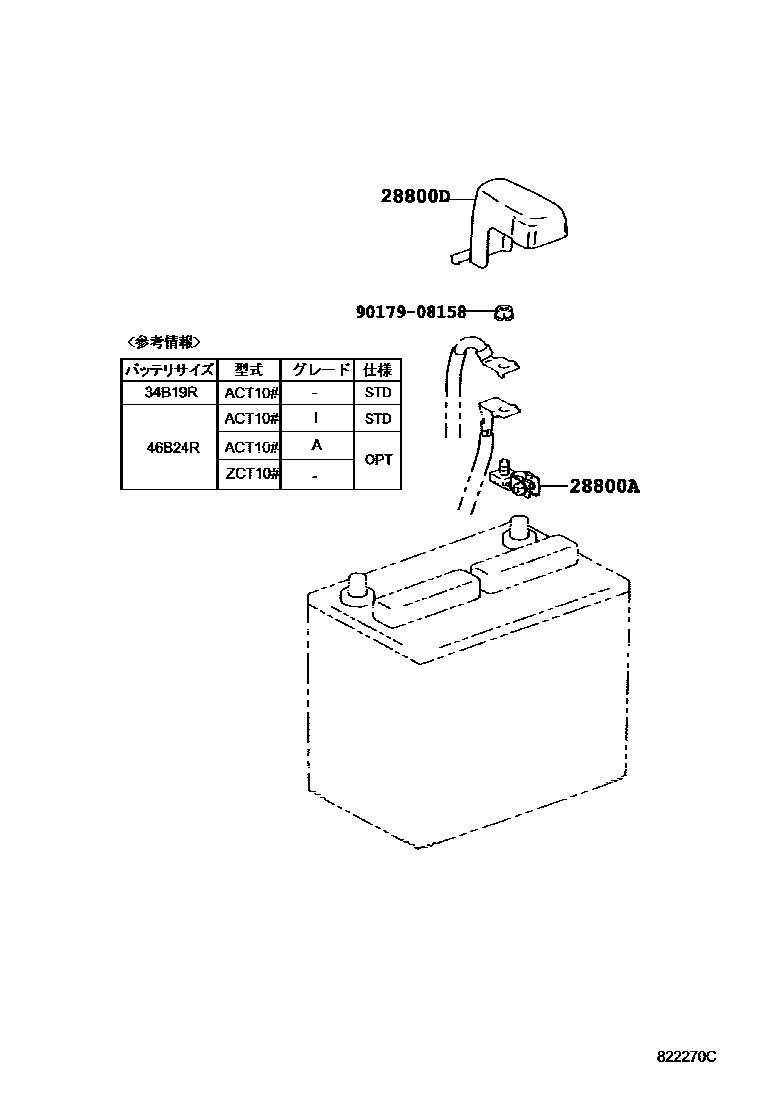

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05057i200004-200205

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i200004-200205

main82821-20440i200301

9017908158

main90179-08158

3 parts on this diagram · 1 diagram in section
