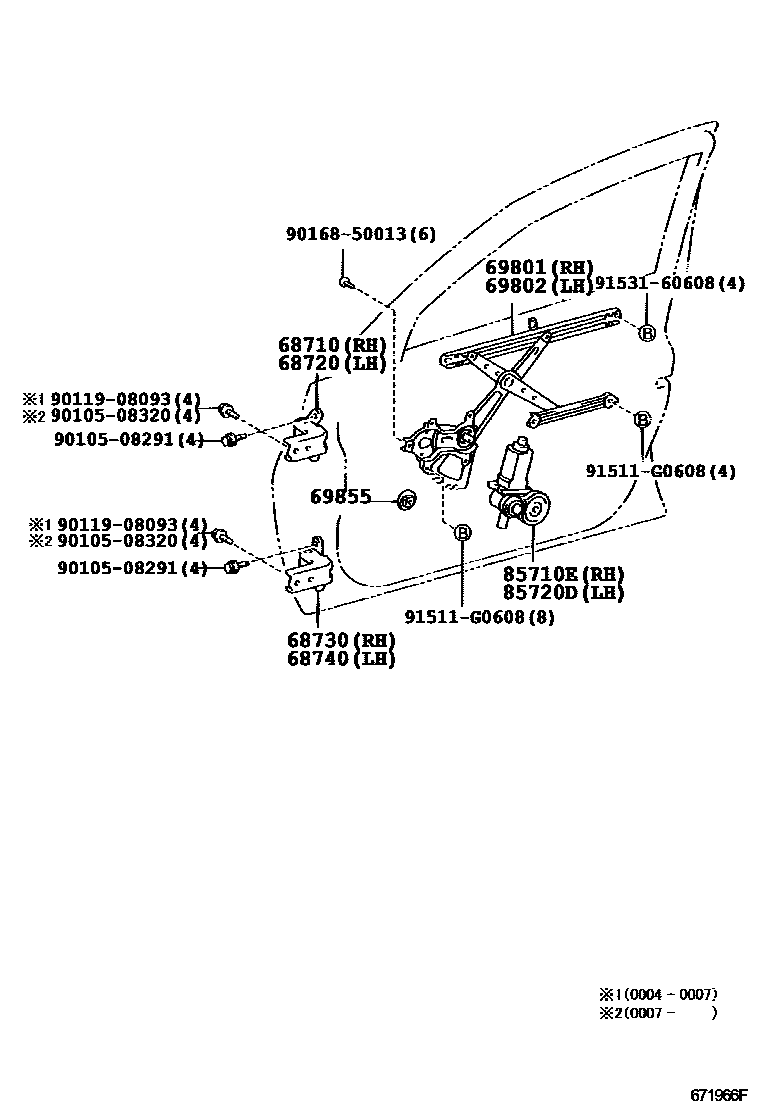

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iACT10,ZCT1#200205

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010iACT10,ZCT1#200004-200205

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-52010iACT10,ZCT1#200004-200205

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-52010iACT10,ZCT1#200004-200205

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-63010iACT10,ZCT1#200205

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-63010iACT10,ZCT1#200205

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iACT10,ZCT1#200004-200205

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52110iACT10,ZCT1#200205

main85710-63010iACT10,ZCT1#200004-200205

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-32150iACT10,ZCT1#200004-200205

main85720-52110iACT10,ZCT1#200205

9010508291

main90105-08291

9010508320

main90105-08320

9011908093

main90119-08093

9016850013

main90168-50013

91511G0608

main91511-G0608

9153160608

main91531-60608

15 parts on this diagram · 1 diagram in section
