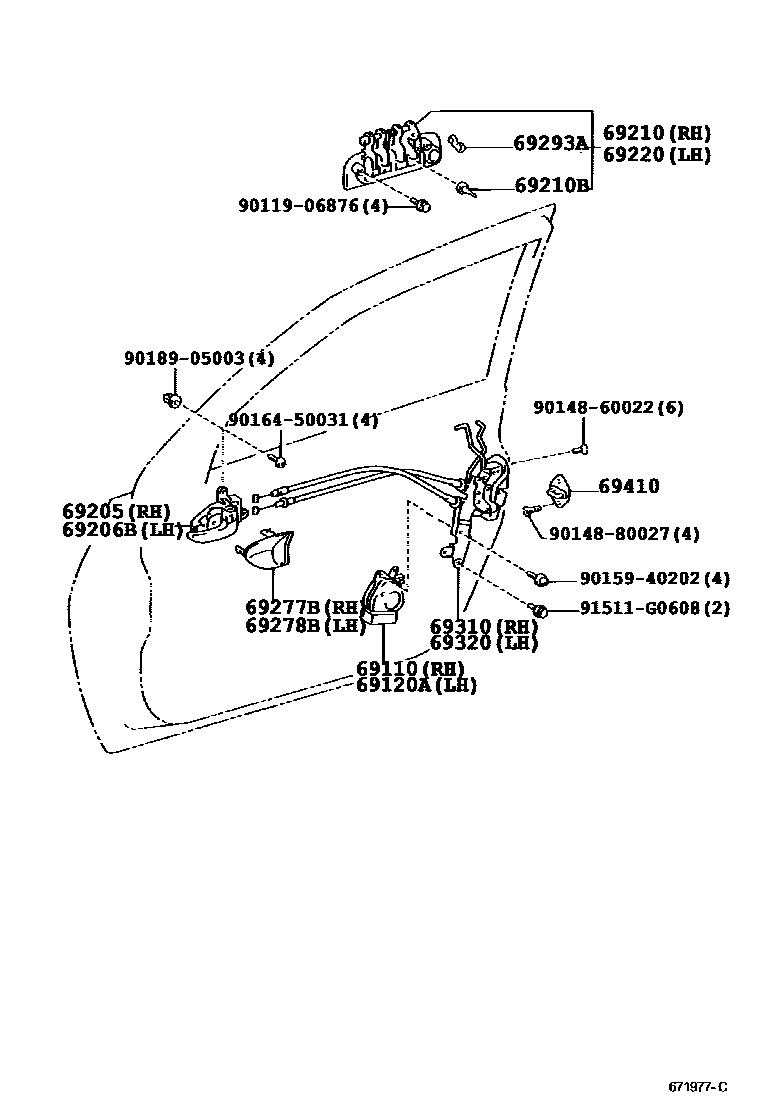

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED MC.,3M8
PALE ROSE ME.OP.,3N7
RED M.M.,3N8
BEIGE ME.,4P7
CHAMPAGNE ME.,586
JADE GREEN M.M.,6S9
DK.BLUE M.M.,8P4
BLUE M.M.,8P5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED MC.,3M8
PALE ROSE ME.OP.,3N7
RED M.M.,3N8
BEIGE ME.,4P7
CHAMPAGNE ME.,586
JADE GREEN M.M.,6S9
DK.BLUE M.M.,8P4
BLUE M.M.,8P5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
9011906876
main90119-06876
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9016450031
main90164-50031
9018905003
main90189-05003
91511G0608
main91511-G0608
20 parts on this diagram · 1 diagram in section
