FRONT FENDER APRON & DASH PANEL

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-63010iACT10,ZCT1#200205

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-63010iACT10,ZCT1#200004-200205

52141GSTAY, FRONT BUMPER, RH

main52141-63010iACT10,ZCT1#200004-200205

52142HSTAY, FRONT BUMPER, LH

main52142-63010iACT10,ZCT1#200004-200205

53201SUPPORT SUB-ASSY, RADIATOR

main53201-63010iACT10,ZCT1#200004-200205

53213ASUPPORT, RADIATOR, UPPER RH

main53213-63010iACT10,ZCT1#200004-200205

53214ASUPPORT, RADIATOR, UPPER LH

main53214-63010iACT10,ZCT1#200004-200205

53216ASUPPORT, RADIATOR, UPPER

main53216-63010iACT10,ZCT1#200004-200108

main53216-63011iACT10,ZCT1#200108-200205

53217ABRACE, HOOD LOCK SUPPORT

main53208-63010iACT10,ZCT1#200004-200205

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-63010iACT10,ZCT1#200004-200205

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-63010iACT10,ZCT1#200004-200205

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-30010×2iACT10,ZCT1#200004-200205

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-63010iACT10,ZCT1#200004-200205

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-63010iACT10,ZCT1#200004-200205

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-63010iACT10,ZCT1#200004-200205

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-63010iACT10,ZCT1#200004-200205

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-63010iACT10,ZCT1#200004-200205

53711BAPRON, FRONT FENDER, FRONT RH

main53711-63010iACT10,ZCT1#200004-200205

53712BAPRON, FRONT FENDER, FRONT LH

main53712-63010iACT10,ZCT1#200004-200205

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-63010iACT10,ZCT1#200004-200205

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-63010iACT10,ZCT1#200004-200205

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-63010iACT10,ZCT1#200004-200205

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-63010iACT10,ZCT1#200004-200205

53717PLATE, FENDER APRON, RH

main53717-32030iACT10,ZCT1#200004-200205

53717APLATE, FENDER APRON

main53717-63010iACT10,ZCT1#200004-200205

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-63010iACT10,ZCT1#200205

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-63010iACT10,ZCT1#200205

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-63010iACT10,ZCT1#200004-200205

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-07164×4iACT10,ZCT1#200004-200205

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53706-63010iACT10,ZCT1#200004-200205

53737BSEAL, FRONT FENDER APRON, LH

main53737-32040iACT10,ZCT1#200004-200205

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-44010iACT10,ZCT1#200004-200205

53851FBRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-63010iACT10,ZCT1#200205

53852CBRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-63010iACT10,ZCT1#200004-200205

53878HBRACKET, FRONT SIDE PANEL, NO.2

main53837-44010iACT10,ZCT1#200004-200205

53882MSEAL, FRONT FENDER

main53882-30040×6iACT10,ZCT1#200004-200205

55101PANEL SUB-ASSY, DASH

main55101-63010iZCT1#200004-200205

main55101-63011iZCT1#200205-200207

main55101-63012iZCT1#200207

main55101-63020iACT10200008-200205

main55101-63021iACT10200207

55129COVER, DASH PANEL HOLE

main55129-32030iACT10,ZCT1#200004-200205

main55139-32010iACT10,ZCT1#200004-200205

55210INSULATOR ASSY, DASH PANEL

main55210-63010iACT10,ZCT1#200004-200205

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-32010iACT10,ZCT1#200004-200205

55223AINSULATOR, DASH PANEL, OUTER

main55223-63010iACT10,ZCT1#200004-200205

55257COVER, DASH PANEL OPENING

main55257-32010×2iACT10,ZCT1#200004-200205

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-63010iACT10,ZCT1#200004-200205

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-32050iACT10,ZCT1#200004-200205

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-32050iACT10,ZCT1#200004-200205

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-32050iACT10,ZCT1#200004-200205

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-32010iACT10,ZCT1#200004-200205

57167DREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-32080iACT10,ZCT1#200004-200205

57168DREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH

main57168-32080iACT10,ZCT1#200004-200205

9010506260

main90105-06260

9010906366

main90109-06366

9015960496

main90159-60496

9018906104

main90189-06104

9046707081

main90467-07081

9046707164

main90467-07164

9046710170B0

main90467-10170B0

9046710170C0

main90467-10170C0

9054115024

main90541-15024

9095001866

main90950-01866

9095006123

main90950-06123

91631B0610

main91631-B0610

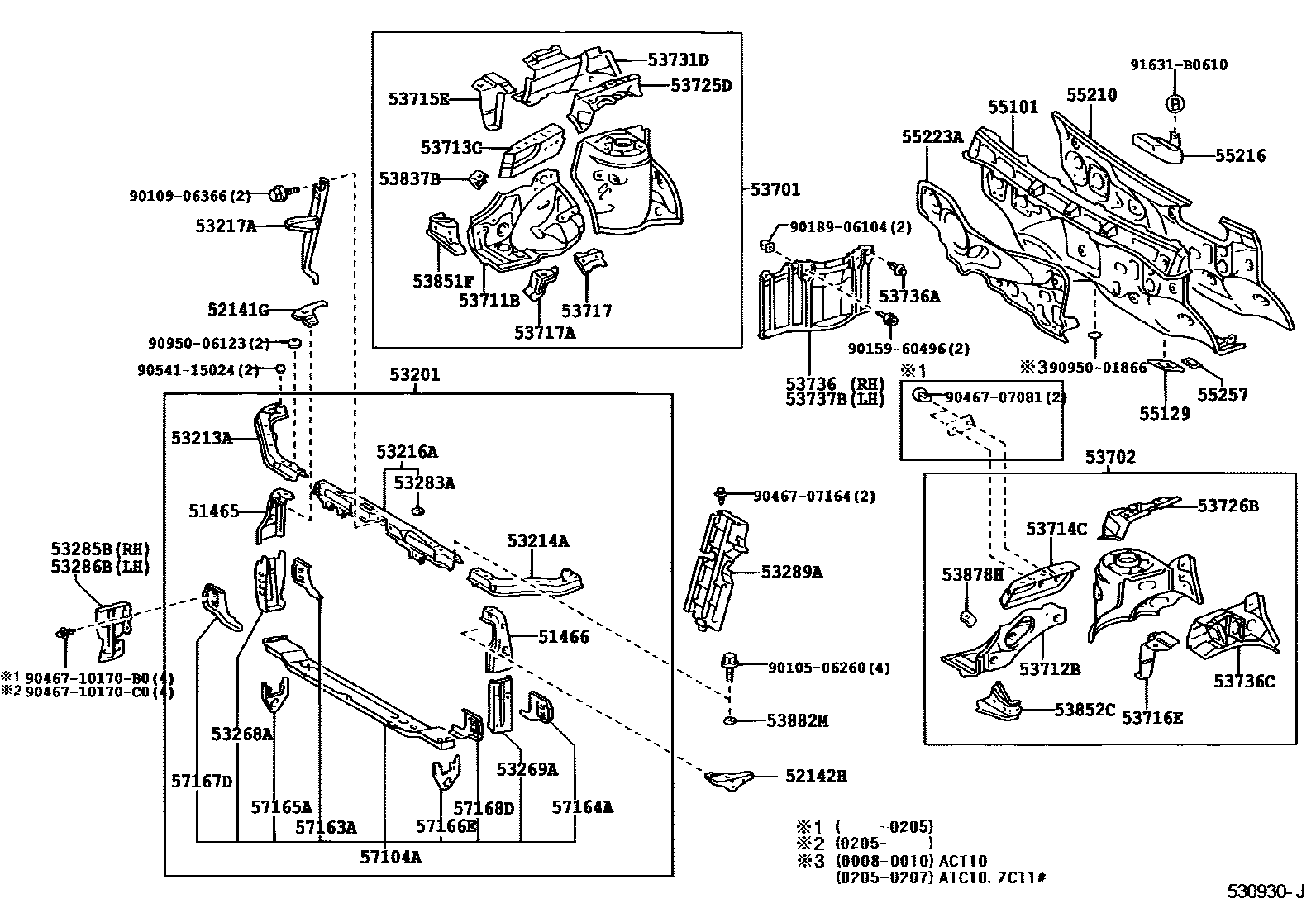

61 parts on this diagram · 1 diagram in section
