Toyota OPA — REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187JPLATE, REAR BUMPER ARM
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52791BOLT, BUMPER MOULDING SET, NO.1
8113REAR LICENSE PLATE LAMP
9015960431
9015960561
9017906156
9018906157
9021005006
9046707130
20 parts on this diagram · 1 diagram in section

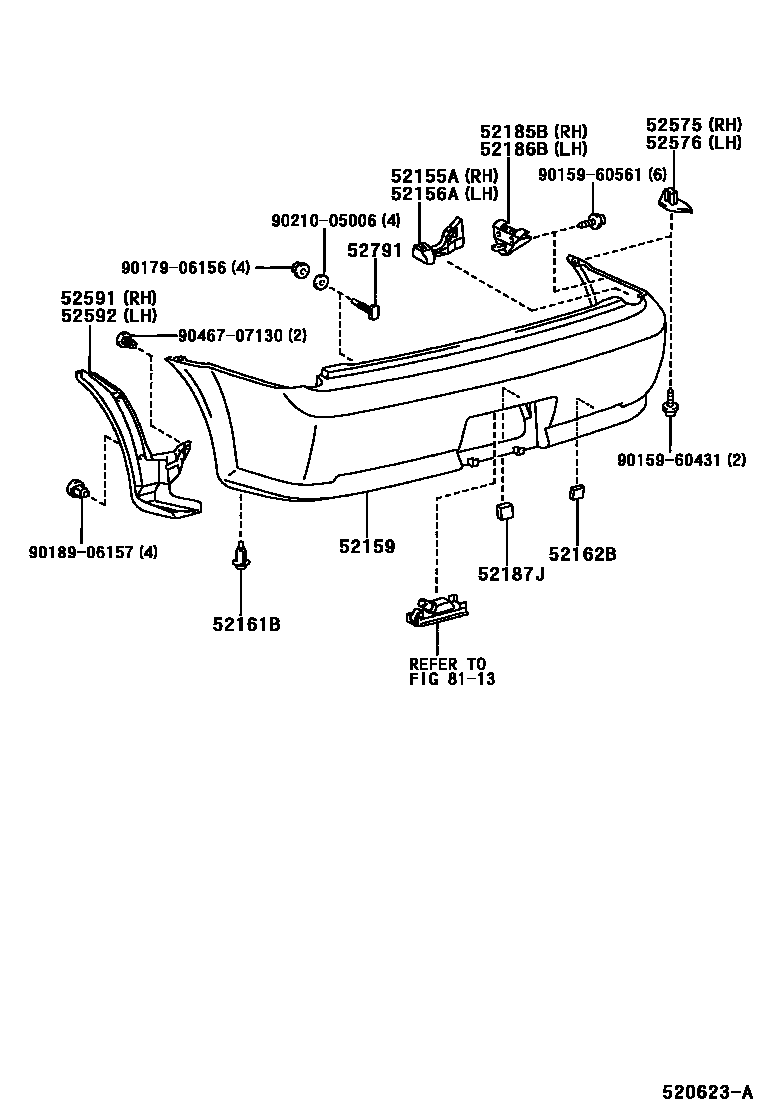

REAR BUMPER & BUMPER STAY for Toyota OPA
This section contains 20 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota OPA. Key components include: SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, PIECE, REAR BUMPER, PLATE, REAR BUMPER, NO.1.
