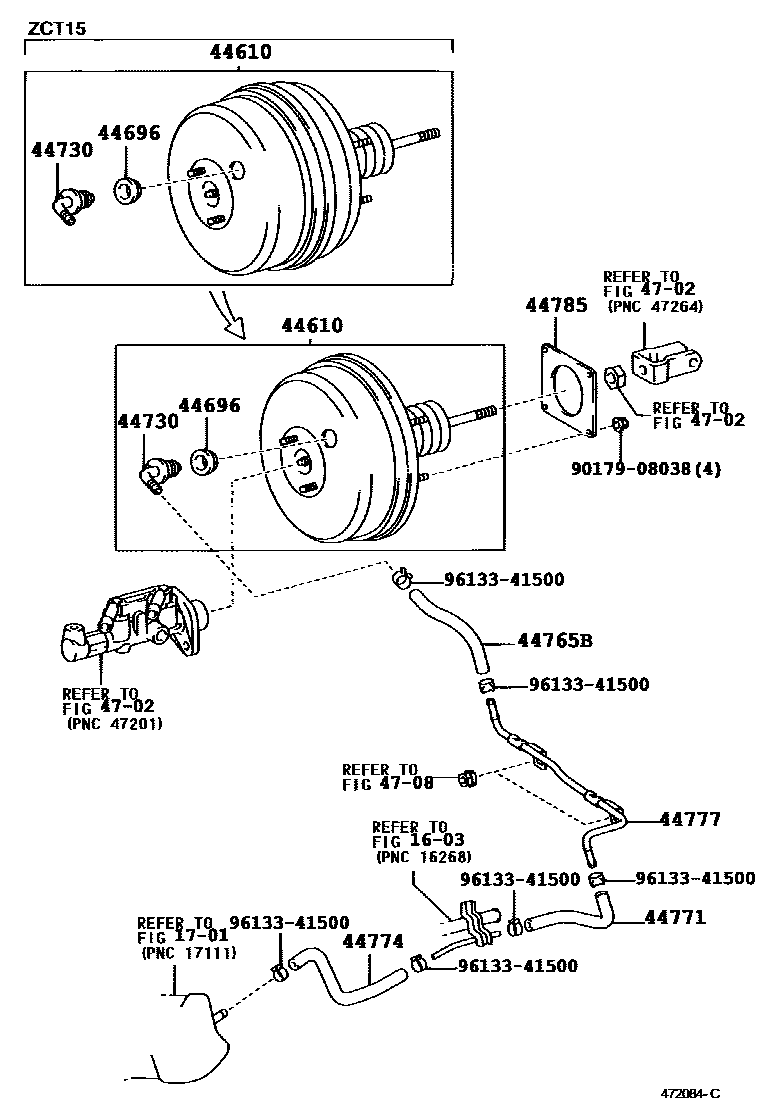

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-63010iZCT10200004-200205

main44610-63020iZCT15200004-200205

main44610-63030iACT10200008-200205

main44610-63040iZCT10200205

main44610-63050iZCT15200205

main44610-63060iACT10200205

44696GROMMET, CHECK VALVE

main90480-24439iACT10,ZCT1#200004-200205

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iZCT1#200004-200205

main44730-20080iACT10200008-200205

44765BHOSE, CONNECTOR TO BRAKE BOOSTER

main44771-63020iZCT1#200004-200205

44771HOSE, VACUUM TUBE CONNECTOR

main44771-63010iZCT1#200004-200205

44774HOSE, UNION TO CONNECTOR TUBE

main44774-20310iZCT1#200008-200205

main44774-63010iZCT1#200004-200008

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-63010iZCT1#200004-200205

44785GASKET, BRAKE BOOSTER

main44785-32010iACT10,ZCT1#200004-200205

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

9017908038

main90179-08038

9613341500

main96133-41500

14 parts on this diagram · 2 diagrams in section
