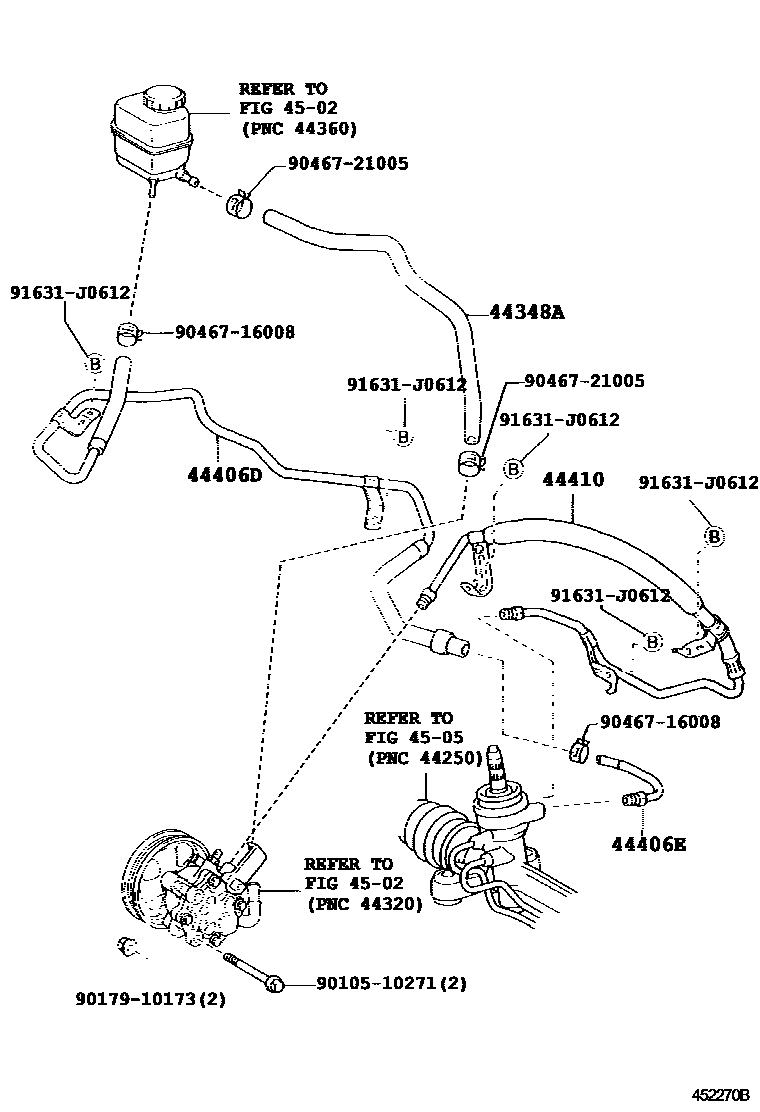

POWER STEERING TUBE

0001 1 0002 1 0003 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-63010iZCT1#200004-200205

main44348-63020iACT10200008-200205

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-63010iACT10,ZCT10200004-200205

main44406-63020iZCT15200205

44406ETUBE SUB-ASSY, RETURN, NO.2

main44416-32070iACT10,ZCT10200205

main44416-32080iZCT15200004-200205

44410TUBE ASSY, PRESSURE FEED

main44410-32570iZCT10200004-200205

main44410-63020iZCT15200004-200205

main44410-63021iZCT15200205

main44410-63030iACT10200205

main44410-63040iZCT10200205

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510271

main90105-10271

9017910173

main90179-10173

9046716008

main90467-16008

9046721005

main90467-21005

91631J0612

main91631-J0612

11 parts on this diagram · 3 diagrams in section
