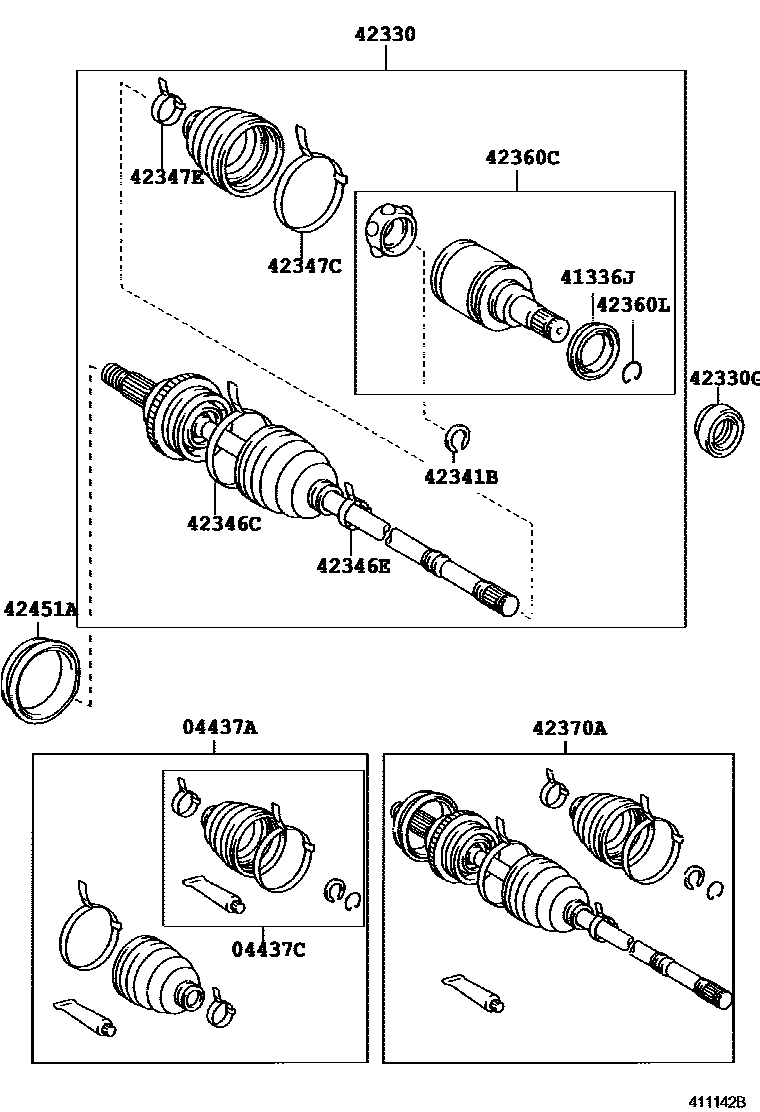

REAR AXLE SHAFT & HUB

0001 1��� 0002 1 0003 1��� 0004 1

04437ABOOT KIT, REAR DRIVE SHAFT, RH

main04429-12020iZCT15200504

main04437-21022iZCT15200004-200205

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04437-21012iZCT15200205-200504

main04439-12010iZCT15200504

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-33010iZCT15200004-200205

42330SHAFT ASSY, REAR DRIVE, RH

main42340-32110iZCT15200004-200205

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-42033iZCT15200004-200205

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main90520-21020iZCT15200004-200205

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12120iZCT15200004-200008

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12130iZCT15200205

main42345-33020iZCT15200004-200008

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12120iZCT15200004-200008

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12130iZCT15200008-200205

main42345-33020iZCT15200004-200008

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-33010iZCT15200205

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-26004iZCT15200004-200205

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-19155iZCT15200504

main42370-39156iZCT15200004-200205

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-32020iZCT15200004-200205

14 parts on this diagram · 4 diagrams in section
