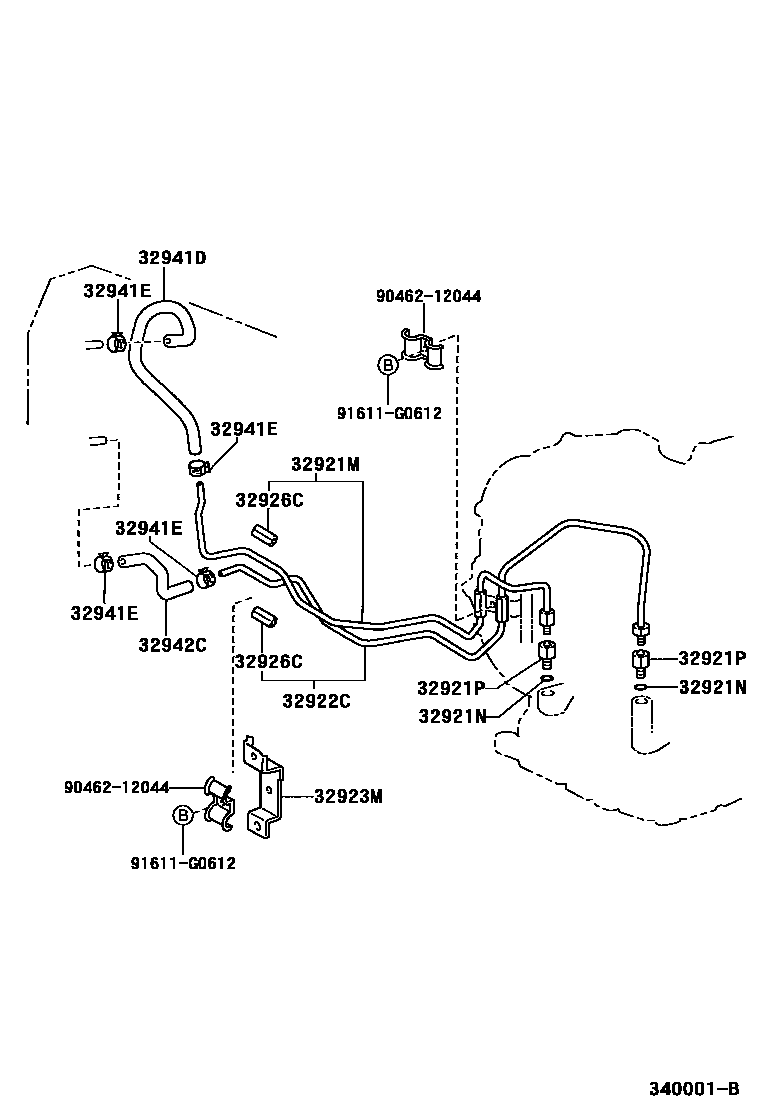

OIL COOLER & TUBE(CVT)

0001 1K110 0002 1K110

32921MTUBE, OIL COOLER INLET, NO.1

main32921-20540iACT10200205

main32921-63010iACT10200008-200205

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACT10200008-200205

32921PUNION(FOR OIL COOLER TUBE)

main90404-16031×2iACT10200008-200205

32922CTUBE, OIL COOLER OUTLET, NO.1

main32922-20520iACT10200205

main32922-63010iACT10200008-200205

32923MCLAMP, OIL COOLER TUBE

main32923-63010iACT10200008-200205

32926CCUSHION, OIL COOLER TUBE(CVT)

main32926-20010×2iACT10200205

main32926-30020×4iACT10200008-200205

32941DHOSE, OIL COOLER INLET

main32941-20230iACT10200205

main32941-63010iACT10200008-200205

32941ECLIP(FOR OIL COOLER TUBE)

main90467-16013×4iACT10200008-200205

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-20080iACT10200205

main32942-63010iACT10200008-200205

9046212044

main90462-12044

91611G0612

main91611-G0612

11 parts on this diagram · 2 diagrams in section
