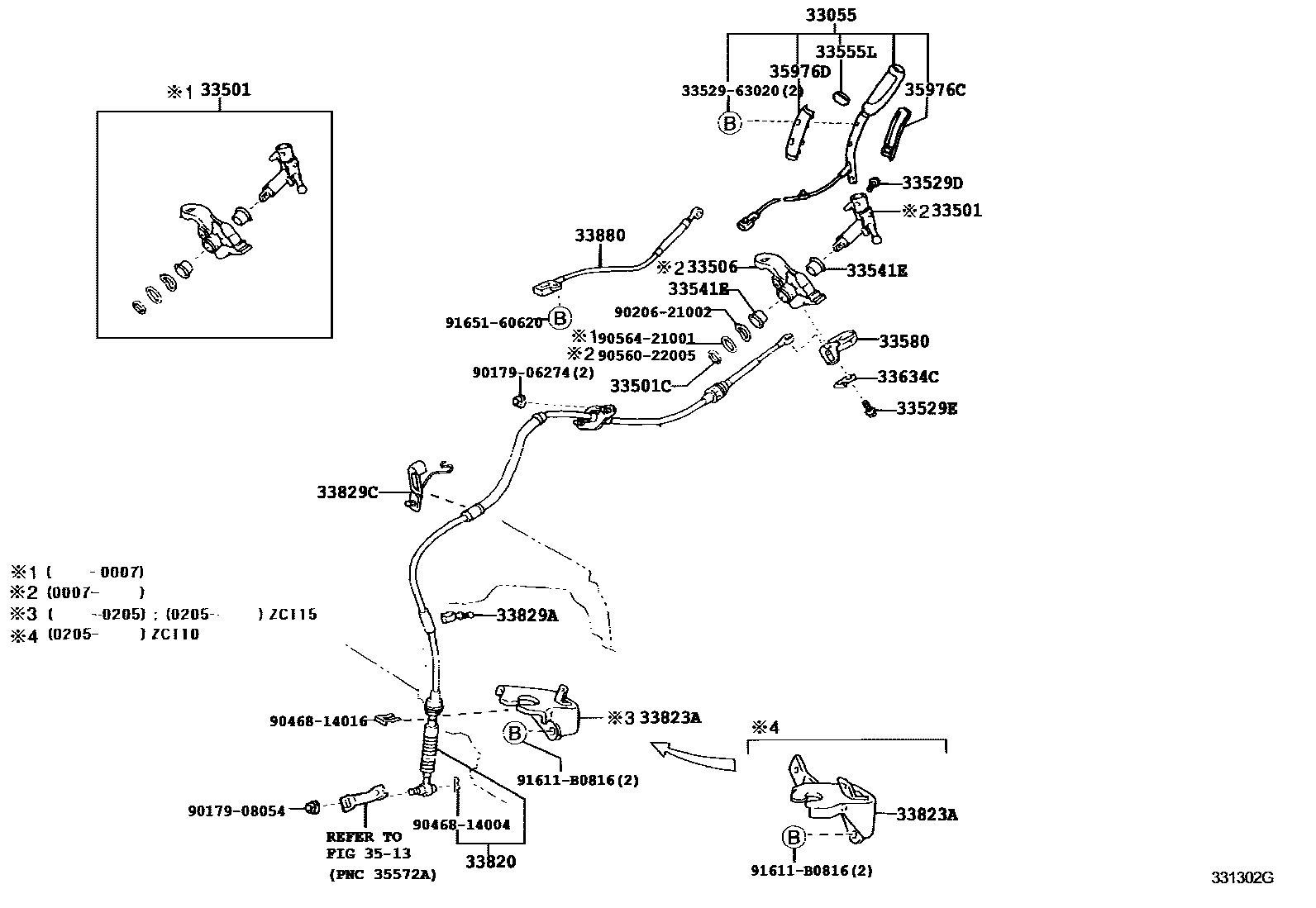

CONTROL SHAFT & CROSSSHAFT
33055LEVER SUB-ASSY, COLUMN SHIFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501CRING (FOR CONTROL SHAFT)
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33529EBOLT, SHIFT LEVER RETAINER
33541EBUSH (FOR COLUMN SHIFT LEVER)
33555LBOOT, SHIFT LEVER
33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33823ABRACKET, TRANSMISSION CONTROL CABLE
33829ASUPPORT, TRANSMISSION CONTROL CABLE
33829CCLAMP, TRANSMISSION CONTROL CABLE
33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
3513THROTTLE LINK & VALVE LEVER (ATM)
35976CCOVER, SLIDE, NO.1(FOR SHIFT LEVER)
35976DCOVER, SLIDE, NO.2(FOR SHIFT LEVER)
3352963020BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
main33529-63020
9017906274
main90179-06274
9017908054
main90179-08054
9020621002
main90206-21002
9046814004
main90468-14004
9046814016
main90468-14016
9056022005
main90560-22005
9056421001
main90564-21001
91611B0816
main91611-B0816
9165160620
main91651-60620
28 parts on this diagram · 2 diagrams in section
