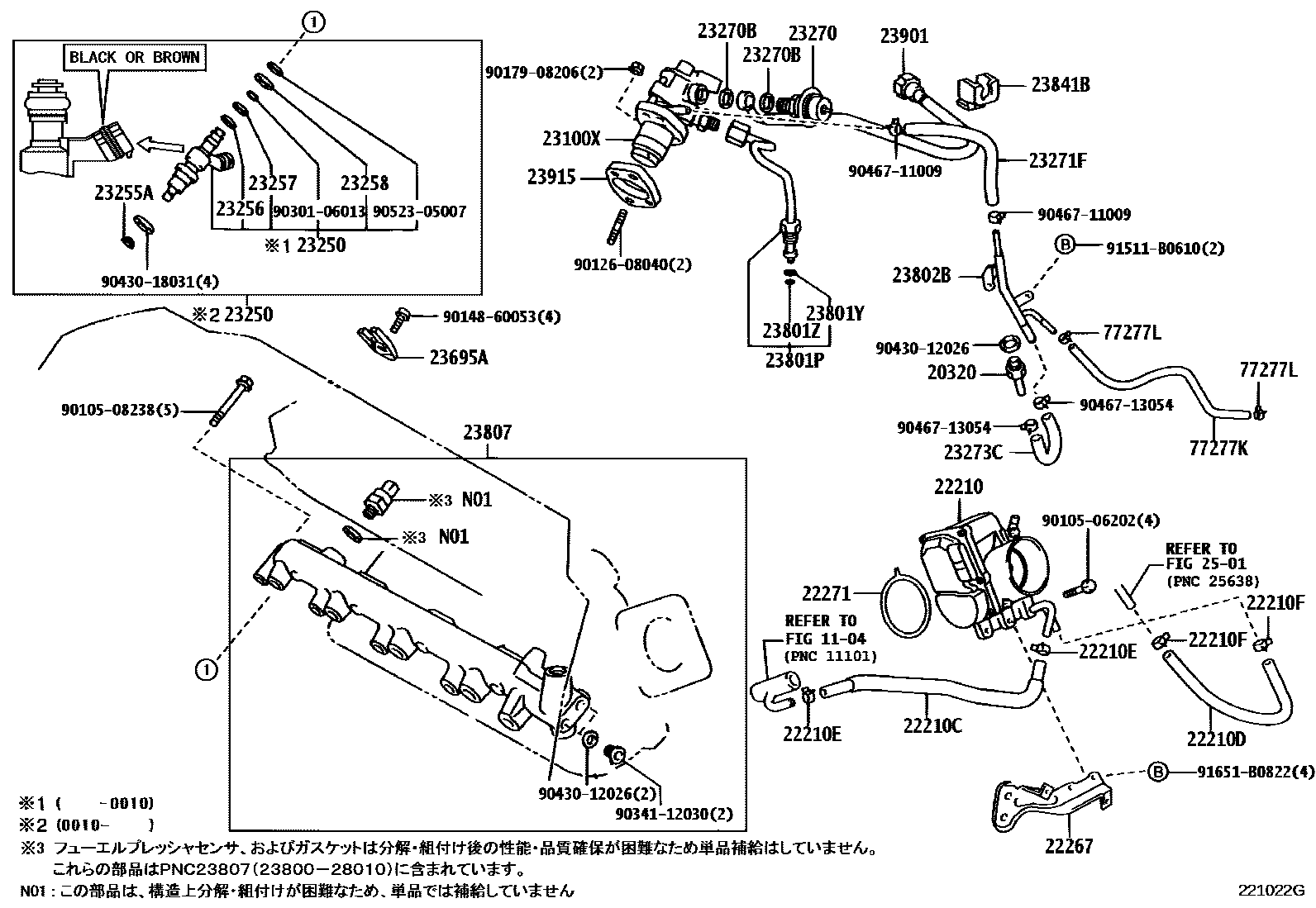

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

20320VALVE ASSY, FUEL RELIEF

main20320-28010i1AZFSE..ACT10200008-200205

main20320-28011i1AZFSE..ACT10200304

22210BODY ASSY, THROTTLE

main22030-28010i1AZFSE..ACT10200008-200111

main22030-28011i1AZFSE..ACT10200111-200205

main22210-22080i1ZZFE..ZCT1#200004-200106

main22210-22130i1ZZFE..ZCT1#200106-200205

22210CHOSE, WATER BY-PASS, NO.1

main16261-28030i1AZFSE..ACT10200008-200205

22210DHOSE, WATER BY-PASS, NO.2

main99555-10300i1AZFSE..ACT10200008-200205

main99555-10500i1AZFSE..ACT10200205

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300×2i1AZFSE..ACT10200008-200205

main96135-51300×2i1AZFSE..ACT10200205

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main96135-41300×2i1AZFSE..ACT10200008-200205

main96135-51300×2i1AZFSE..ACT10200205

22267BRACKET, THROTTLE BODY

main22267-22030i1ZZFE..ZCT1#200205

main22267-28010i1AZFSE..ACT10200205

22271GASKET, THROTTLE BODY

main22271-22040i1ZZFE..ZCT1#200004-200205

main22271-28030i1AZFSE..ACT10200008-200205

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-28040i1AZFSE..ACT10200008-200205

main23100-28041i1AZFSE..ACT10200304-200312

main23100-28042i1AZFSE..ACT10200312-200504

23250INJECTOR ASSY, FUEL

main23209-22040×4i1ZZFE..ZCT1#200004-200205

main23209-28030×4i1AZFSE..ACT10200008-200010

main23209-29025×4i1AZFSE..ACT10200010-200205

23255ASEAL, FUEL INJECTOR

main23255-28010×4i1AZFSE..ACT10200008-200205

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1AZFSE..ACT10200205

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×4i1AZFSE..ACT10200008-200205

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010×4i1AZFSE..ACT10200008-200205

main23258-74010i1AZFSE..ACT10200205

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28040i1AZFSE..ACT10200008-200205

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i1AZFSE..ACT10200008-200205

23271FHOSE, FUEL

main23271-28050i1AZFSE..ACT10200008-200205

23273CHOSE, FUEL, NO.2

main23273-28010i1AZFSE..ACT10200205

23695ACLAMP, NOZZLE HOLDER

main23695-28010×4i1AZFSE..ACT10200205

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-28040i1AZFSE..ACT10200008-200105

main23801-28041i1AZFSE..ACT10200105-200205

main23801-28043i1AZFSE..ACT10200205

23801YGASKET

main90430-07006i1AZFSE..ACT10200008-200205

23801ZRING, SNAP(FOR FUEL PIPE)

main90520-05003i1AZFSE..ACT10200008-200205

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-28020i1AZFSE..ACT10200205

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE..ZCT1#200205

main23807-28020i1AZFSE..ACT10200008-200105

main23807-28021i1AZFSE..ACT10200105-200205

main23807-28023i1AZFSE..ACT10200205

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21020i1AZFSE..ACT10; 1ZZFE..ZCT1#200205

23901TUBE SUB-ASSY, FUEL

main23901-22120i1ZZFE..ZCT1#200004-200205

main23901-28040i1AZFSE..ACT10200205-200404

main23901-28041i1AZFSE..ACT10200405

23915INSULATOR, FUEL PUMP

main23915-46010i1AZFSE..ACT10200008-200009

main23915-46011i1AZFSE..ACT10200009-200205

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

77277KHOSE, FUEL(FOR RETURN HOSE)

main23274-28010iACT10200008-200205

77277LCLIP, HOSE(FOR RETURN HOSE)

main90467-11009×2iACT10200008-200205

main96135-51100×2iACT10200205

9010506202

main90105-06202

9010508238

main90105-08238

9012608040

main90126-08040

9014860053

main90148-60053

9017908206

main90179-08206

9030106013

main90301-06013

9034112030

main90341-12030

9043012026

main90430-12026

9043018031

main90430-18031

9046711009

main90467-11009

9046713054

main90467-13054

9052305007

main90523-05007

91511B0610

main91511-B0610

91651B0822

main91651-B0822

45 parts on this diagram · 5 diagrams in section
