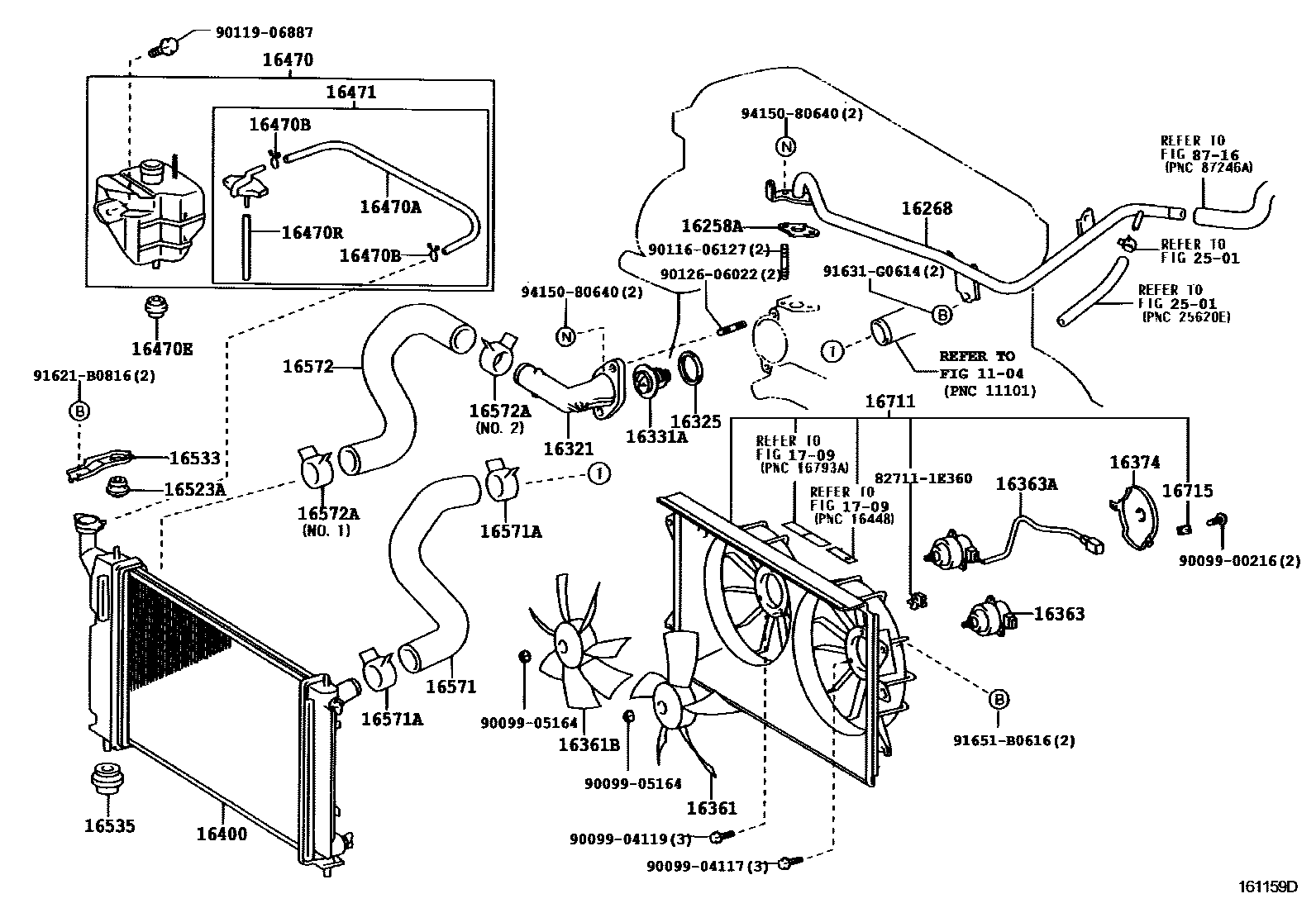

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..ACT10200008-200304

sub16258-28030

main16258-28011i1AZFSE..ACT10200304-200308

sub16258-28030

main16258-28030i1AZFSE..ACT10200308

16268PIPE, WATER BY-PASS, NO.1

main16268-22080i1ZZFE..ZCT1#200111-200205

sub16268-22081

main16268-22100i1ZZFE..ZCT1#200004-200111

sub16268-22101

main16268-28020i1AZFSE..ACT10200008-200205

16321INLET, WATER

main16321-22070i1ZZFE..ZCT1#200004-200205

main16321-28010i1AZFSE..ACT10200008-200205

16325GASKET, WATER INLET HOUSING, NO.1

main16325-0H020i1ZZFE..ZCT1#200406

main16325-28010i1AZFSE..ACT10200308

main16325-62010i1AZFSE..ACT10200004-200308

main16325-62010i1ZZFE..ZCT1#200205

16331ATHERMOSTAT

main90916-03084i1ZZFE..ZCT1#200004-200112

sub90916-03129

main90916-03125i1ZZFE..ZCT1#200007-200205

main90916-03127i1AZFSE..ACT10200112-200205

main90916-03129i1ZZFE..ZCT1#200205

16361FAN

main16361-21060i1ZZFE..ZCT1#200205

main16361-22050i1AZFSE..ACT10200004-200401

main16361-22051i1AZFSE..ACT10200401

16361BFAN, NO.2

main16361-22090i1ZZFE..ZCT1#200004-200205

sub16361-22091

main16361-28080i1AZFSE..ACT10200008-200401

main16361-28081i1AZFSE..ACT10200401

16363MOTOR, COOLING FAN

main16363-23010i1ZZFE..ZCT1#200004-200205

main16363-23020i1ZZFE..ZCT1#200205-200304

main16363-28150i1ZZFE..ZCT1#200305

16363AMOTOR, COOLING FAN, NO.2

main16363-22080i1ZZFE..ZCT1#200004-200205

main16363-28070i1AZFSE..ACT10200008-200304

sub16363-28210

main16363-28210i1AZFSE..ACT10200305

sub16363-37090

16374INSULATOR, COOLING FAN MOTOR

main16366-28120i1AZFSE..ACT10200008-200205

16400RADIATOR ASSY

main16400-21190i1AZFSE..ACT10200112-200205

main16400-22140i1ZZFE..ZCT1#200004-200112

sub16400-21190

main16400-22170i1ZZFE..ZCT15200205

main16400-28350i1ZZFE..ZCT10200205

16470TANK ASSY, RADIATOR RESERVE

main16470-22070i1ZZFE..ZCT1#200004-200205

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1ZZFE..ZCT1#200004-200205

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1AZFSE..ACT10200004-200112

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-18010i1ZZFE..ZCT1#200004-200205

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1ZZFE..ZCT1#200004-200205

16471CAP SUB-ASSY, RESERVE TANK

main16405-22030i1ZZFE..ZCT1#200004-200205

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1AZFSE..ACT10200004-200205

16533SUPPORT, RADIATOR, UPPER

main16533-22030i1ZZFE..ZCT1#200004-200205

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1ZZFE..ZCT1#200106-200205

main16535-28030i1AZFSE..ACT10200106-200205

main16535-74210i1AZFSE..ACT10200004-200106

16571HOSE, RADIATOR, INLET

main16571-22090i1ZZFE..ZCT1#200004-200112

sub16571-22130

main16571-22130i1ZZFE..ZCT1#200112-200205

main16571-28070i1AZFSE..ACT10200008-200205

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1ZZFE..ZCT1#200004-200205

main90466-37002i1AZFSE..ACT10200008-200205

main90467-34003i1ZZFE..ZCT1#200004-200204

sub90467-34004

main90467-34004i1ZZFE..ZCT1#200204-200205

16572HOSE, RADIATOR, OUTLET

main16572-22090i1ZZFE..ZCT1#200004-200205

main16572-28040i1AZFSE..ACT10200008-200205

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1ZZFE..ZCT1#200004-200205

main90467-37005i1AZFSE..ACT10200204-200205

main90467-37006i1ZZFE..ZCT1#200004-200204

sub90467-37005

16711SHROUD, FAN

main16711-22070i1ZZFE..ZCT1#200004-200205

main16711-22120i1ZZFE..ZCT1#200205

sub16711-22121

main16711-28170i1AZFSE..ACT10200008-200205

16715BRACKET, FAN SHROUD

main88688-18030i1AZFSE..ACT10200008-200205

1709

2501

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9011606127

main90116-06127

9011906887

main90119-06887

9012606022

main90126-06022

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

42 parts on this diagram · 6 diagrams in section
