ENGINE OVERHAUL GASKET KIT

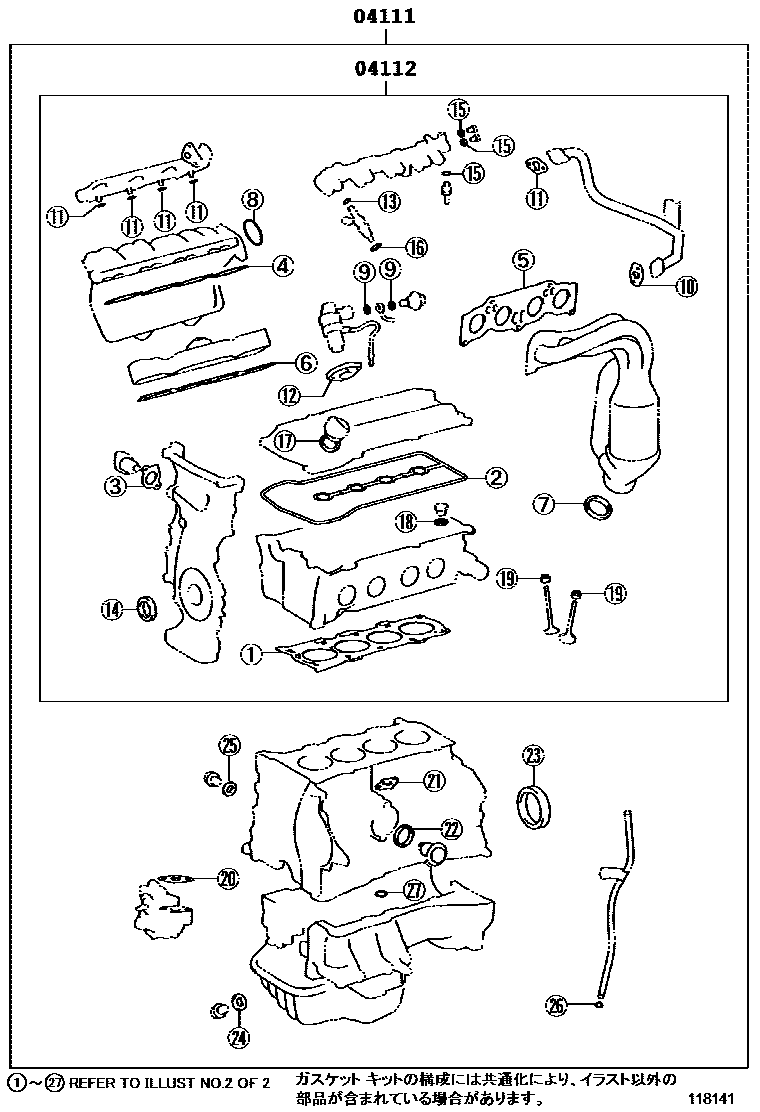

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-22120i200004-200105
sub04111-22150
main04111-22130i200004-200205
sub04111-22131
main04111-22131i200206-200302
sub04111-22132
main04111-22132i200302-200311
sub04111-22512
main04111-22150i200105-200206
sub04111-22151
main04111-22151i200206-200302
sub04111-22152
main04111-22152i200302-200311
sub04111-22511
main04111-22511i200311
sub04111-22513
main04111-22512i200311
sub04111-22850
main04111-28061i200008-200104
sub04111-28062
main04111-28062i200104-200211
sub04111-28063
main04111-28063i200211-200212
sub04111-28064
main04111-28064i200212-200304
sub04111-28065
main04111-28065i200304-200311
sub04111-28350
main04111-28340i200311-200504
sub04111-28341
04112GASKET KIT, ENGINE VALVE GRIND
main04112-22120i200004-200105
sub04112-22150
main04112-22130i200004-200205
sub04112-22131
main04112-22131i200206-200302
sub04112-22132
main04112-22132i200302-200311
sub04112-22482
main04112-22150i200105-200206
sub04112-22151
main04112-22151i200206-200302
sub04112-22152
main04112-22152i200302-200311
sub04112-22481
main04112-22481i200311
main04112-22482i200311
sub04112-22700
main04112-28061i200008-200104
sub04112-28062
main04112-28062i200104-200211
sub04112-28063
main04112-28063i200211-200212
sub04112-28064
main04112-28064i200212-200304
sub04112-28065
main04112-28065i200304-200311
sub04112-28340
main04112-28330i200311-200504
sub04112-28331

2 parts on this diagram · 4 diagrams in section
