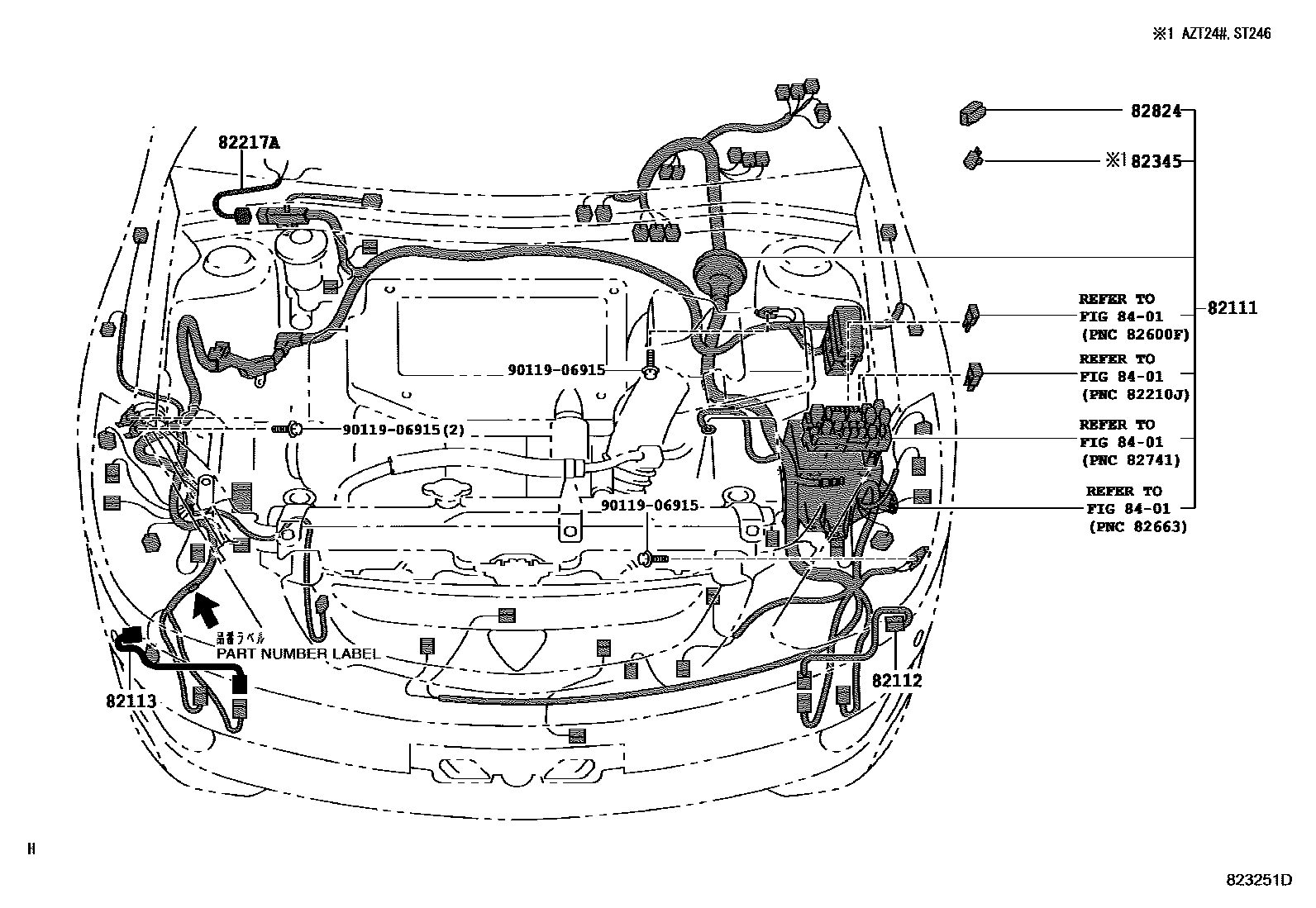

82111WIRE, ENGINE ROOM MAIN

main82111-21420iAZT241..Z; AZT246..Z200209-200501

main82111-21430iAZT24#..ZT200209-200501

main82111-21530supersedes 82111-21580iAZT24#..Z; AZT24#..ZT200501

main82111-21300supersedes 82111-21560iZZT241..X200311-200501

main82111-21440supersedes 82111-21550iST246200209-200501

main82111-21460supersedes 82111-21550iST246200209-200501

main82111-21470supersedes 82111-21550iST246200209-200501

main82111-21490supersedes 82111-21590iZZT241..Z200306-200501

main82111-21520supersedes 82111-21590iZZT241..Z200501

main82111-21570supersedes 82111-21590iZZT241..Z200501

82112WIRE, ENGINE ROOM, NO.2

main82112-21030iAZT24#,ST246200209-200311

main82112-21040iAZT24#,ST246200501

82113WIRE, ENGINE ROOM, NO.3

main82113-21010iAZT24#,ST246200311-200501

main82113-21020iAZT24#,ST246200501

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-20090iAZT24#,ST246,ZZT241200209-200501

82345DIODE

main82345-32010iAZT24#,ST246..GT4,ZT; AZT24#..Z200501

82824CONNECTOR, WIRING HARNESS

main82824-44030iAZT24#,ST246,ZZT241200209-200501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915
