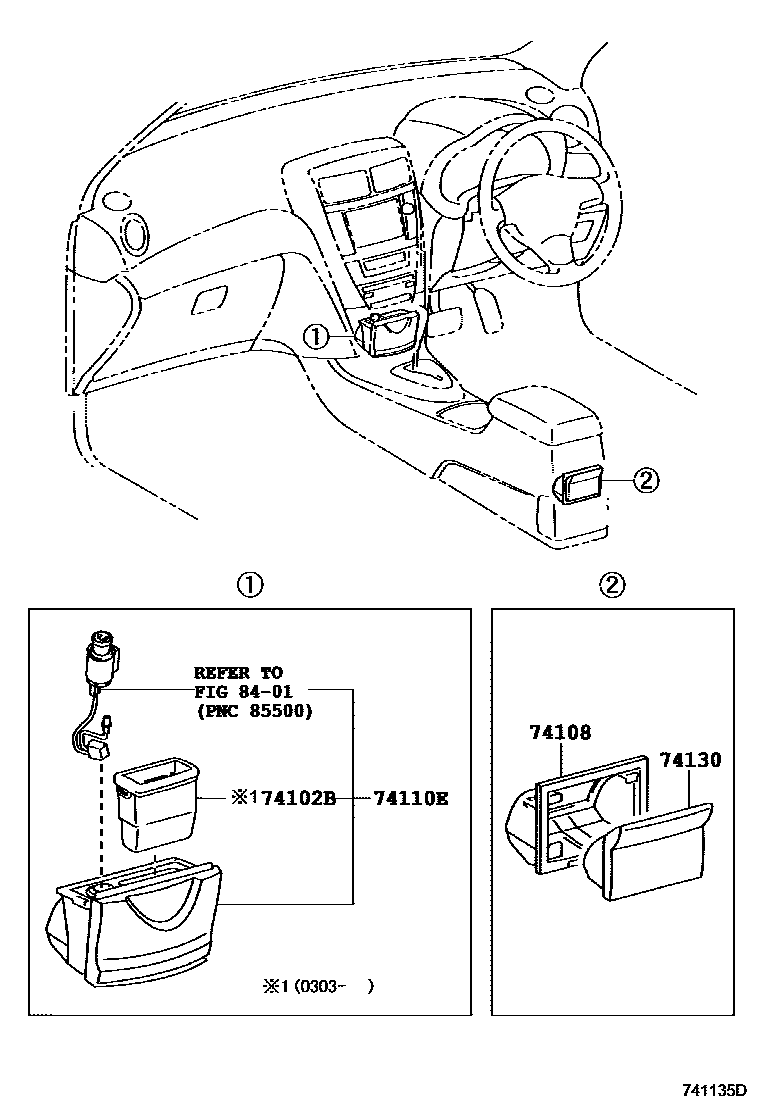

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-21020iAZT24#,ST246,ZZT241200501-200706

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74135-20090iAZT24#,ST246,ZZT241200501-200706

74110ERECEPTACLE ASSY, FRONT ASH

main74110-21040iAZT24#,ZZT241..X,Z200209-200501

main74110-21050iAZT24#,ST246..GT4,ZT200209-200311

main74110-21070iAZT24#,ST246..GT4,ZT200501-200706

main74110-21060iAZT24#,ZZT241..Z200306-200501

74130RECEPTACLE ASSY, REAR ASH

main74109-20100-B2iAZT24#,ST246,ZZT241200501-200706

DK.GRAY,TRIM1#

main74109-20100-C0iAZT24#,ST246,ZZT241200209-200501

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 1 diagram in section
