BACK DOOR PANEL & GLASS

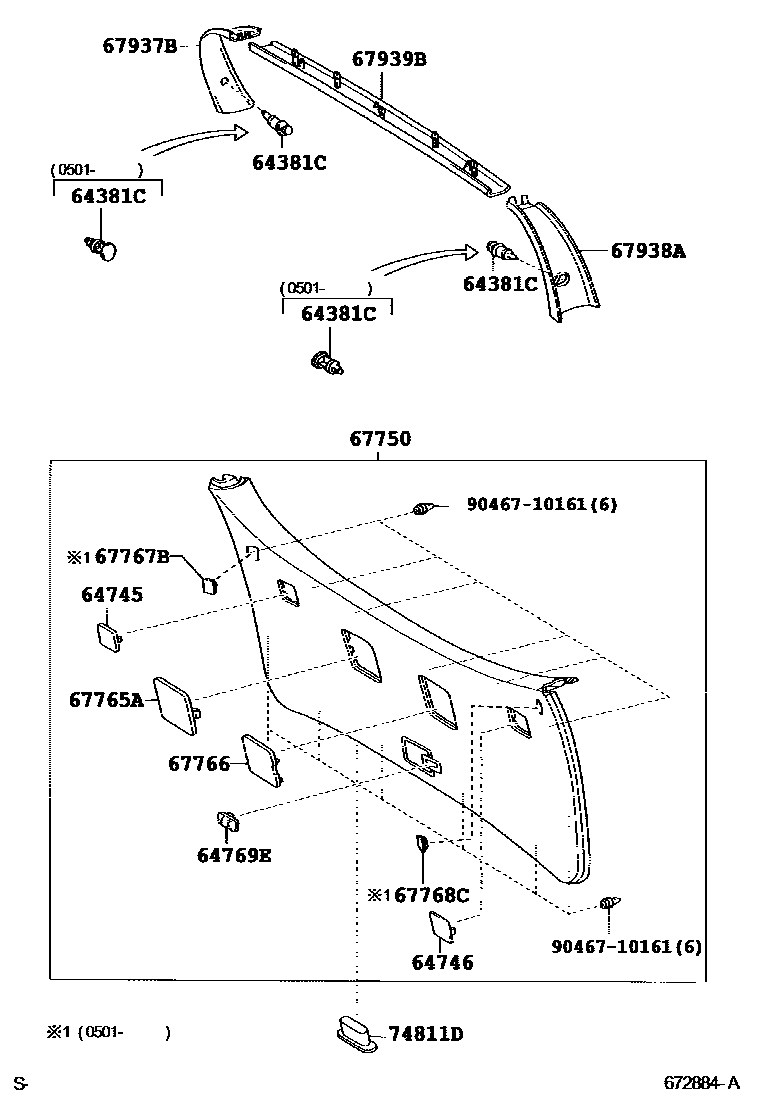

Parts diagram
64381CHANGER, PACKAGE TRAY TRIM
main64381-21010-C0i200209-200501
BLACK,TRIM2#
main64381-21030-B0i200501-200706
DK.GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-21020-B0i200501-200706
DARK GRAY,TRIM1#
main64745-21020-C0i200209-200501
BLACK,TRIM2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-21020-B0i200501-200706
DARK GRAY,TRIM1#
main64746-21020-C0i200209-200501
BLACK,TRIM2#
64769EKNOB, JACK COVER
main64769-20010-B2i200501-200706
DK.GRAY,TRIM1#
sub64769-20010
main64769-20010-C0i200209-200501
BLACK,TRIM2#
sub64769-20010
67750BOARD ASSY, BACK DOOR TRIM
main67750-21050-C0i200209-200501
BLACK,TRIM2#
main67750-21070-B0i200501-200706
DK.GRAY,TRIM1#
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
main67765-21020-B0i200501-200706
DARK GRAY,TRIM1#
main67765-21020-C0i200209-200501
BLACK,TRIM2#
67766COVER, BACK DOOR SERVICE HOLE, NO.2
main67766-21020-B0i200501-200706
DARK GRAY,TRIM1#
main67766-21020-C0i200209-200501
BLACK,TRIM2#
67767BCOVER, BACK DOOR SERVICE HOLE, NO.3
main67767-21020-B0i200501-200706
DK.GRAY,TRIM1#
67768CCOVER, BACK DOOR SERVICE HOLE, NO.4
main67768-21010-B0i200501-200706
DK.GRAY,TRIM1#
67937BGARNISH, BACK DOOR SIDE, RH
main67937-21010-B0i200501-200706
DK.GRAY,TRIM1#
sub67937-21010
main67937-21010-C0i200209-200501
BLACK,TRIM2#
sub67937-21010
67938AGARNISH, BACK DOOR SIDE, LH
main67938-21010-B0i200501-200706
DK.GRAY,TRIM1#
sub67938-21010
main67938-21010-C0i200209-200501
BLACK,TRIM2#
sub67938-21010
67939BGARNISH, BACK DOOR, CENTER
main67939-21010-B0i200501-200706
DK.GRAY,TRIM1#
sub67939-21010
main67939-21010-C0i200209-200501
BLACK,TRIM2#
sub67939-21010
74811DHANDLE, DOOR PULL
main74811-13010-C0i200501-200706
BLACK,TRIM1#
sub74811-13010
main74811-13010-C0i200209-200501
BLACK,TRIM2#
sub74811-13010
9046710161
main90467-10161

14 parts on this diagram · 3 diagrams in section
