04466PAD KIT, DISC BRAKE, REAR

main04466-21010i200209-200501

main04466-32040i200209-200501

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33110i200209-200501

main04479-48030i200501

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32080i200209-200501

main04946-33020i200501

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040i200209-200501

main04948-48010i200501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i200209-200501

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i200501

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2i200501

main47715-32030×2i200501

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060×4i200501

main47716-48020×2i200209-200501

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060×4i200209-200501

main47717-48020×2i200209-200501

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-21030i200501

main47721-32150i200209-200501

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-21030i200209-200501

main47722-32150i200209-200501

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21030i200501

main47730-21040i200501

47731BPISTON, REAR DISC BRAKE

main47731-33040×2i200501

main47731-48020×2i200501

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×2i200501

main90522-43003×2i200501

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21030i200209-200501

main47750-21040i200501

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×4i200209-200501

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2i200209-200501

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2i200209-200501

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

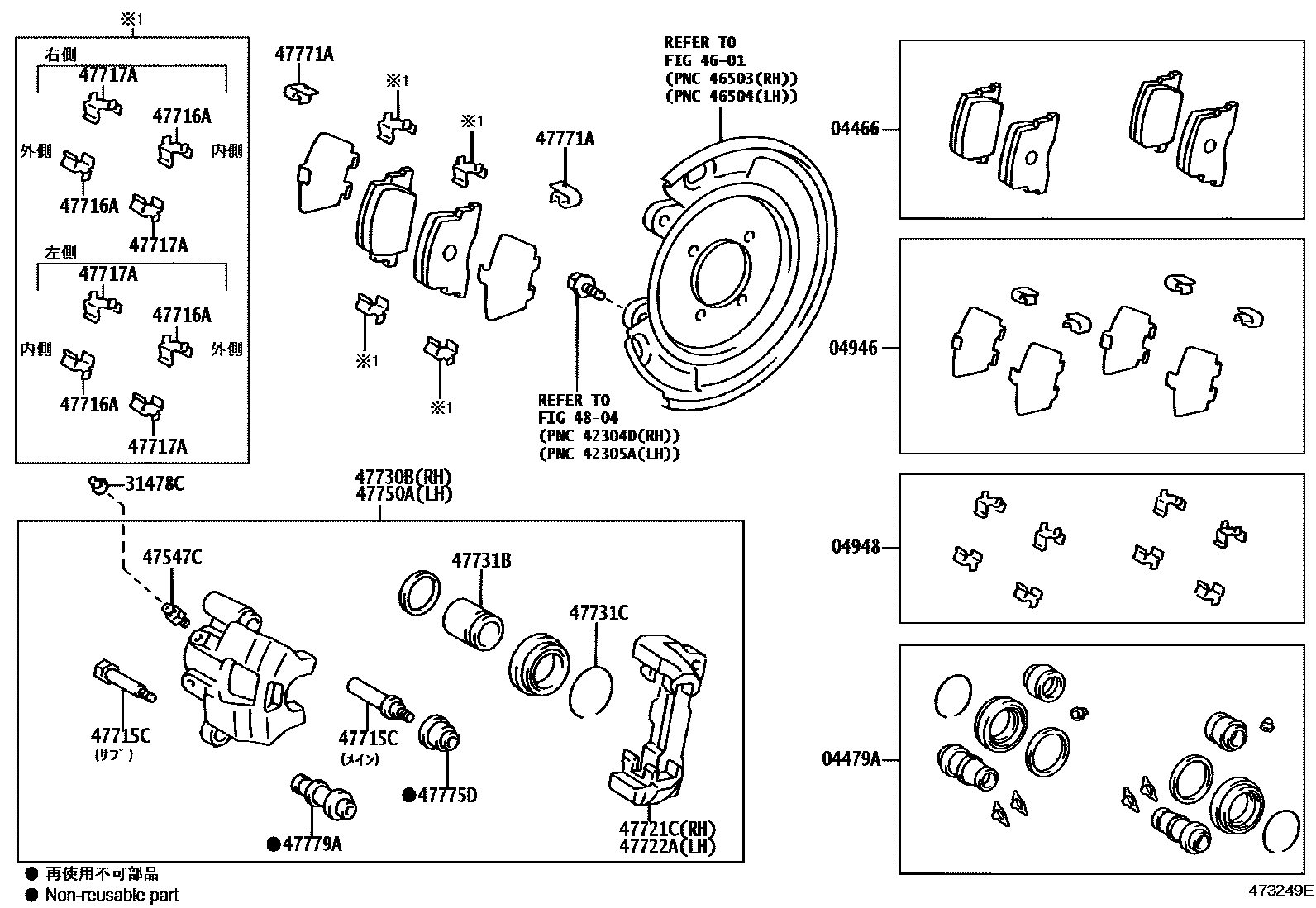

REAR DISC BRAKE CALIPER & DUST COVER
