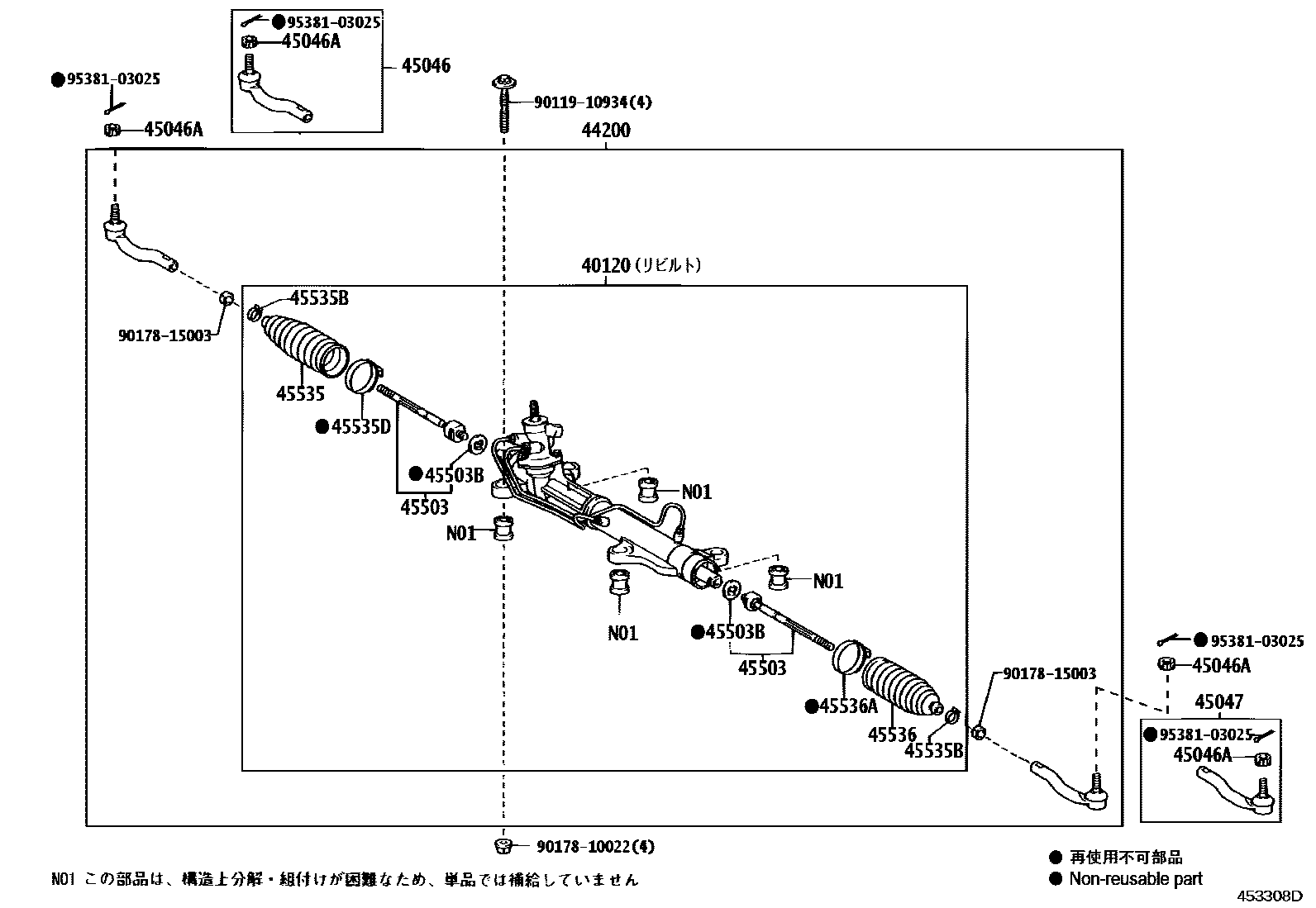

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-21060iAZT241,ZZT241200209-200706

main40120-21080iAZT246200209-200706

main40120-21090iST246200209-200706

44200LINK ASSY, POWER STEERING

main44200-21070iAZT241,ZZT241200209-200501

sub44200-68010

main44200-21090iAZT246200209-200501

main44200-21100iST246200209-200501

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iAZT246,ST246200209-200706

main45047-49025iAZT241,ZZT241200209-200706

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAZT24#,ST246,ZZT241200209-200501

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iAZT246,ST246200209-200706

main45046-49095iAZT241,ZZT241200209-200706

45503END SUB-ASSY, STEERING RACK

main45503-19275iAZT246,ST246200209-200501

main45503-29825iAZT241,ZZT241200209-200501

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009iAZT24#,ST246,ZZT241200209-200501

45535BOOT, STEERING RACK, NO.1

main45535-13010iAZT24#,ST246,ZZT241200209-200501

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19012iAZT24#,ST246,ZZT241200209-200501

sub90467-19019

main90467-19019iAZT24#,ST246,ZZT241200501

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iAZT24#,ST246,ZZT241200209-200501

45536BOOT, STEERING RACK, NO.2

main45535-13010iAZT24#,ST246,ZZT241200209-200501

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iAZT24#,ST246,ZZT241200209-200501

9011910934

main90119-10934

9017810022

main90178-10022

9017815003

main90178-15003

9538103025

main95381-03025

16 parts on this diagram · 3 diagrams in section
