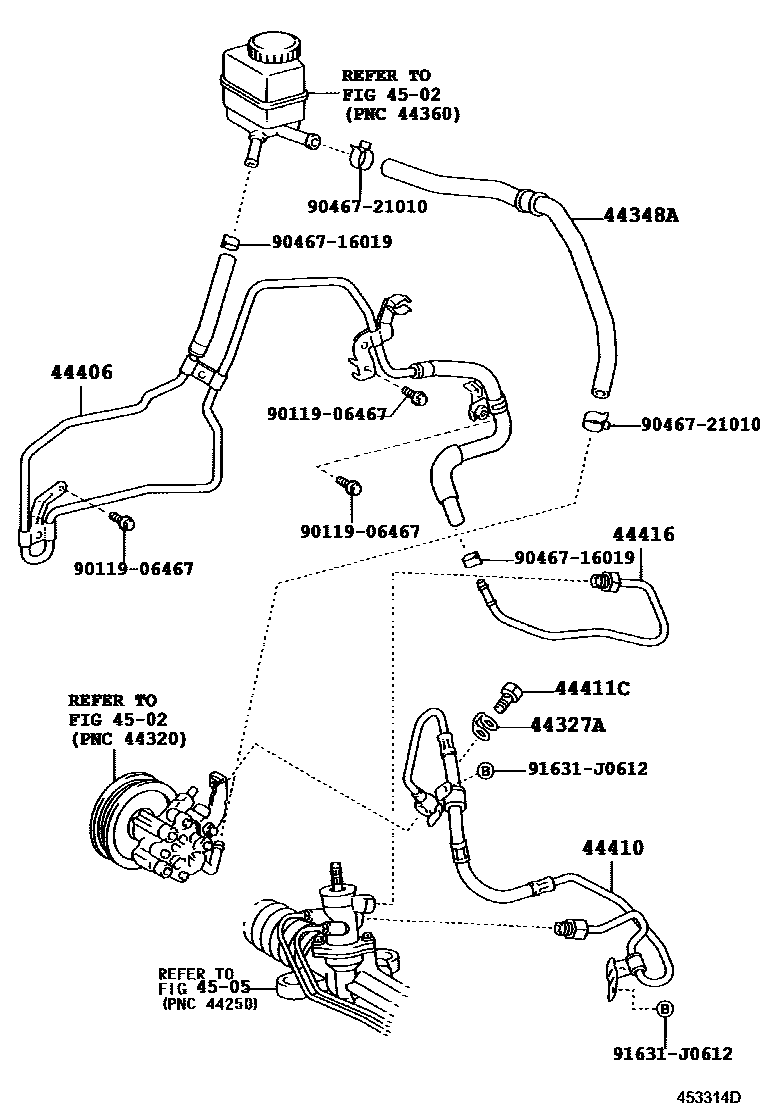

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAZT24#,ST246200209-200501

main44327-30030iAZT24#,ST246200507

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20630iZZT241200209-200501

main44348-20640iAZT24#200501-200706

main44348-21050iST246200209-200501

44406TUBE SUB-ASSY, RETURN

main44406-20830iZZT241200209-200501

main44406-20840iAZT241200501

main44406-21090iAZT246200209-200501

main44406-21100iST246200501

44410TUBE ASSY, PRESSURE FEED

main44410-21040iAZT246200209-200501

main44410-21050iST246200501

main44410-2B330iZZT241200209-200501

main44410-2B340iAZT241200209-200501

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iAZT24#200209-200501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20250iAZT241,ZZT241200209-200501

main44416-20260iAZT246,ST246200209-200501

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906467

main90119-06467

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

12 parts on this diagram · 4 diagrams in section
