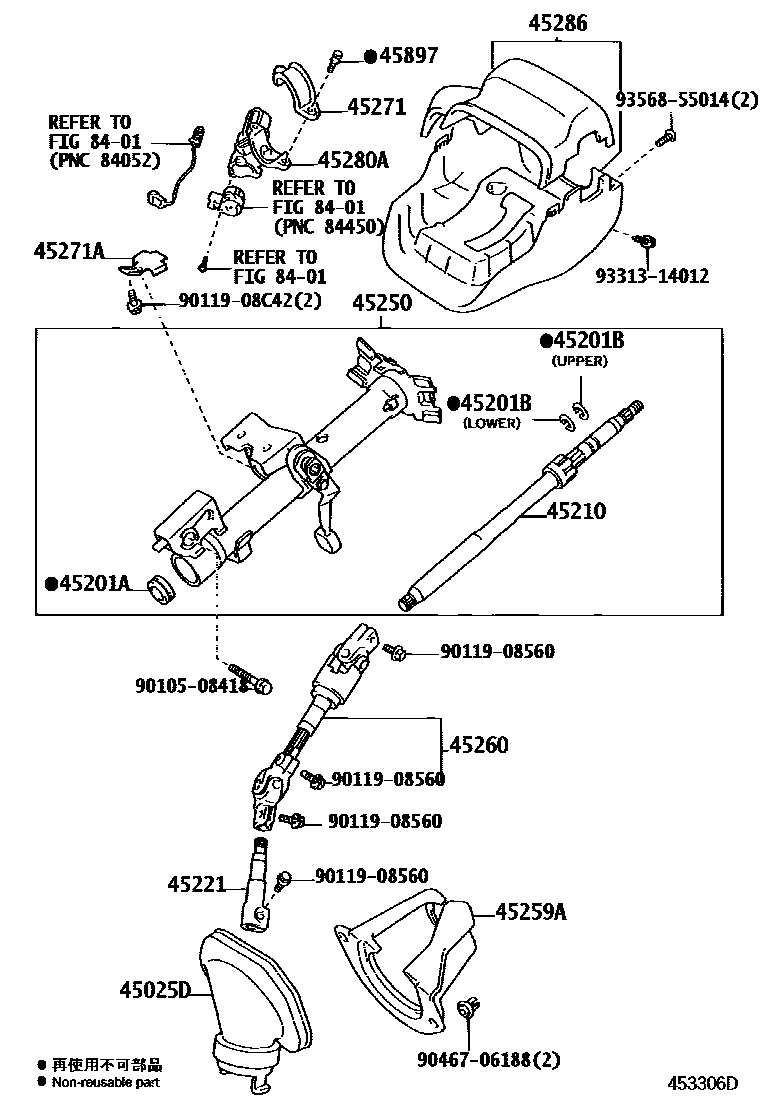

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20500iAZT241,ZZT241200209-200501

main45025-20510iAZT246,ST246200209-200501

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-42010iAZT24#,ST246,ZZT241200209-200501

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAZT24#,ST246,ZZT241200209-200501

main90520-17269iAZT24#,ST246,ZZT241200501

45210SHAFT ASSY, STEERING MAIN

main45210-13010iAZT24#,ST246,ZZT241200209-200501

45221SHAFT, STEERING INTERMEDIATE

main45221-12291iAZT241,ZZT241200209-200501

45250COLUMN ASSY, STEERING

main45250-21100iAZT24#,ST246,ZZT241200209-200501

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-20080iAZT241,ZZT241200209-200501

main45259-20090iAZT246,ST246200209-200501

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-21010iAZT241,ZZT241200209-200501

main45260-21020iAZT246,ST246200209-200501

main45260-21040iAZT241,ZZT241200501

main45260-21050iAZT246,ST246200501

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iAZT24#,ST246,ZZT241200209-200501

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-21010iAZT24#,ST246,ZZT241200405-200501

main45271-52010iAZT24#,ST246,ZZT241200209-200405

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-13020iAZT24#,ST246,ZZT241200209-200501

45286COVER, STEERING COLUMN

main45286-21901-B0iAZT24#,ST246,ZZT241200501

DK.GRAY,TRIM1#

main45286-21901-C0iAZT24#,ST246,ZZT241200209-200501

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAZT24#,ST246,ZZT241200209-200501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508418

main90105-08418

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
