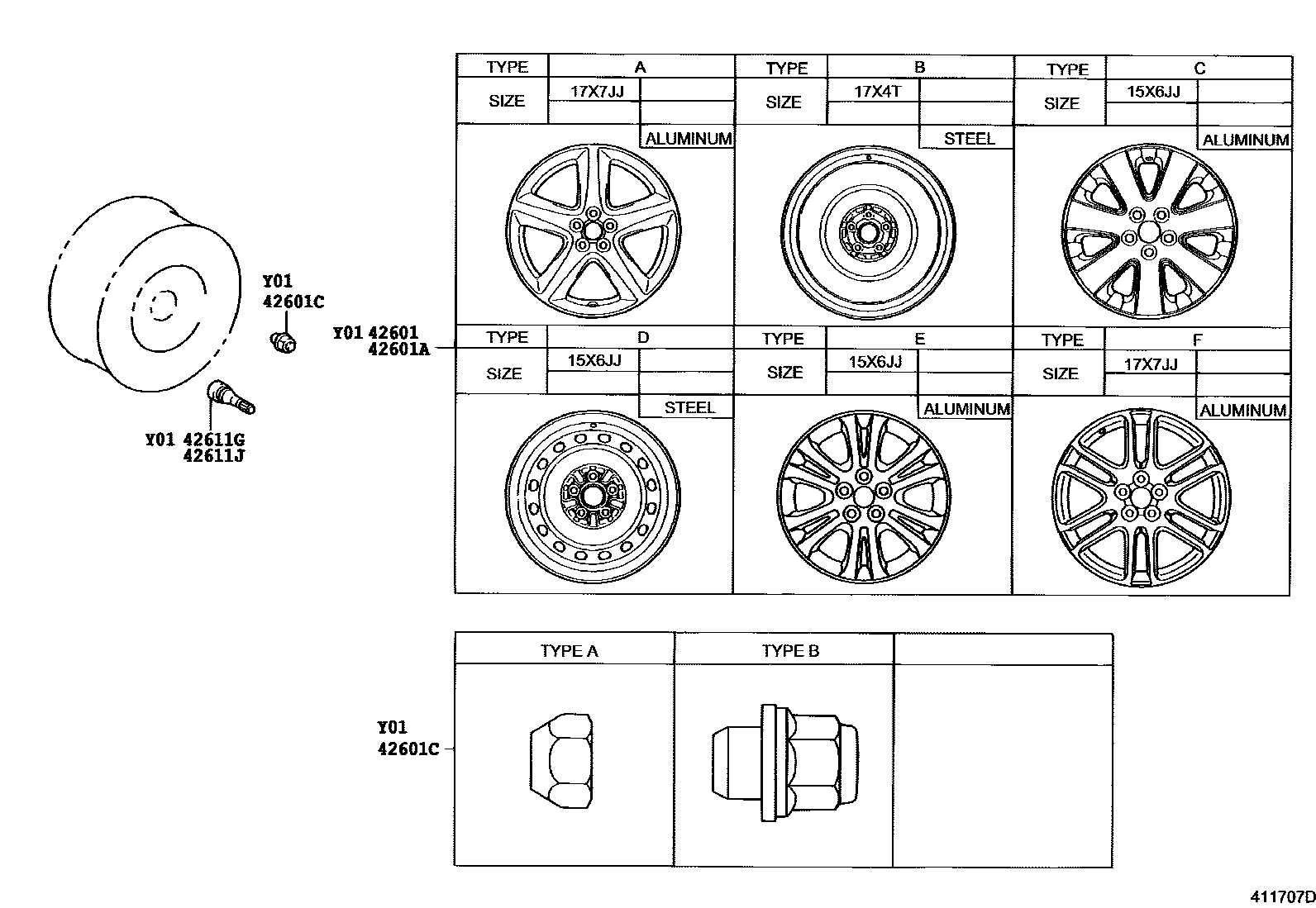

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-21140×4iAZT24#,ST246..GT4,ZT200209-200501

main42611-21180×4iAZT24#,ST246..GT4,ZT; ZZT241..Z200501-200706

main42611-20A00×4supersedes 42611-32330iAZT24#,ZZT241..X,Z200501-200706

main42611-21160×4supersedes 42611-32330iAZT24#,ZZT241..X,Z200209-200501

42601AWHEEL, DISC (FOR SPARE)

main42611-21150iAZT24#,ST246,ZZT241200209-200501

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01007iAZT24#,ST246..GT4,ZT; AZT24#,ZZT241..X,Z; ZZT241..Z200501-200706

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAZT24#,ST246,ZZT241200209-200501

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAZT24#,ST246,ZZT241200209-200501

5 parts on this diagram · 4 diagrams in section
