TRANSFER ASSEMBLY & GASKET KIT

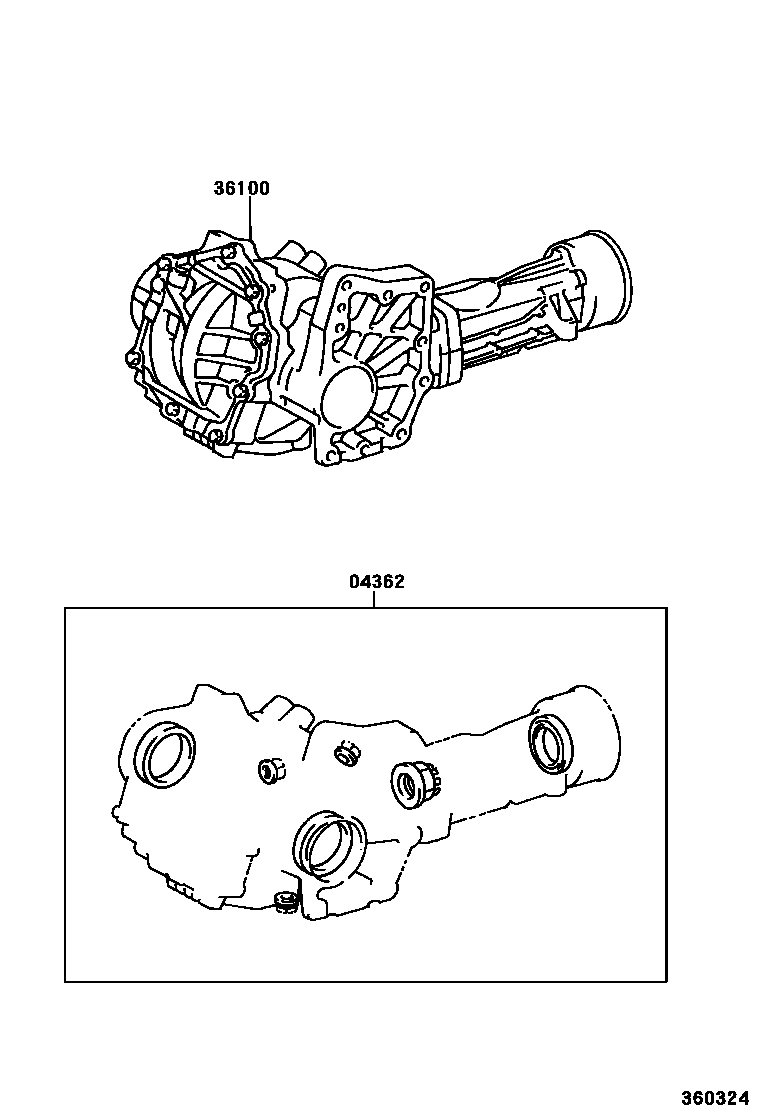

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-21030i200209-200404
sub04362-48010
main04362-48010i200501-200706
main04362-52010i200209-200404
sub04362-52011
main04362-52011i200501-200706
36100TRANSFER ASSY
main36100-21050i200209-200706
main36100-21061i200209-200511
sub36100-21062
main36100-21062i200511-200706

2 parts on this diagram · 2 diagrams in section
