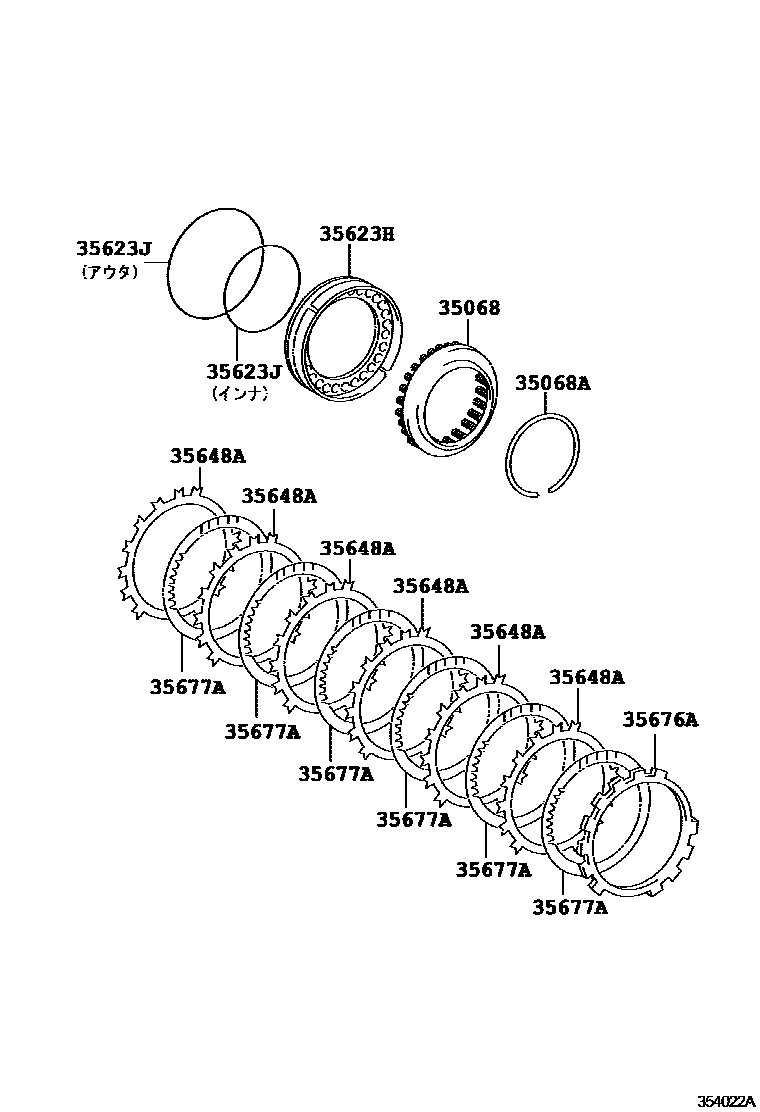

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U140F 0002 1U341E 0003 1A247E,A248F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iAZT24#200209-200501

main35068-21010iST246200209-200501

main35068-52030iZZT241200209-200501

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAZT24#200501

main90520-99035iST246200501

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20020iAZT24#200209-200501

main35623-21010iST246200209-200501

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iAZT24#200209-200501

main90301-99096iST246200209-200501

main90301-99098iST246200501

main90301-99131iAZT24#200209-200501

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×5iAZT24#200209-200501

main35692-21010×7iST246200209-200501

main35692-21011×7iST246200509

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12010iAZT24#200209-200501

main35678-21010iST246200209-200501

main35678-21020iST246200501

main35678-21030iST246200209-200501

main35678-21040iST246200209-200501

main35678-21050iST246200209-200501

main35678-21060iST246200501

main35678-21070iST246200209-200501

main35678-21080iST246200209-200501

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32080×5iAZT24#200209-200501

main35682-21010×7iST246200209-200501

7 parts on this diagram · 3 diagrams in section
