VENTILATION HOSE

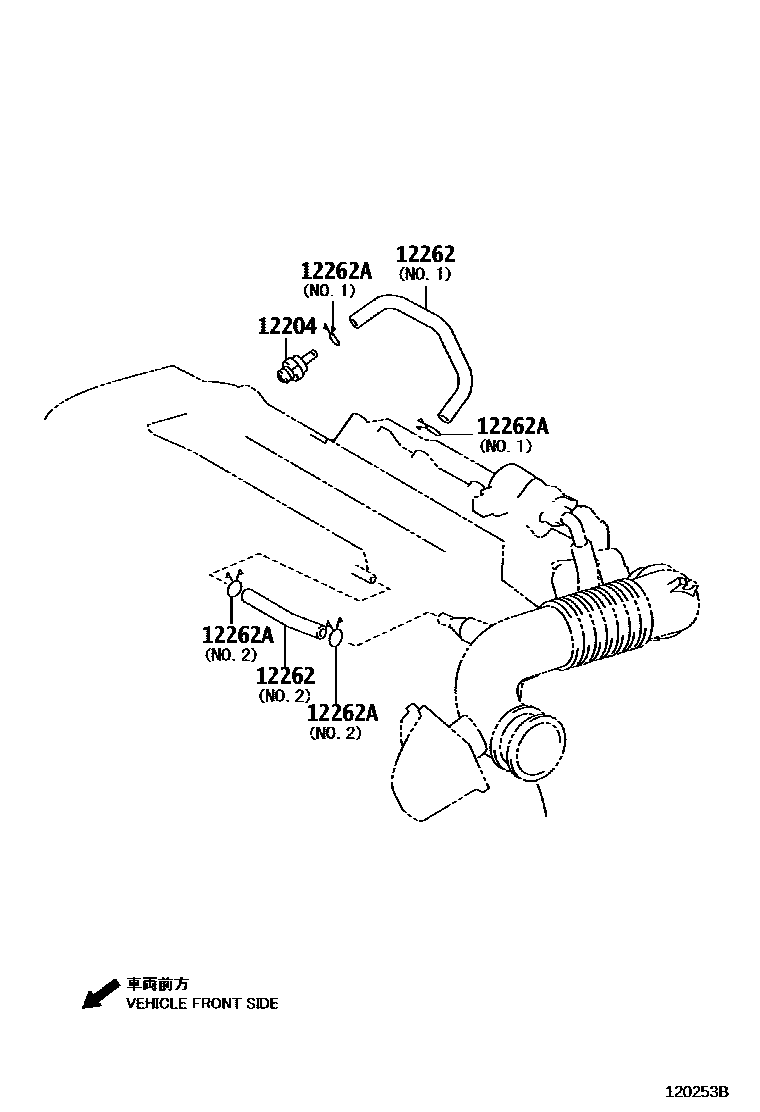

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22050i200209-200405
sub12204-22051
main12204-22051i200405-200501
main12204-28020i200209-200501
main12204-88581i200209-200501
12262HOSE, VENTILATION, NO.2
main12262-0D050i200406-200501
main12262-22040i200406-200501
main12262-22040i200209-200406
main12262-28030i200209-200501
main12262-28040i200209-200501
main12262-88580i200209-200501
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-18002i200403-200501
main90467-13103i200209-200501
main90467-19003i200209-200501
main90467-24038i200209-200501
main90467-26007i200209-200501

3 parts on this diagram · 3 diagrams in section
