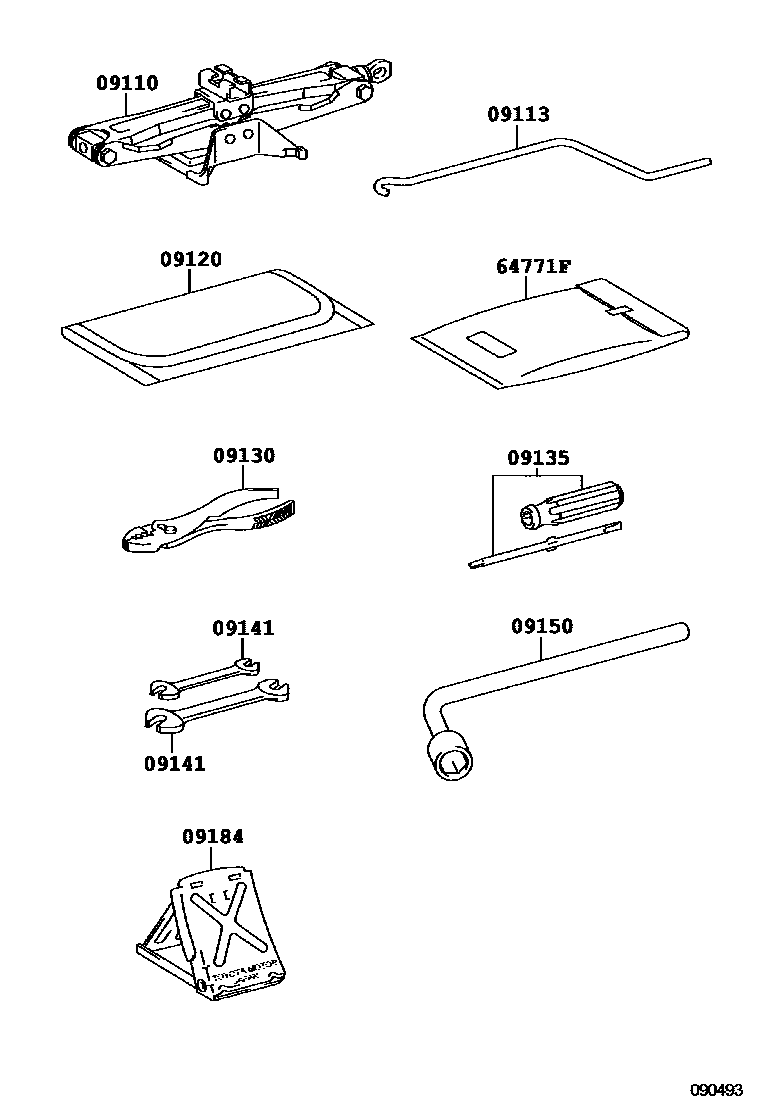

STANDARD TOOL

09110JACK ASSY

main09111-0W041iAZT24#,ST246,ZZT241200209-200706

sub09111-02090

09113HANDLE, JACK

main09113-20030iAZT24#,ST246,ZZT241200209-200501

sub09113-20050

09120BAG, TOOL

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iAZT24#,ST246,ZZT241200209-200501

09184STOPPER, WHEEL

main09184-00010

64771FCOVER, SPARE WHEEL

main64771-44010iAZT24#,ST246,ZZT241200406-200501

main64771-63010iAZT24#,ST246,ZZT241200311-200406

sub64771-44010

9 parts on this diagram · 1 diagram in section
