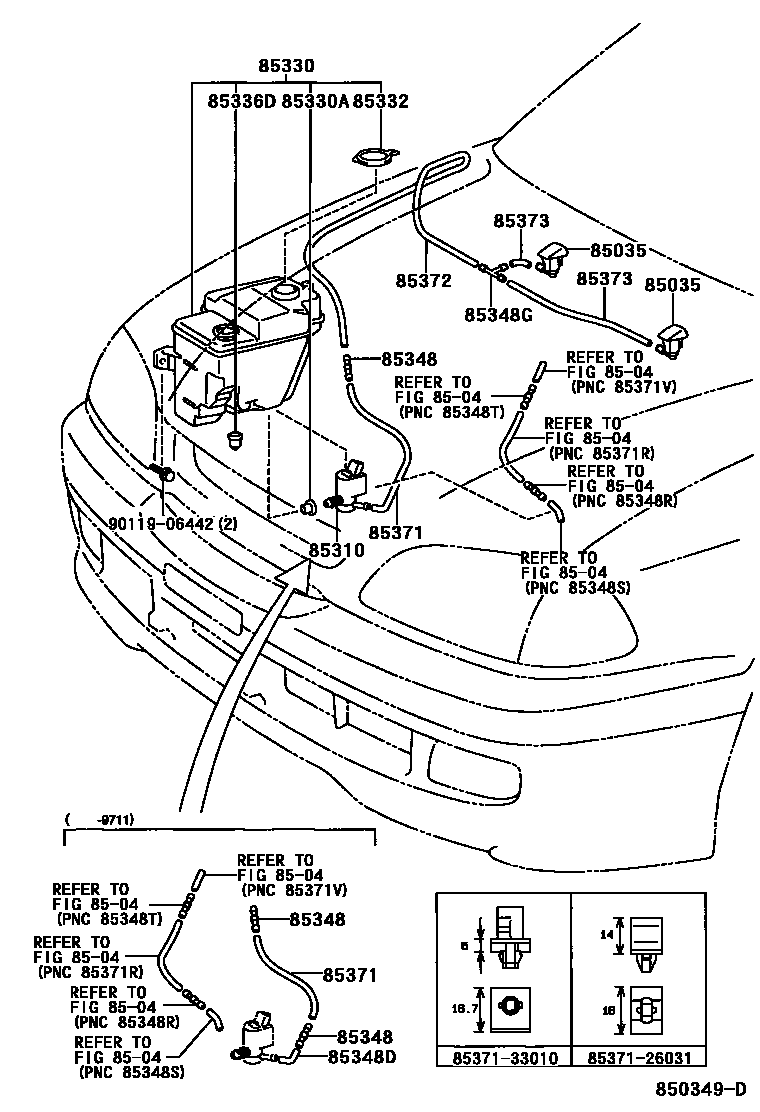

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050iAT211,CT216,ST21#199708

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iAT211,CT216,ST21#199708

85330JAR ASSY, WINDSHIELD WASHER

main85315-20390iAT211,CT216,ST21#199708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT211,CT216,ST21#199711

85332CAP, WINDSHIELD WASHER JAR

main85316-12290iAT211,CT216,ST21#199708

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iAT211,CT216,ST21#199711

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAT211,CT216,ST21#199708-199711

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAT211,CT216,ST21#199708-199711

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iAT211,CT216,ST21#199708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT211,CT216,ST21#199708-199711

main90446-07001iAT211,CT216,ST21#199711

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33224iAT211,CT216,ST21#199708

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT211,CT216,ST21#199708

8537126031HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26031

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906442

main90119-06442

16 parts on this diagram · 1 diagram in section
