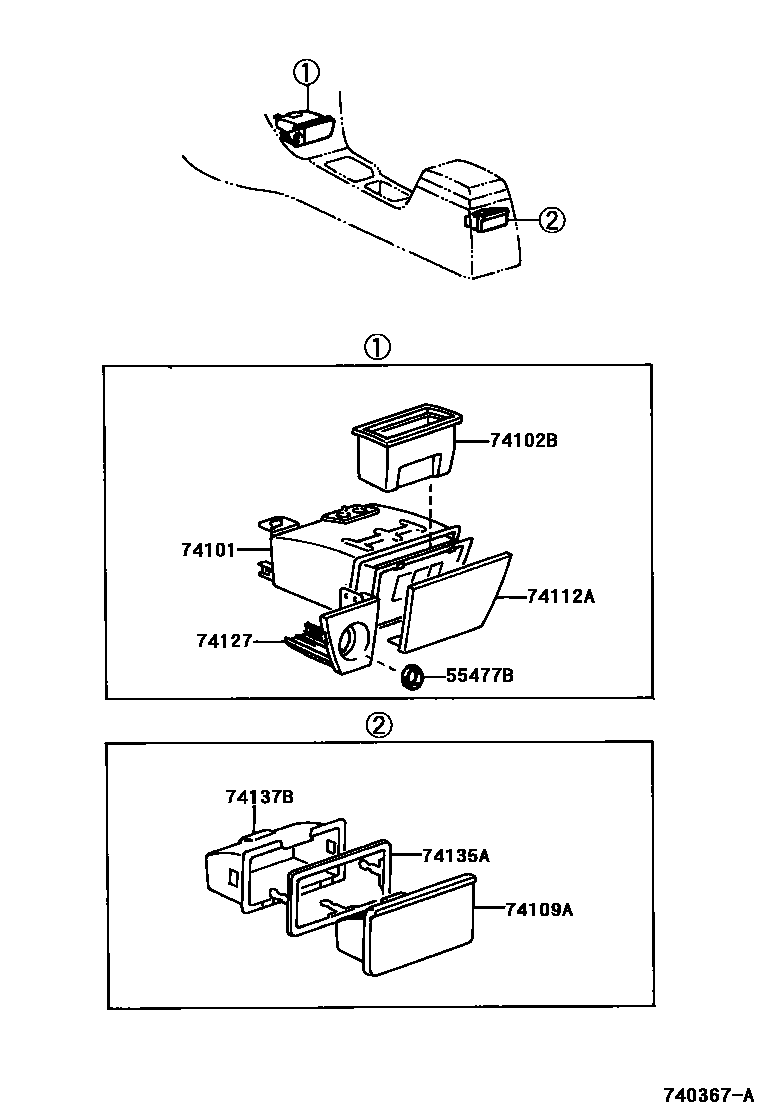

ASH RECEPTACLE

55477BBEZEL, CIGARETTE LIGHTER HOLE

main55477-32030iAT211,CT216,ST21#..E,G199708-199912

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-21010iAT211,CT216,ST21#199708

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-21010iAT211,CT216,ST21#199708

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-12020-B3iAT211,CT216,ST21#199708-199912

MD.CHARCOAL,TRIM1#

main74109-12020-B4iAT211,CT216,ST21#199912

DK.CHARCOAL,TRIM2#

74112ADOOR, FRONT ASH RECEPTACLE

main74112-21010iAT211,CT216,ST21#..E,G199708

main74112-21020iST215..5F..GTT;AT211,CT216,ST21#..E,G,GT199708-199912

main74112-21040iST21#..GT,GTT199912

74127BEZEL, FRONT ASH RECEPTACLE

main74127-21010iAT211,CT216,ST21#..E,G199708

main74127-21020iST215..5F..GTT;AT211,CT216,ST21#..E,G,GT199708-199912

main74127-21040iST21#..GT,GTT199912

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12020iAT211,CT216,ST21#199708

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iAT211,CT216,ST21#199708

8 parts on this diagram · 1 diagram in section
