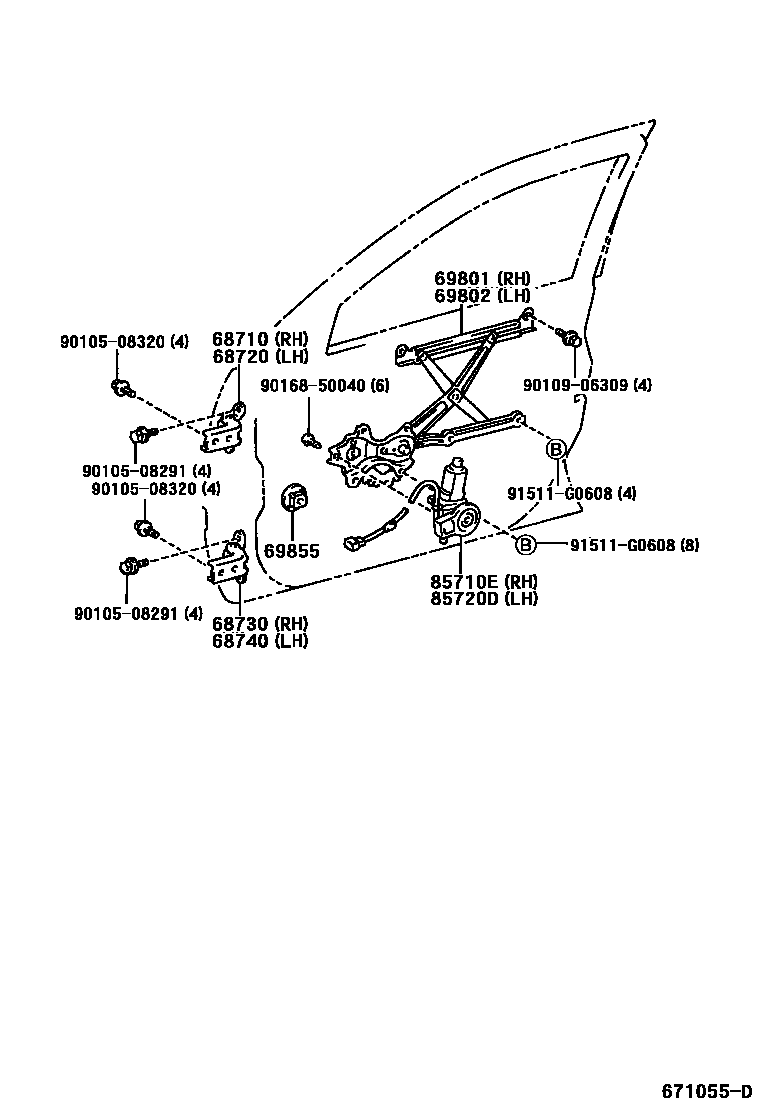

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iAT211,CT216,ST21#199708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iAT211,CT216,ST21#199708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12110iAT211,CT216,ST21#199708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12110iAT211,CT216,ST21#199708

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20280iAT211,CT216,ST21#199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20300iAT211,CT216,ST21#199708

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iAT211,CT216,ST21#199708

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-21030iAT211,CT216,ST21#199708

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-21020iAT211,CT216,ST21#199708

9010508291

main90105-08291

9010508320

main90105-08320

9010906309

main90109-06309

9016850040

main90168-50040

91511G0608

main91511-G0608

14 parts on this diagram · 1 diagram in section
