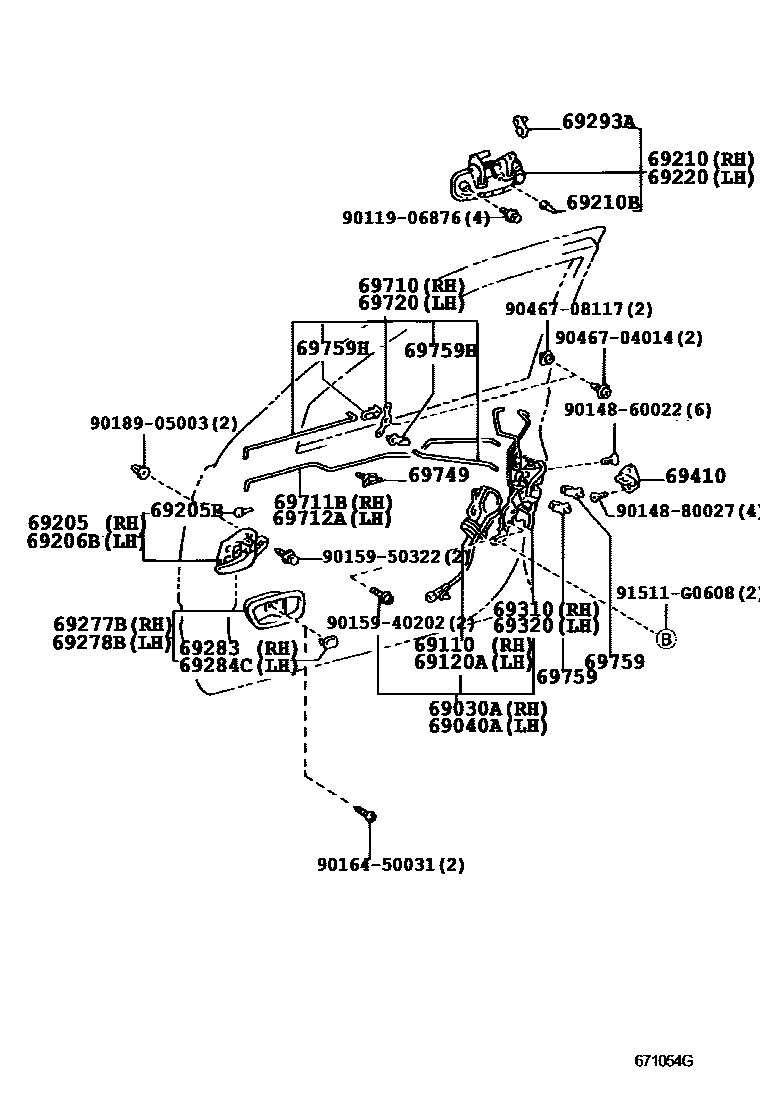

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME,199
SILVER ME.,1C0
BLACK ME,2DB
BLACK MC.,209
RED MC.,2DP
RED MC.,3M8
DK.MOSS GREEN MM,2DQ
DK.BLUE M.M.,8L3
DK.BLUE MC.,8P4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME,199
SILVER ME.,1C0
BLACK ME,2DB
BLACK MC.,209
RED MC.,3M8
RED MC.,2DP
DK.MOSS GREEN MM,2DQ
DK.BLUE M.M.,8L3
DK.BLUE MC.,8P4
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
9011906876
main90119-06876
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9046704014
main90467-04014
9046708117
main90467-08117
91511G0608
main91511-G0608
35 parts on this diagram · 1 diagram in section
