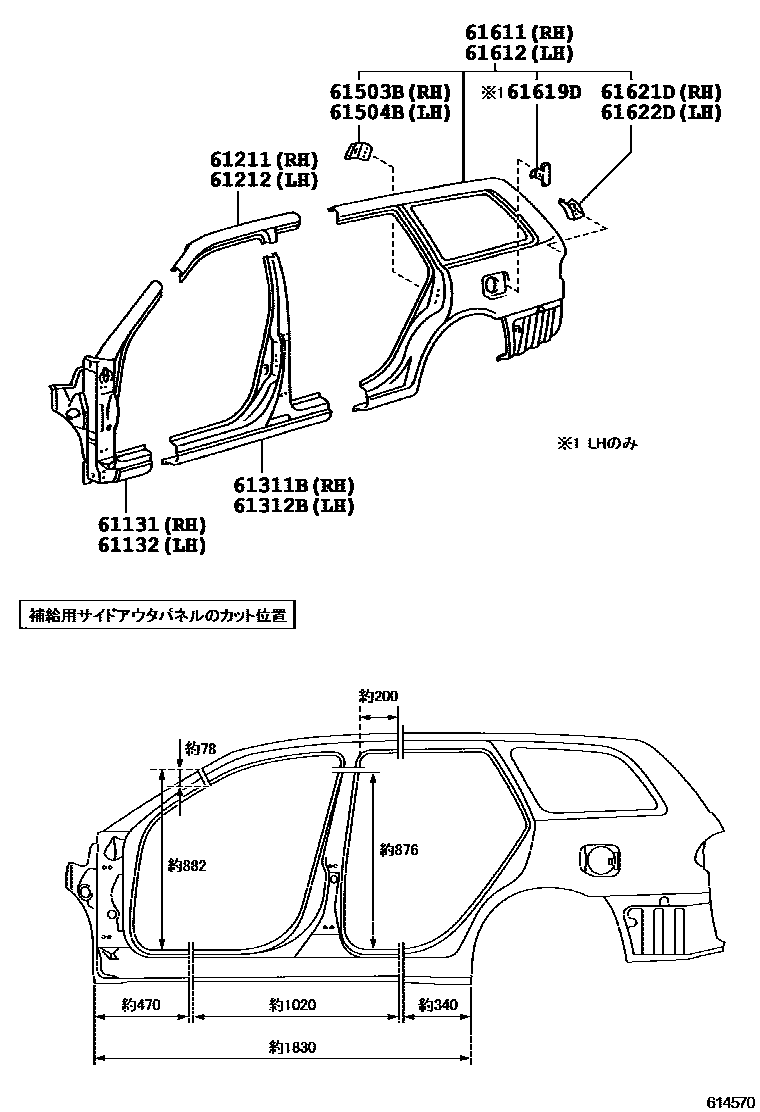

SIDE MEMBER

0001 1������� 0002 1�������

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-21060iAT211,CT216,ST21#..E,G199708

main61131-21070iST21#..G199805-199912

TWISTER *(T)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-21050iAT211,CT216,ST21#..E,G199708

main61132-21060iST21#..G199805-199912

TWISTER *(T)

61211RAIL, ROOF SIDE, OUTER RH

main61213-21010iAT211,CT216,ST21#199708

61212RAIL, ROOF SIDE, OUTER LH

main61214-21010iAT211,CT216,ST21#199708

61311BPILLAR, CENTER BODY, OUTER RH

main61311-21020iAT211,CT216,ST21#..E,G199708

main61311-21030iST215..E,G,GT;ST215..5F..GTT;AT211,CT216,ST210..E,G199708

61312BPILLAR, CENTER BODY, OUTER LH

main61312-21020iAT211,CT216,ST21#..E,G199708

main61312-21030iST21#..G199805-199912

TWISTER *(T)

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-21010iAT211,CT216,ST21#199708

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-21010iAT211,CT216,ST21#199708

61611PANEL, QUARTER, RH

main61601-21180iAT211,CT216,ST21#..E,G199708

main61601-21190iST215..E,G,GT;ST215..5F..GTT;AT211,CT216,ST210..E,G199708

61612PANEL, QUARTER, LH

main61602-21160iAT211,CT216,ST21#..E,G199708

main61602-21170iST21#..G199805-199912

TWISTER *(T)

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-21020iAT211,CT216,ST21#199708

61621DTROUGH, BACK DOOR OPENING, RH

main61621-21900iAT211,CT216,ST21#199708

61622DTROUGH, BACK DOOR OPENING, LH

main61622-21900iAT211,CT216,ST21#199708

13 parts on this diagram · 2 diagrams in section
